LZD25KD605 - Exmark 60" Lazer Z XS Diesel Zero-Turn Mower, Kubota Diesel (SN: 920000 - 999999) (2011) Electrical Assembly Parts Diagram

60" Lazer Z XS Diesel Zero-Turn Mower, Kubota Diesel

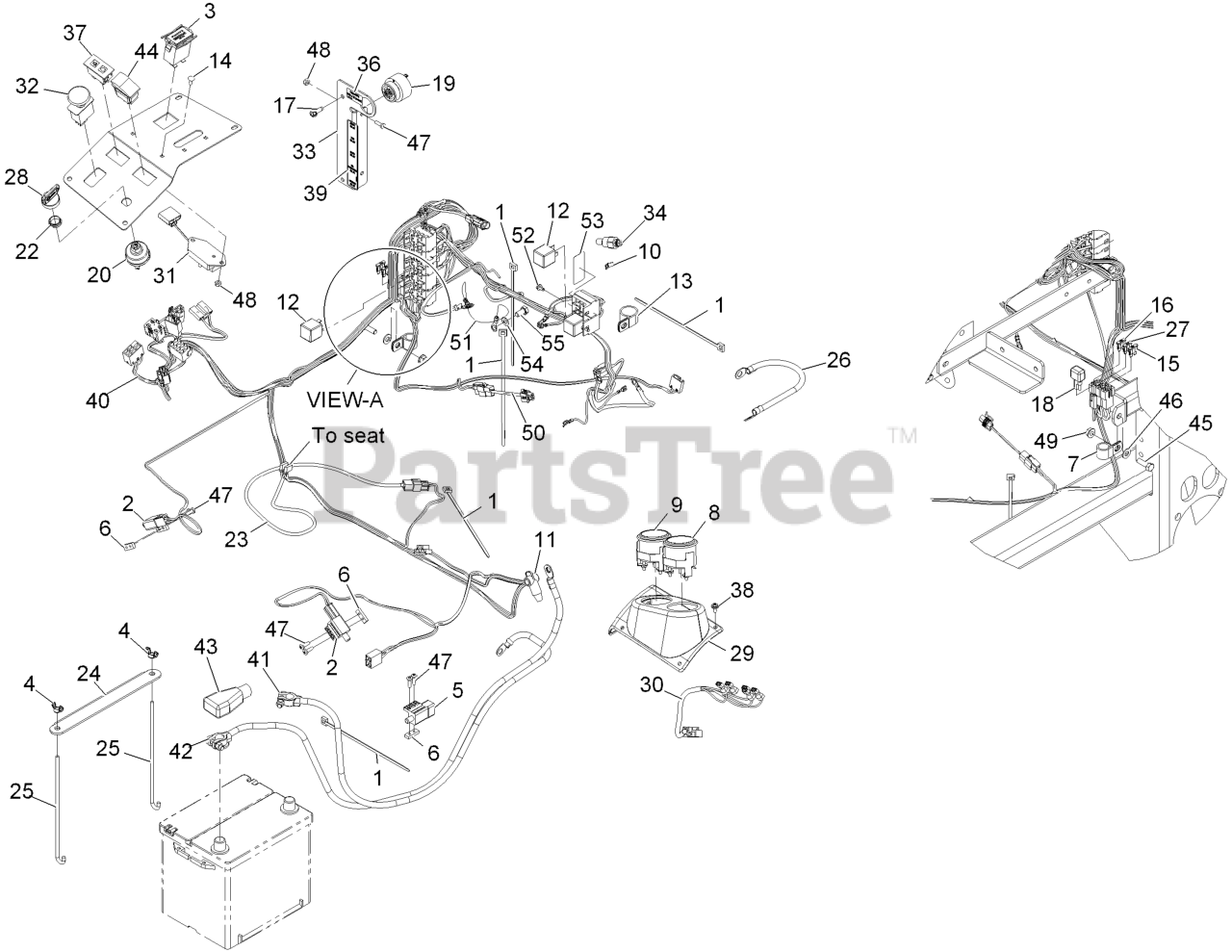

Electrical Assembly Parts Diagram

  • Title
1

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

2

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

3

Exmark 1-513374

METER-HOUR
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

4

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 15

0

5

$21.99

$

In Stock, Qty 19

0

6

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

7

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

8

Exmark 1-643021

GAUGE-TEMPERATURE

$142.99

$

In Stock, only 2 left!

0

9

Exmark 1-643037

GAUGE-VOLTMETER

$210.99

$

In Stock, only 1 left!

0

$2.99

$

In Stock, Qty 5

0

11

Exmark 103-1420

INSULATOR-STARTER

$6.99

$

Usually ships in 3-6 days

0

12

$23.99

$

In Stock, Qty 6

0

13

Exmark 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

0

14

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

15

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.49

$

In Stock, Qty 13

0

16

Exmark 1-816003

FUSE-BLADE TYPE, 30 AMP

$5.99

$

Usually ships in 3-6 days

0

17

Exmark 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

18

$21.99

$

In Stock, only 1 left!

0

19

Exmark 103-0205

ALARM-TONE, DUAL

$67.99

$

In Stock, only 2 left!

0

20

Exmark 103-0206

109-4736
(Superseded to 109-4736)

$42.99

$

In Stock, Qty 15

0

22

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.49

$

In Stock, Qty 6

0

23

Exmark 103-1227

HARNESS-WIRING, SEAT

$23.99

$

Usually ships in 3-6 days

0

24

Exmark 103-1311-03

HOLDDOWN-BATTERY

$27.99

$

Usually ships in 3-6 days

0

25

Exmark 103-1312

BOLT-HOLDDOWN

$6.49

$

Usually ships in 3-6 days

0

26

Exmark 103-1349

CABLE-ENGINE NEGATIVE

$18.99

$

Usually ships in 3-6 days

0

27

Exmark 103-1368

FUSE-40 AMP

$5.49

$

Usually ships in 3-6 days

0

28

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 7

0

29

Exmark 103-3684

BEZEL, GAGE XP LH TANK

$95.99

$

Usually ships in 3-6 days

0

30

Exmark 103-4339

HARNESS-GAUGE

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$61.99

$

Usually ships in 3-6 days

0

31

Exmark 103-5218

MODULE-DELAY, SEAT

$45.99

$

In Stock, Qty 6

0

32

Exmark 114-0279

SWITCH-PTO, ON-ON

$59.99

$

In Stock, only 2 left!

0

33

Exmark 109-3495

ASM,RELAY BRKT W/ DECALS

$60.99

$

Usually ships in 3-6 days

0

34

Exmark 103-7886

SENDER,TEMPERATURE

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$79.99

$

Usually ships in 3-6 days

0

36

$

$

Not available

37

Exmark 109-2488

LAMP-WARNING

$67.99

$

In Stock, only 1 left!

0

38

Exmark 109-2661

SCREW-PPH

$1.49

$

In Stock, Qty 11

0

39

Exmark 109-2951

DECAL,RELAY KUBOTA

$

$

Not available

40

Exmark 116-4977

HARNESS-WIRE

$740.99

$

Usually ships in 3-6 days

0

41

Exmark 109-3074

CABLE-BATTERY NEGATIVE

$66.99

$

Usually ships in 3-6 days

0

42

Exmark 109-7607

ASM,POSITIVE BATTERY CABL

Note: Includes insulators

$86.99

$

Usually ships in 3-6 days

0

43

Exmark 103-1340

INSULATOR-TERMINAL, BATTE

$5.49

$

Usually ships in 3-6 days

0

44

Exmark 110-0811

SWITCH-ROCKER

$70.99

$

Usually ships in 3-6 days

0

45

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

46

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

47

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

48

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

49

$1.49

$

In Stock, Qty 20+

0

50

Exmark 110-8808

HARNESS-WIRE

$39.99

$

Usually ships in 3-6 days

0

51

Exmark 116-5163

GROUND WIRE ASM

$8.99

$

Usually ships in 3-6 days

0

52

Exmark 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

53

Exmark 116-5074

DECAL-RELAY DIESEL

$

$

Not available

54

Exmark 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

55

Exmark 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0
