LZAS29KA724LP - Exmark 72" Lazer Z AS Zero-Turn Mower, 29hp Kawasaki Propane (SN: 850000 - 919999) (2010) LP Fuel Group Parts Diagram

72" Lazer Z AS Zero-Turn Mower, 29hp Kawasaki Propane

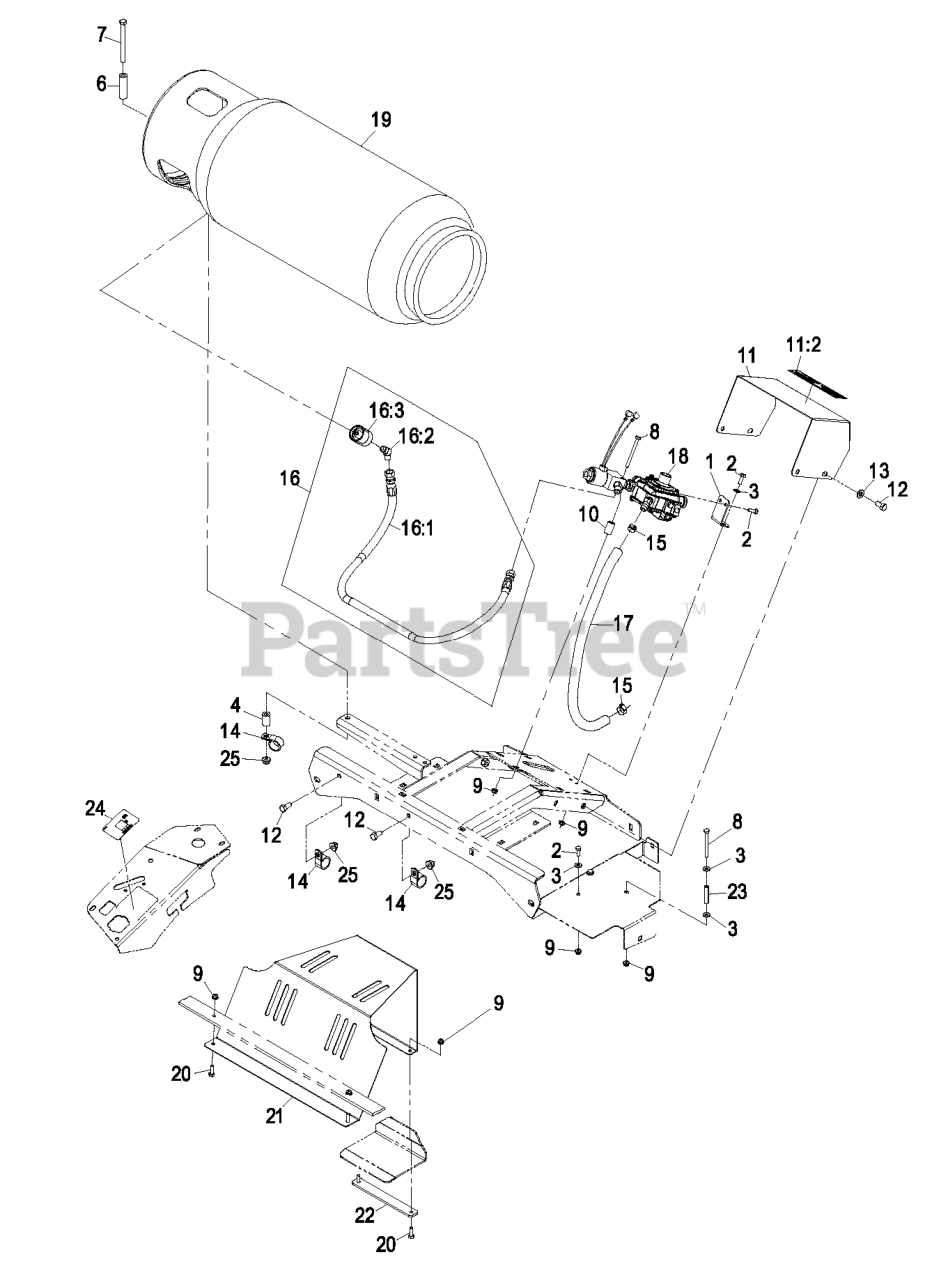

LP Fuel Group Parts Diagram

  • Title

1

Exmark 116-2571-03

BRACKET-REGULATOR

$22.99

$

Usually ships in 3-6 days

0

2

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Exmark 103-1361

SPACER-HYDRO CONTROL, LH

$7.99

$

Usually ships in 3-6 days

0

6

Exmark 1-633988

SPACER-ANCHOR, CLUTCH

$11.99

$

In Stock, only 1 left!

0

7

Exmark 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

8

Exmark 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

9

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Exmark 94-7564

SPACER

$9.49

$

Usually ships in 3-6 days

0

11

Exmark 116-2818

COVER ASM

$108.99

$

Usually ships in 3-6 days

0

11:2

Exmark 109-9906

DECAL-TANK REPLACEMENT

$18.99

$

In Stock, only 2 left!

0

12

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

13

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Exmark 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

0

15

Exmark 97-1271

CLAMP-HOSE

$3.99

$

In Stock, only 2 left!

0

16

Exmark 116-2821

LPG FUEL HOSE ASM

$

$

Not available

16:1

Exmark 116-2576

HOSE-LPG 38 IN.

$

$

Not available

16:2

Exmark 116-1055

ELBOW-45 DEG

$27.99

$

Usually ships in 3-6 days

0

16:3

Exmark 116-1073

CONNECTOR-LPG TANK, LH TH

$161.99

$

Usually ships in 3-6 days

0

17

Exmark 116-2568

HOSE-LP

$

$

Not available

18

Asm, Regulator Lp Solenoid

$

$

Not available

19

Exmark 116-1694

126-4507
(Superseded to 126-4507)

$648.99

$

In Stock, only 2 left!

0

20

Exmark 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Exmark 116-3358-03

SHEILD-FAN

$124.99

$

Usually ships in 3-6 days

0

22

Exmark 116-3359-03

STRAP

$21.99

$

Usually ships in 3-6 days

0

23

Exmark 56-7740

SPACER-SPLIT

$6.49

$

Usually ships in 3-6 days

0

24

Exmark 116-3446

DECAL-METER, HOUR

$60.99

$

Usually ships in 3-6 days

0

25

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Exmark 116-1457

WASHER,RUBBER LPG CONNECT

Note: Not shown

$

$

Not available

27

Exmark 116-1456

O-RING, LPG CONNECTOR (SV

Note: Not shown

$

$

Not available
