LZAS29KA724 - Exmark 72" Lazer Z AS Zero-Turn Mower, 29hp Kawasaki (SN: 850000 - 919999) (2010) Engine Group - 23-27HP Kohler Parts Diagram

72" Lazer Z AS Zero-Turn Mower, 29hp Kawasaki

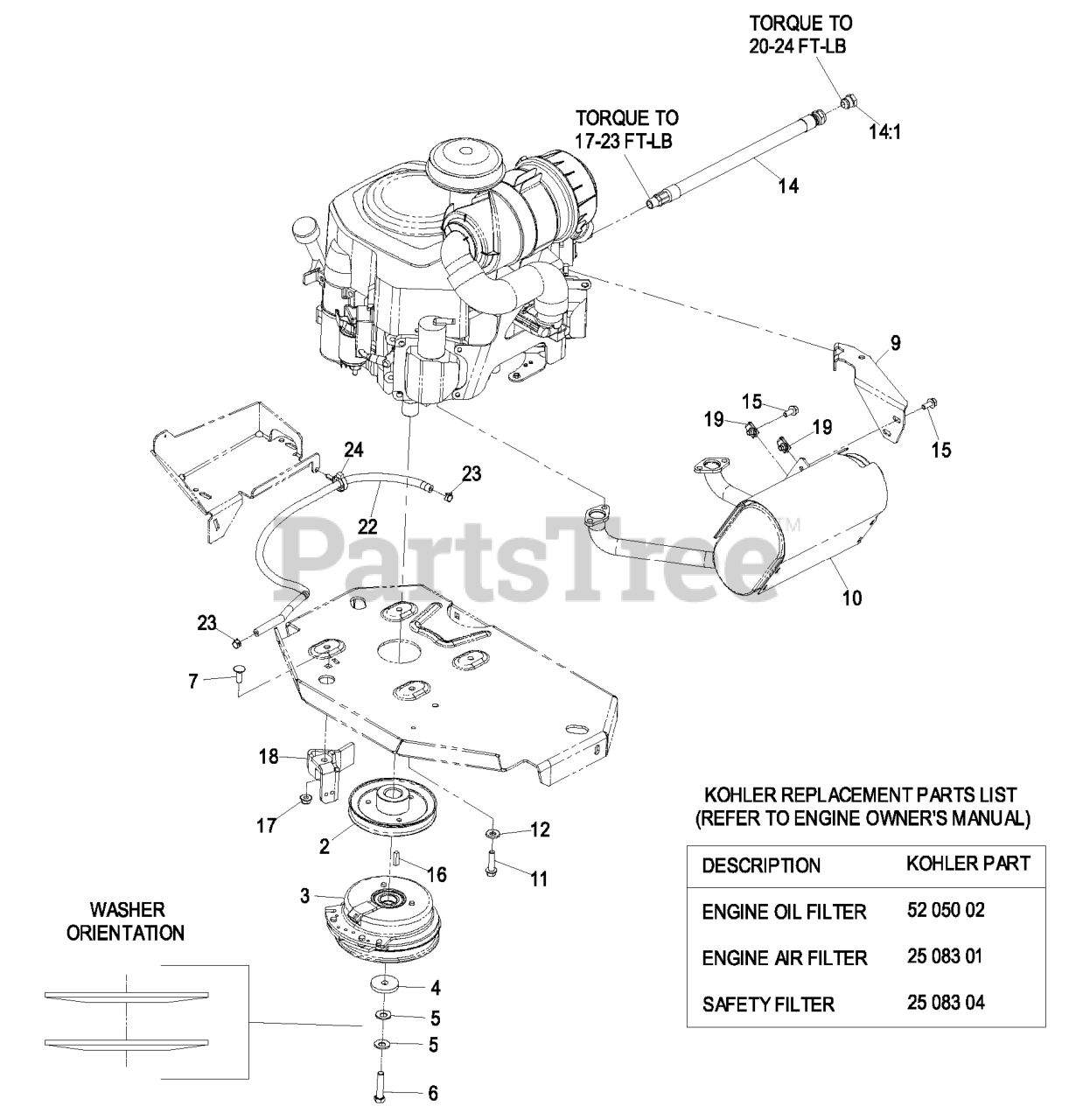

Engine Group - 23-27HP Kohler Parts Diagram

  • Title

2

Exmark 109-9905

SHEAVE
(Superseded to 142-9445)

$51.99

$

In Stock, only 1 left!

0

3

Exmark 116-1620

CLUTCH KIT

$359.99

$

In Stock, only 4 left!

0

4

Exmark 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 8

0

5

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

6

Exmark 109-9762

SCREW-HH W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt.

$5.49

$

In Stock, Qty 9

0

7

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

9

Exmark 116-2360

116-4297
(Superseded to 116-4297)

$75.99

$

In Stock, only 1 left!

0

10

Exmark 116-1713

126-8798
(Superseded to 126-8798)

$357.99

$

In Stock, only 2 left!

0

11

Exmark 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

12

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

14

Exmark 116-0013

116-5316
(Superseded to 116-5316)

Note: Use Teflon Pipe Sealant or equivalent on threads.

$54.99

$

In Stock, Qty 14

0

14:1

Exmark 109-1012

PLUG

$8.49

$

Usually ships in 3-6 days

0

15

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

16

Exmark 1-807259

KEY

$2.99

$

In Stock, only 2 left!

0

17

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Exmark 116-2612-01

CLUTCH-ANCHOR

$55.99

$

In Stock, only 2 left!

0

19

Exmark 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

22

Exmark 109-0286

HOSE-FUEL

$21.99

$

Usually ships in 3-6 days

0

23

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

24

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

27

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 14

0

28

Exmark 33113-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0
