LZAS29KA724 - Exmark 72" Lazer Z AS Zero-Turn Mower, 29hp Kawasaki (SN: 850000 - 919999) (2010) Caster Wheel Assembly - 48", 52", & 60" (Except LZAS26LKA604) Parts Diagram

72" Lazer Z AS Zero-Turn Mower, 29hp Kawasaki

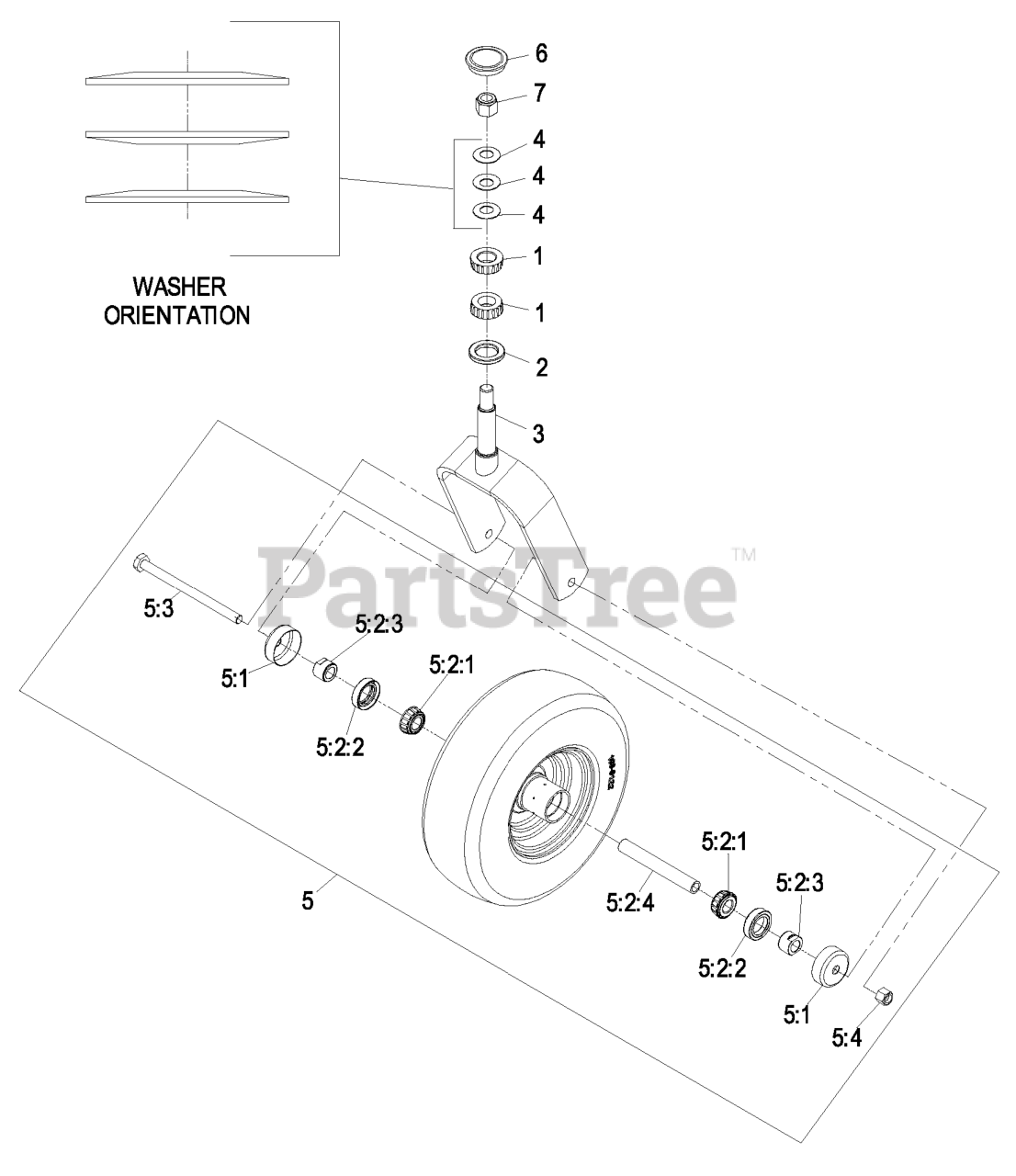

Caster Wheel Assembly - 48", 52", & 60" (Except LZAS26LKA604) Parts Diagram

  • Title

1

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

0

2

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0

3

Exmark 116-1092-01

116-8885
(Superseded to 116-8885)

$207.99

$

In Stock, only 1 left!

0

4

Exmark 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

5

Exmark 116-2082

ASM,WHEEL AND TIRE W/AXLE

$267.99

$

Usually ships in 3-6 days

0

5:1

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

5:2:1

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$21.99

$

In Stock, Qty 20+

0

5:2:2

Exmark 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 20+

0

5:2:3

Exmark 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on spacer nut, item 5:2:3.

$9.49

$

In Stock, Qty 20+

0

5:2:4

Exmark 103-3155

126-5360
(Superseded to 126-5360)

$15.99

$

In Stock, only 2 left!

0

5:3

Exmark 325-42

SCREW-HH

$14.99

$

In Stock, Qty 14

0

5:4

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

6

Exmark 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

7

Exmark 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0
