LZAS29KA724 - Exmark 72" Lazer Z AS Zero-Turn Mower, 29hp Kawasaki (SN: 850000 - 919999) (2010) 48" Deck Group Parts Diagram

72" Lazer Z AS Zero-Turn Mower, 29hp Kawasaki

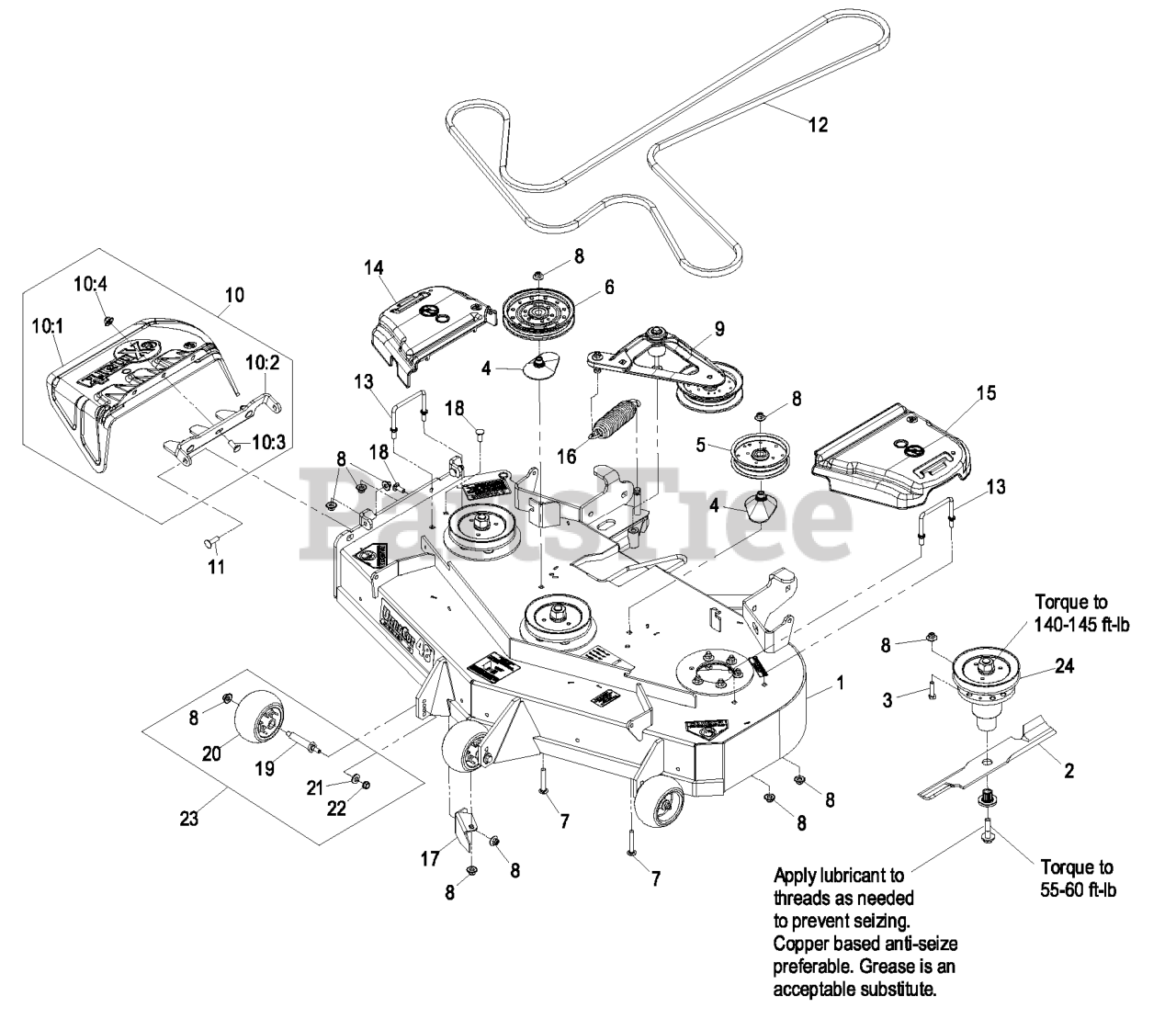

48" Deck Group Parts Diagram

  • Title

1

Exmark 109-9027

ASM,DECK W/DECALS 484

$3939.99

$

Usually ships in 3-6 days

0

2

Exmark 103-6401

103-6401-S
(Superseded to 103-6401-S)

$30.99

$

In Stock, Qty 9

0

Exmark 103-6391

103-6391-S
(Superseded to 103-6391-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK484.

$31.99

$

In Stock, Qty 20+

0

Exmark 103-6386

103-6386-S
(Superseded to 103-6386-S)

$30.99

$

In Stock, Qty 20+

0

Exmark 103-6381

103-6381-S
(Superseded to 103-6381-S)

$34.99

$

In Stock, Qty 20+

0

Exmark 103-6396

116-5177-S
(Superseded to 116-5177-S)

$31.99

$

In Stock, Qty 20+

0

3

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Exmark 109-2872

SPACER-PULLEY

$22.99

$

In Stock, only 2 left!

0

5

Exmark 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 6

0

6

Exmark 1-633109

126-7685
(Superseded to 126-7685)

$62.99

$

In Stock, Qty 7

0

7

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, only 3 left!

0

8

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

9

Exmark 109-2883

116-3755
(Superseded to 116-3755)

$254.99

$

Usually ships in 3-6 days

0

10

Exmark 109-7188

ASM,DISCHARGE CHUTE

$104.99

$

In Stock, only 2 left!

0

10:1

Exmark 109-2738

CHUTE,DISCHARGE

$74.99

$

In Stock, Qty 7

0

10:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$51.99

$

In Stock, only 1 left!

0

10:3

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

10:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

11

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

12

Exmark 109-8070

BELT
(Superseded to 109-8070-SL)

$148.99

$

Usually ships in 3-6 days

0

13

Exmark 109-6982

WIREFORM-COVER

$11.99

$

In Stock, only 4 left!

0

14

Exmark 109-6935

COVER-BELT, RH

$38.99

$

In Stock, only 1 left!

0

15

Exmark 109-6936

COVER-BELT, LH

$38.99

$

In Stock, only 1 left!

0

16

Exmark 116-0133

116-6317
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 7

0

17

Exmark 109-9010-01

BAFFLE,DISCHARGE

$

$

Not available

18

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

19

Exmark 99-2842

126-2928
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 5

0

20

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

21

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

22

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Exmark 103-4051

116-9981
(Superseded to 116-9981)

$52.99

$

In Stock, Qty 20+

0

24

Exmark 109-9017

KIT,CUTTER HOUSING 48

$

$

Not available

25

Exmark 109-9642

Asm, Deck Complete 484

$

$

Currently unavailable
