LZAS29KA724 - Exmark 72" Lazer Z AS Zero-Turn Mower, 29hp Kawasaki (SN: 790000 - 849999) (2009) Brake Handle Assembly - 117-0383 Parts Diagram

72" Lazer Z AS Zero-Turn Mower, 29hp Kawasaki

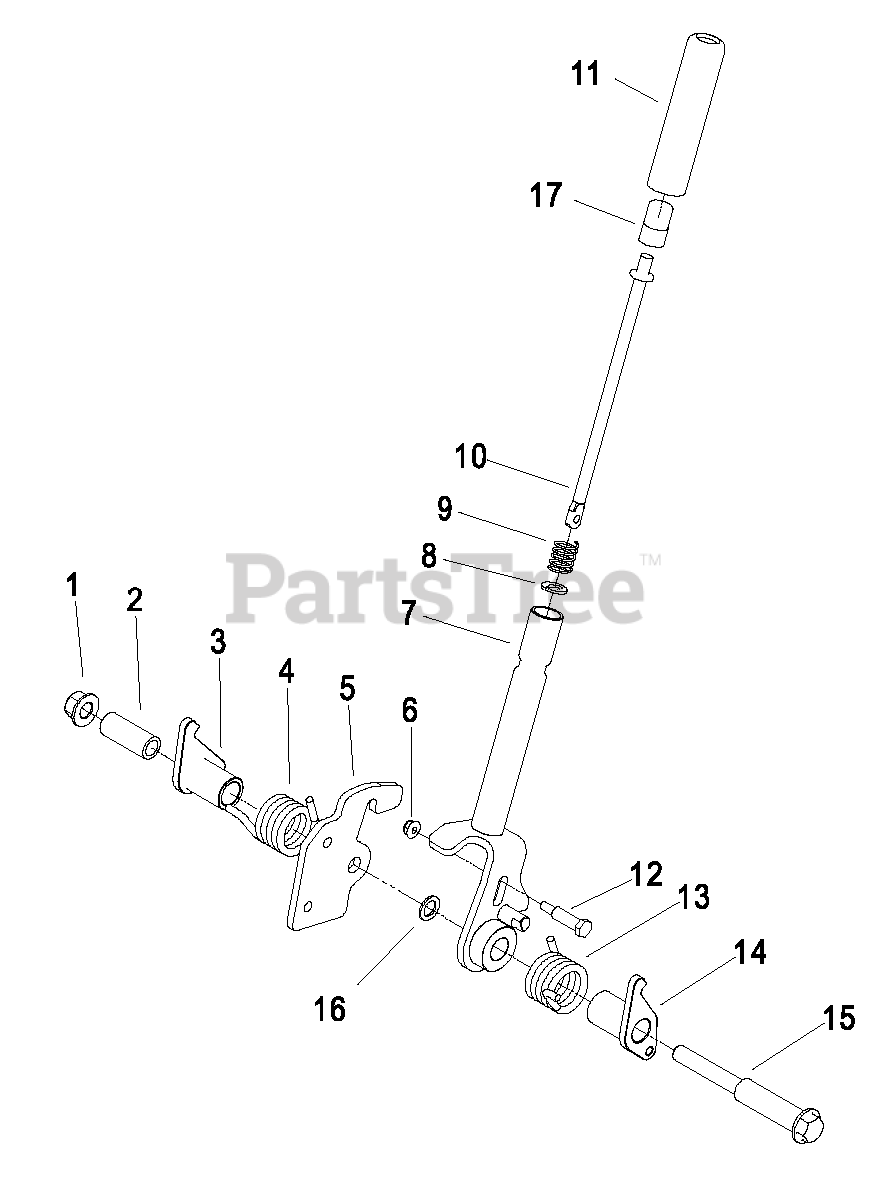

Brake Handle Assembly - 117-0383 Parts Diagram

  • Title

1

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

2

Exmark 117-0380

SPACER

$20.99

$

Usually ships in 3-6 days

0

3

Exmark 115-3580

ARM-BRAKE, LH

$29.99

$

Usually ships in 3-6 days

0

4

Exmark 117-0376

SPRING-TORSION, RH

$26.99

$

Usually ships in 3-6 days

0

5

Exmark 115-3574

PLATE-LATCH

$

$

Not available

6

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Exmark 117-0382-03

116-1876-03
(Superseded to 116-1876-03)

$107.99

$

Usually ships in 3-6 days

0

8

Exmark 114-1207

WASHER-SPECIAL

$2.99

$

In Stock, only 1 left!

0

9

Exmark 114-8187

SPRING-COMPRESSION

$5.49

$

In Stock, only 2 left!

0

10

Exmark 115-3581

ROD-RELEASE, BRAKE

$129.99

$

Usually ships in 3-6 days

0

11

Exmark 115-3592

GRIP

$12.99

$

In Stock, only 1 left!

0

12

Exmark 112-8387

BOLT-SHOULDER

$8.49

$

Usually ships in 3-6 days

0

13

Exmark 117-0375

SPRING-TORSION, LH

$27.99

$

Usually ships in 3-6 days

0

14

Exmark 115-3579

ARM-BRAKE, RH

$

$

Not available

15

Exmark 117-0379

BOLT-SHOULDER

$152.99

$

Usually ships in 3-6 days

0

16

Exmark 117-0378

3256-26
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

17

Exmark 115-2750

KNOB

$13.99

$

In Stock, only 2 left!

0
