LZAS29KA604LP - Exmark 60" Lazer Z AS Zero-Turn Mower, 29hp Kawasaki Propane (SN: 850000 - 919999) (2010) LZZ-LP - 60" Deck Group Parts Diagram

60" Lazer Z AS Zero-Turn Mower, 29hp Kawasaki Propane

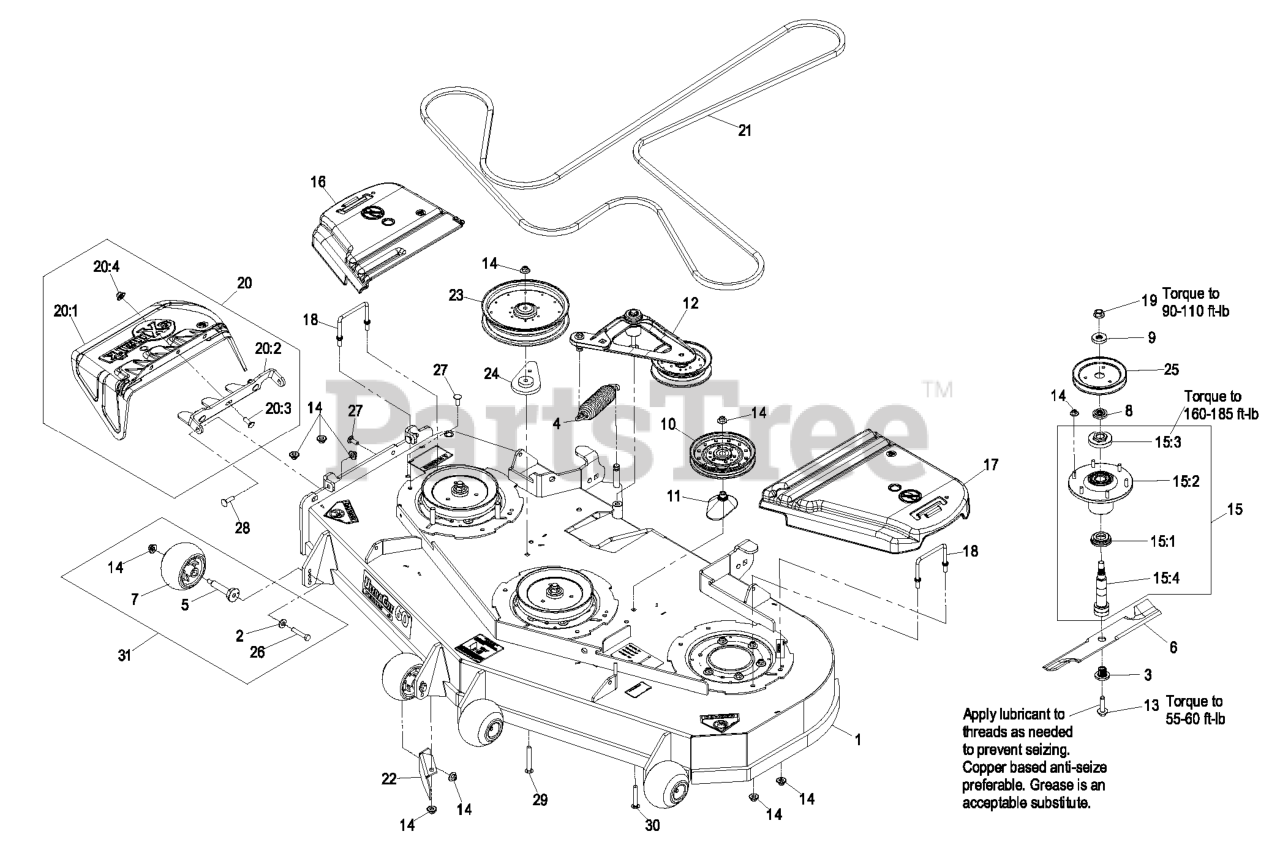

LZZ-LP - 60" Deck Group Parts Diagram

  • Title

1

Exmark 109-9148

116-4232
(Superseded to 116-4232)

$4215.99

$

Usually ships in 3-6 days

0

2

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

3

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

0

4

Exmark 116-0133

116-6317
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 20+

0

5

Exmark 109-9851

126-2928
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 20+

0

6

Exmark 103-6403

103-6403-S
(Superseded to 103-6403-S)

$31.99

$

In Stock, Qty 20+

0

Exmark 103-6393

103-6393-S
(Superseded to 103-6393-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK606.

$30.99

$

In Stock, Qty 20+

0

Exmark 103-6388

103-6388-S
(Superseded to 103-6388-S)

$37.99

$

In Stock, Qty 20+

0

Exmark 103-6383

103-6383-S
(Superseded to 103-6383-S)

$34.99

$

In Stock, Qty 20+

0

Exmark 103-6398

116-5174-S
(Superseded to 116-5174-S)

$30.99

$

In Stock, Qty 20+

0

7

Exmark 103-8415

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

0

8

Exmark 103-9522

SPACER,SPLINED STEPPED

$7.49

$

In Stock, Qty 11

0

9

Exmark 103-9523

SPACER,SPLINED

$8.49

$

In Stock, Qty 20+

0

10

Exmark 1-633109

126-7685
(Superseded to 126-7685)

$62.99

$

In Stock, Qty 20+

0

11

Exmark 109-2872

SPACER-PULLEY

$22.99

$

In Stock, Qty 20+

0

12

Exmark 109-2883

116-3755
(Superseded to 116-3755)

$267.99

$

In Stock, Qty 20+

0

13

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

14

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

15

Exmark 109-6917

ASM,SPINDLE HOUSING

$402.99

$

In Stock, Qty 12

0

15:1

Exmark 103-9504

GUARD,BOTTOM

$12.99

$

In Stock, only 2 left!

0

15:2

Exmark 103-9539

ASM,CUTTER HOUSING

$392.99

$

In Stock, only 2 left!

0

15:3

Exmark 109-0916

NUT, SPINDLE 7/8-14

$25.99

$

In Stock, only 1 left!

0

15:4

Exmark 109-6881

SPINDLE,DOUBLE SPLINE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles and bearings. DO NOT use a copper or nickel based anti-seize.

$143.99

$

In Stock, Qty 7

0

16

Exmark 116-0094

COVER-BELT, RH

$86.99

$

In Stock, Qty 15

0

17

Exmark 109-6938

COVER-BELT, LH

$96.99

$

In Stock, Qty 20+

0

18

Exmark 109-6982

WIREFORM-COVER

$11.99

$

In Stock, Qty 10

0

19

Exmark 109-7033

NUT-FLANGE, CENTERLOCK

$2.99

$

In Stock, Qty 20+

0

20

Exmark 109-7188

ASM,DISCHARGE CHUTE

$115.99

$

In Stock, only 3 left!

0

20:1

Exmark 109-2738

CHUTE,DISCHARGE

$81.99

$

In Stock, Qty 20+

0

20:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$54.99

$

In Stock, only 1 left!

0

20:3

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

20:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

21

Exmark 109-8073

BELT,V-5V-198.75
(Superseded to 135-5774-SL)

$169.99

$

In Stock, Qty 20+

0

22

Exmark 109-9915-01

BAFFLE,DISCHARGE 52/60

$37.99

$

Usually ships in 3-6 days

0

23

Exmark 109-8590

PULLEY-IDLER

$180.99

$

In Stock, Qty 6

0

24

Exmark 109-9416

SPACER-IDLER

$67.99

$

In Stock, only 1 left!

0

25

Exmark 109-9511

SHEAVE,BLADE DRIVE 7.25

$50.99

$

In Stock, Qty 5

0

26

Exmark 3211-46

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

27

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

28

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

29

Exmark 3231-42

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

30

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

31

Exmark 109-2098

116-9981
(Superseded to 116-9981)

$52.99

$

In Stock, Qty 20+

0

32

Exmark 109-9647

Asm, Deck Complete 606

$

$

Currently unavailable
