LZAS20KA484 - Exmark 48" Lazer Z AS Zero-Turn Mower, 20hp Kawasaki (SN: 850000 - 919999) (2010) Mainframe Group Parts Diagram

48" Lazer Z AS Zero-Turn Mower, 20hp Kawasaki

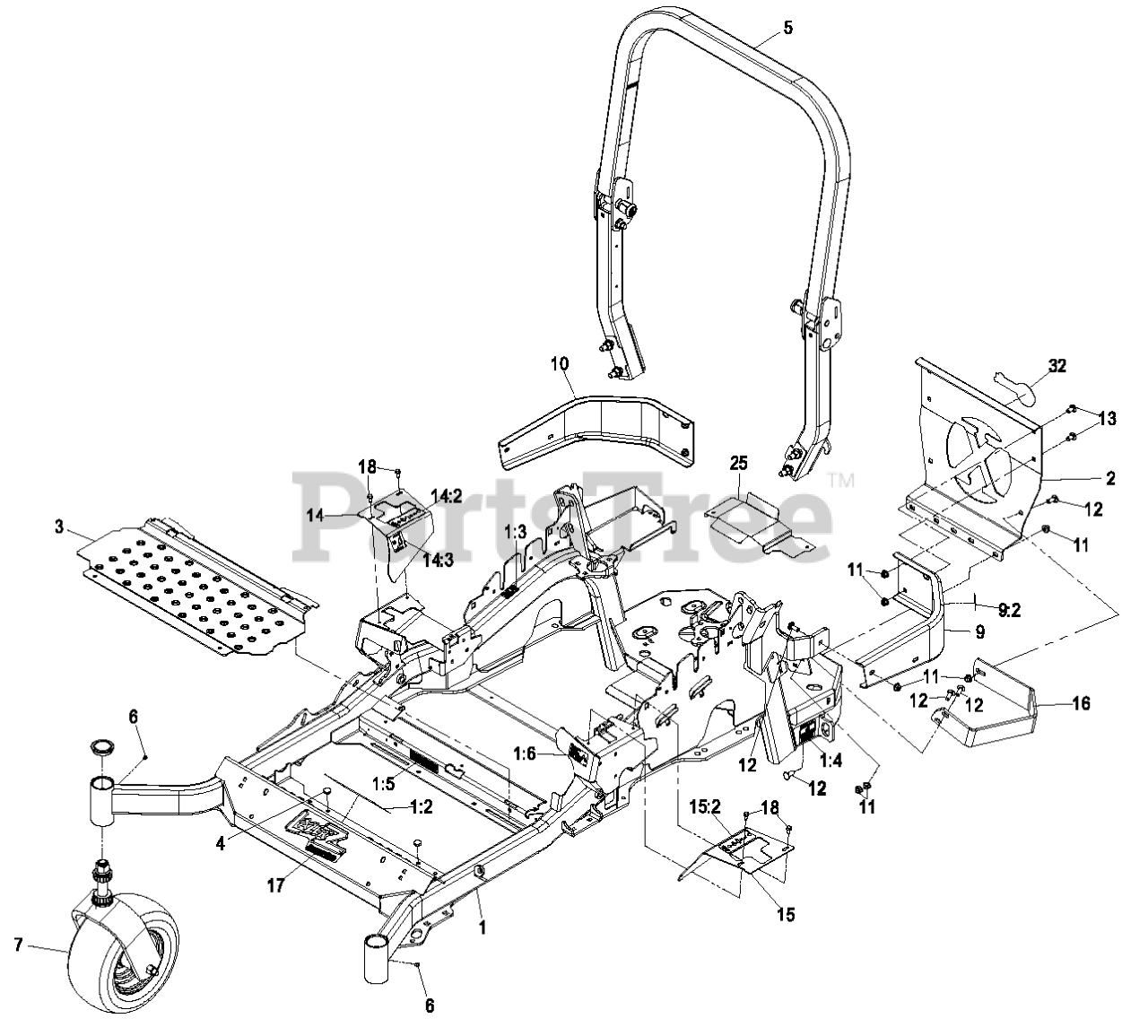

Mainframe Group Parts Diagram

  • Title

1

Exmark 116-2124

MAIN FRAME ASM

$2522.99

$

Usually ships in 3-6 days

0

Exmark 116-2126

MAIN FRAME ASM

$3759.99

$

Usually ships in 3-6 days

0

1:2

Exmark 107-2112

DECAL-WARNING

$20.99

$

In Stock, only 2 left!

0

1:3

Exmark 103-2076

DECAL-CAUTION

$6.49

$

In Stock, only 1 left!

0

1:4

Exmark 116-0205

DECAL-BELT DRIVE

$8.49

$

Usually ships in 3-6 days

0

1:5

Exmark 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0

1:6

Exmark 116-1654

DECAL-FUEL FILL

$5.49

$

Usually ships in 3-6 days

0

2

Exmark 109-8863-03

PLATE,REAR GUARD

$163.99

$

Usually ships in 3-6 days

0

3

Exmark 116-0024-01

116-8898-01
(Superseded to 116-8898-01)

$108.99

$

Usually ships in 3-6 days

0

4

Exmark 1-513658

BUMPER

$6.49

$

In Stock, Qty 13

0

5

Exmark 116-2882

ROPS ASM

$446.99

$

Usually ships in 3-6 days

0

6

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

7

Asm, Caster Wheel

Note: Deck Idler Assembly - 109-2883

$

$

Not available

9

Exmark 116-0180

LH BUMPER ASM

$144.99

$

Usually ships in 3-6 days

0

9:2

Exmark 103-2076

DECAL-CAUTION

$6.49

$

In Stock, only 1 left!

0

10

Exmark 116-0057-03

BUMPER-RH

$220.99

$

In Stock, only 1 left!

0

11

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

13

Exmark 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

14

Exmark 116-0579

116-5899
(Superseded to 116-5899)

$49.99

$

Usually ships in 3-6 days

0

14:2

Exmark 109-7232

DECAL-MOTION CONTROL

$5.49

$

In Stock, only 3 left!

0

14:3

Exmark 109-7929

116-5944
(Superseded to 116-5944)

$14.99

$

In Stock, Qty 14

0

15

Exmark 116-0580

LH MOTION CONTROL COVER ASM

$28.99

$

Usually ships in 3-6 days

0

15:2

Exmark 109-7232

DECAL-MOTION CONTROL

$5.49

$

In Stock, only 3 left!

0

16

Exmark 116-0043-03

126-2067-03
(Superseded to 126-2067-03)

$60.99

$

Usually ships in 3-6 days

0

17

Exmark 116-0026

DECAL,LAZER AS LOGO

$15.99

$

In Stock, only 2 left!

0

18

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 9

0

25

Exmark 116-2999-01

GUARD-BELT

$38.99

$

Usually ships in 3-6 days

0

32

Exmark 103-2883

DECAL

$10.99

$

In Stock, Qty 9
