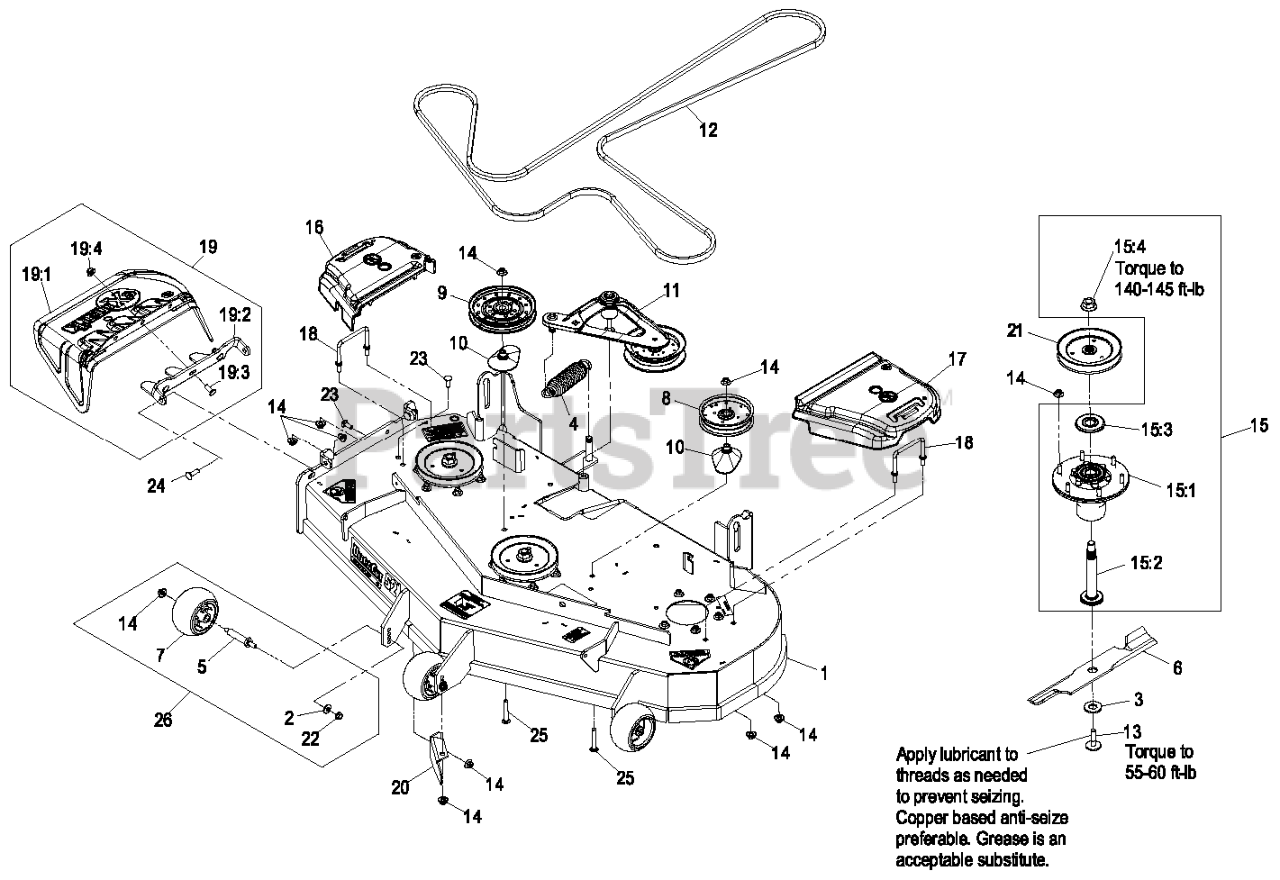

LZAS20KA484 - Exmark 48" Lazer Z AS Zero-Turn Mower, 20hp Kawasaki (SN: 850000 - 919999) (2010) 52" Deck Group Parts Diagram

48" Lazer Z AS Zero-Turn Mower, 20hp Kawasaki

52" Deck Group Parts Diagram

  • Title

1

Exmark 116-1984

ASM,524 DECK WITH DECALS

$3428.99

$

Usually ships in 3-6 days

0

2

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

3

Exmark 109-7429

WASHER-BLADE DRIVE

$5.49

$

In Stock, Qty 20+

0

4

Exmark 116-0133

116-6317
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 20+

0

5

Exmark 99-2842

126-2928
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 20+

0

6

Exmark 103-6402

103-6402-S
(Superseded to 103-6402-S)

$30.99

$

In Stock, Qty 20+

0

Exmark 103-6392

103-6392-S
(Superseded to 103-6392-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK524.

$30.99

$

In Stock, Qty 20+

0

Exmark 103-6387

103-6387-S
(Superseded to 103-6387-S)

$31.99

$

In Stock, Qty 11

0

Exmark 103-6382

103-6382-S
(Superseded to 103-6382-S)

$36.99

$

In Stock, only 4 left!

0

Exmark 103-6397

116-5175-S
(Superseded to 116-5175-S)

$30.99

$

In Stock, Qty 20+

0

7

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

0

8

Exmark 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 20+

0

10

Exmark 109-2872

SPACER-PULLEY

$22.99

$

In Stock, Qty 20+

0

11

Exmark 109-2883

116-3755
(Superseded to 116-3755)

$267.99

$

In Stock, Qty 20+

0

12

Exmark 116-1966

109-4994
(Superseded to 135-5776-SL)

$166.99

$

In Stock, Qty 16

0

13

Exmark 116-0005

BOLT-BLADE, SEM

$7.99

$

In Stock, Qty 20+

0

14

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

15

Exmark 116-1384

116-4915
(Superseded to 116-4915)

$274.99

$

Usually ships in 3-6 days

0

15:1

Exmark 116-0924

ASM,CUTTER HSG WITH BEARI

$197.99

$

In Stock, only 1 left!

0

15:2

Exmark 116-0381

SPINDLE,HEX PILOT 5.5" DE

$

$

Not available

15:3

Exmark 116-1286

GUARD,BEARING TOP .989

$5.49

$

In Stock, Qty 20+

0

15:4

Exmark 104-0753

NUT-FLANGE

$4.99

$

In Stock, only 2 left!

0

16

Exmark 109-6935

COVER-BELT, RH

$38.99

$

In Stock, Qty 7

0

17

Exmark 109-6936

COVER-BELT, LH

$38.99

$

In Stock, Qty 12

0

18

Exmark 109-6982

WIREFORM-COVER

$11.99

$

In Stock, Qty 10

0

19

Exmark 109-7188

ASM,DISCHARGE CHUTE

$115.99

$

In Stock, only 3 left!

0

19:1

Exmark 109-2738

CHUTE,DISCHARGE

$81.99

$

In Stock, Qty 20+

0

19:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$54.99

$

In Stock, only 1 left!

0

19:3

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

19:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

20

Exmark 109-9915-01

BAFFLE,DISCHARGE 52/60

$37.99

$

Usually ships in 3-6 days

0

21

Exmark 116-0675

SHEAVE,BLADE DRIVE 6.50

$94.99

$

In Stock, Qty 20+

0

22

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

24

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

25

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

26

Exmark 103-4051

116-9981
(Superseded to 116-9981)

$52.99

$

In Stock, Qty 20+

0

27

Exmark 116-1968

Asm, Complete Deck

$

$

Currently unavailable
