LZ34KA726 - Exmark 72" Lazer Z Zero-Turn Mower, 34hp Kawasaki (SN: 790000 - 849999) (2009) Engine Group - 29HP Kawasaki Parts Diagram

72" Lazer Z Zero-Turn Mower, 34hp Kawasaki

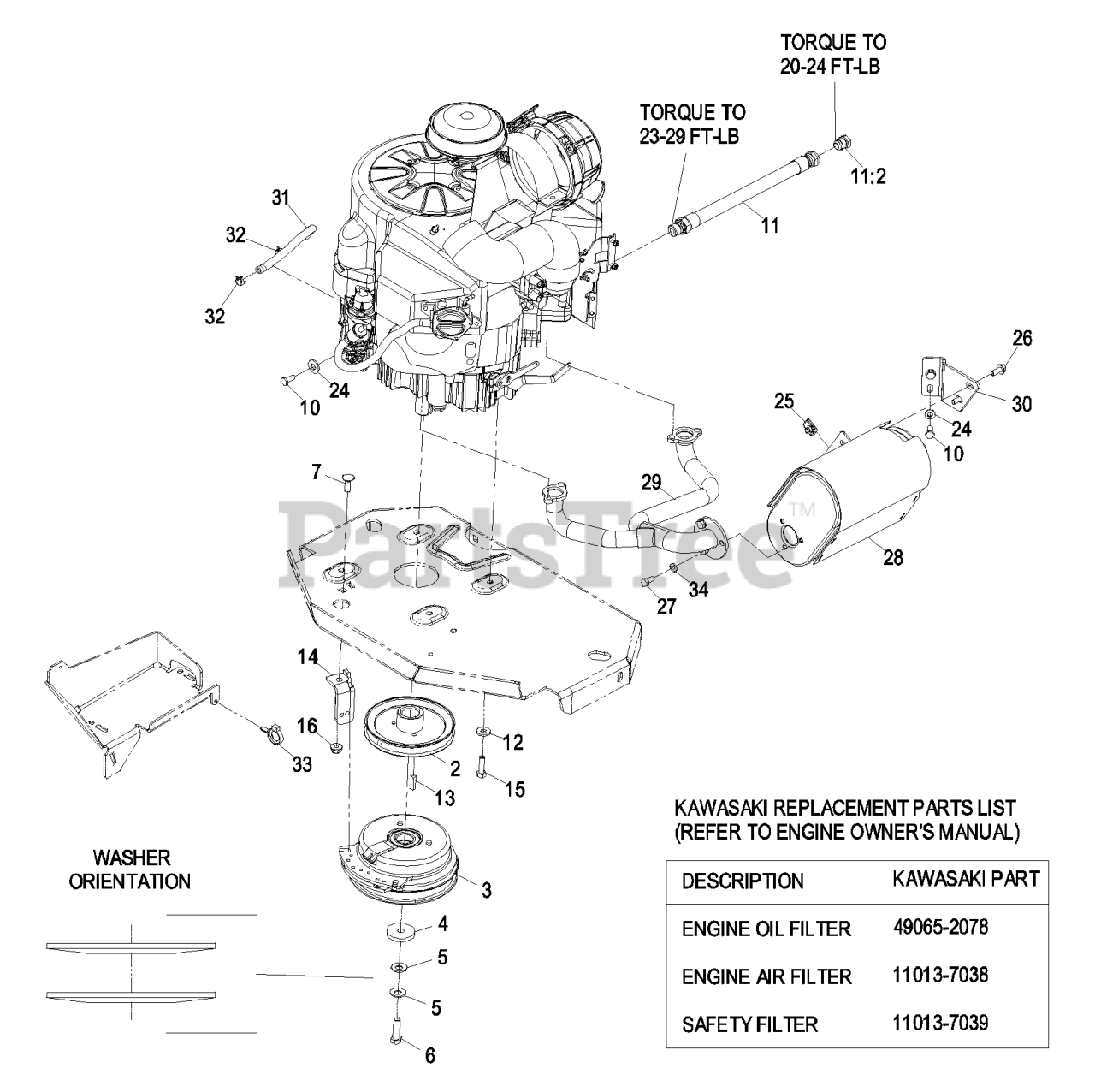

Engine Group - 29HP Kawasaki Parts Diagram

  • Title

2

Exmark 109-9905

SHEAVE
(Superseded to 142-9445)

$51.99

$

In Stock, Qty 19

0

3

Exmark 109-9282

116-1620
(Superseded to 116-1620)

$359.99

$

In Stock, only 3 left!

0

4

Exmark 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 8

0

5

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

6

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt.

$5.49

$

In Stock, Qty 6

0

7

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

10

Exmark 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

11

Exmark 109-4490

116-4924
(Superseded to 116-4924)

$37.99

$

In Stock, Qty 5

0

11:2

Exmark 109-1012

PLUG

$8.49

$

Usually ships in 3-6 days

0

12

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

13

Exmark 1-807259

KEY

$2.99

$

In Stock, only 2 left!

0

14

Exmark 109-8138-01

ANCHOR-CLUTCH

$49.99

$

Usually ships in 3-6 days

0

15

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

24

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

25

Exmark 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

26

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

27

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

28

Exmark 109-9280

MUFFLER-ENGINE

$281.99

$

In Stock, only 1 left!

0

29

Exmark 109-9250

116-1712
(Superseded to 135-7562)

$391.99

$

In Stock, Qty 15

0

30

Exmark 116-0203

BRACKET-MUFFLER

$34.99

$

Usually ships in 3-6 days

0

31

Exmark 109-0296

HOSE-FUEL

$10.99

$

In Stock, only 4 left!

0

32

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

33

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

34

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0
