LZ31DG724 - Exmark 72" Lazer Z Zero-Turn Mower, 31hp Daihatsu (SN: 260000 - 319999) (2001) Upper Frame Group Parts Diagram
72" Lazer Z Zero-Turn Mower, 31hp Daihatsu

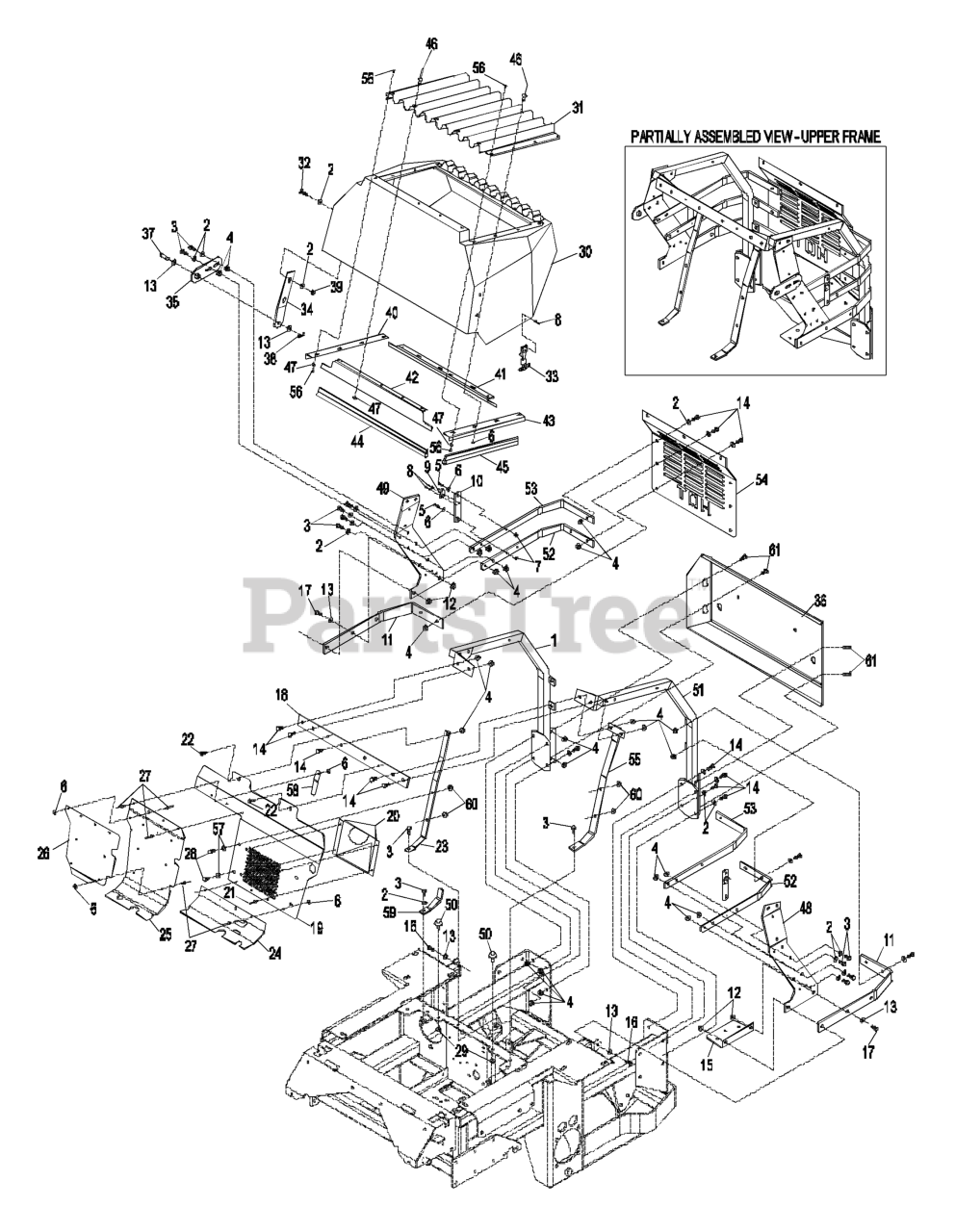

Upper Frame Group Parts Diagram
Exmark 103-0146-03
$
$
Not available
Exmark 3256-23
$2.49
$
Exmark 322-3
$0.99
$
Exmark 32128-20
$1.49
$
$1.49
$
Exmark 3256-14
$0.99
$
Exmark 3296-2
$2.49
$
$2.99
$
$11.99
$
Exmark 1-633877-03
$
$
Not available
$
$
Not available
Exmark 3290-357
$0.99
$
Exmark 3256-24
$0.99
$
Exmark 322-5
$0.99
$
Exmark 103-1516-03
$22.99
$
Exmark 323-7
$2.99
$
Exmark 323-6
$2.49
$
Exmark 103-0963-03
$
$
Not available
$
$
Not available
Exmark 103-0964-03
$
$
Not available
Exmark 3269-3
$0.99
$
Exmark 49-2040
$2.49
$
Exmark 103-0945-03
$
$
Not available
Exmark 103-1001
$
$
Not available
$
$
Not available
$
$
Not available
Exmark 1-803035
$1.49
$
Exmark 321-4
$1.49
$
Exmark 3296-42
$0.99
$
Exmark 1-633857
$
$
Not available
Exmark 103-1044
Note: Hood only comes with black logo decal, side decals need to be ordered separately.
$
$
Not available
Exmark 1-633864-03
$274.99
$
Exmark 322-4
$0.99
$
Exmark 1-643188
$22.99
$
Exmark 1-633885-03
$
$
Not available
Exmark 1-632986-03
$
$
Not available
Exmark 103-1479-03
$229.99
$
Exmark 1-808285
$3.49
$
Exmark 1-806003
$1.49
$
Exmark 3296-29
$2.49
$
Exmark 1-643106-03
$29.99
$
Exmark 1-643108-03
$39.99
$
Exmark 1-643107-03
$47.99
$
Exmark 1-643105-03
$29.99
$
Exmark 1-643187
$22.99
$
Exmark 1-643186
$26.99
$
Exmark 1-803072
$2.99
$
Exmark 1-303435
$1.49
$
Exmark 103-0954-03
$
$
Not available
Exmark 103-0955-03
$
$
Not available
Exmark 1-523420
$14.99
$
Exmark 103-0145-03
$
$
Not available
Exmark 103-0942-03
$
$
Not available
Exmark 103-0943-03
$
$
Not available
Exmark 103-0939-03
$
$
Not available
Exmark 103-0094-03
$
$
Not available
Exmark 103-1363
$2.99
$
Exmark 3256-22
$0.99
$
Exmark 1-523285
$12.99
$
Exmark 103-1458-03
$
$
Not available
Exmark 32128-33
$0.99
$
Exmark 3234-47
$2.99
$
$
$
Not available
