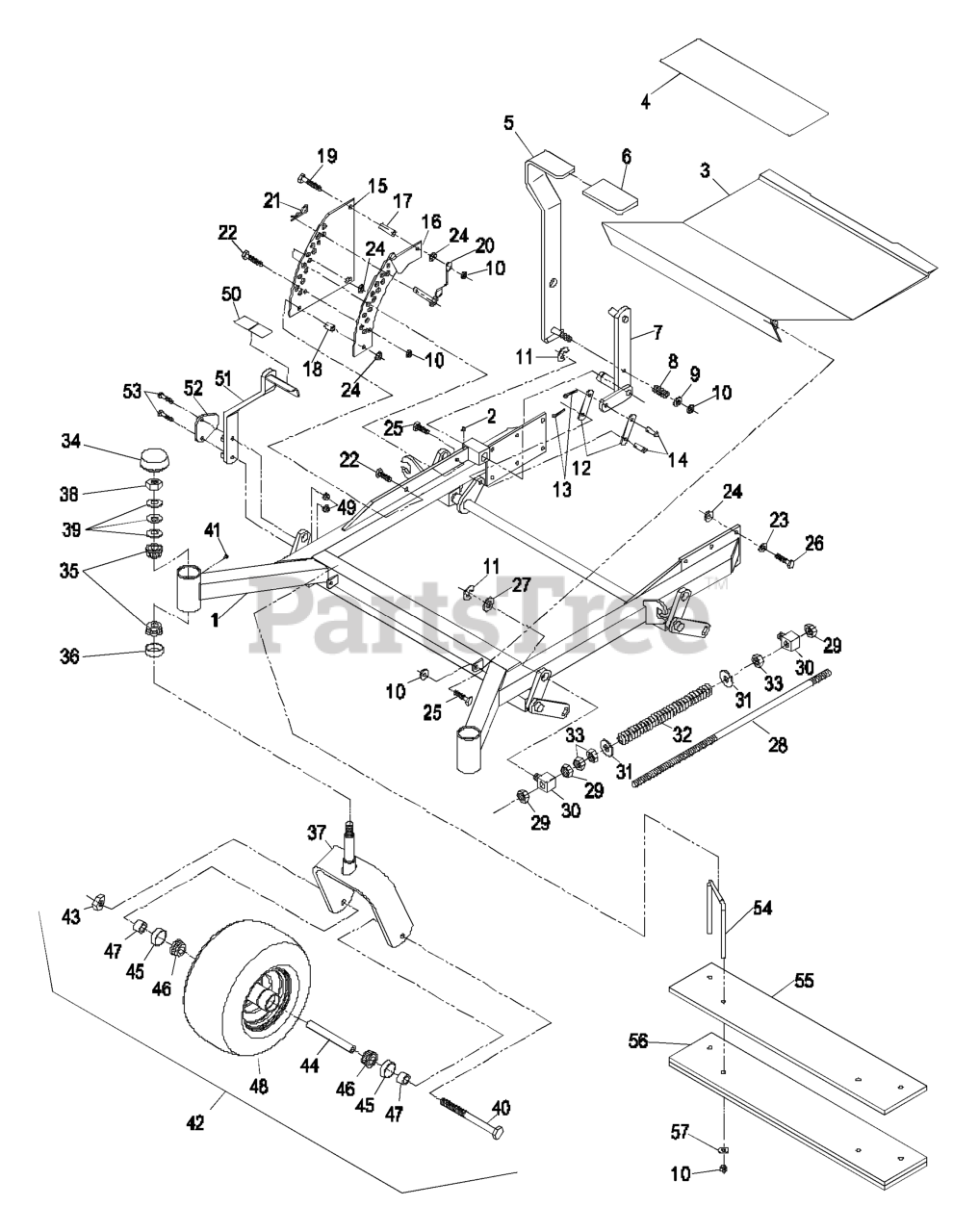

LZ31DG724 - Exmark 72" Lazer Z Zero-Turn Mower, 31hp Daihatsu (SN: 260000 - 319999) (2001) Front Frame Group Parts Diagram

72" Lazer Z Zero-Turn Mower, 31hp Daihatsu

Front Frame Group Parts Diagram

  • Title

1

Exmark 103-1438-01

103-3660
(Superseded to 103-3660)

$2972.99

$

Usually ships in 3-6 days

0

Exmark 1-642046-01

103-3661
(Superseded to 103-3661)

$

$

Not available

2

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

3

Exmark 103-1490-01

103-1502
(Superseded to 103-1502)

$

$

Not available

4

Exmark 1-633553

PAD-ANTISKID

$13.99

$

In Stock, only 4 left!

0

5

Exmark 1-634312

103-2084
(Superseded to 103-2084)

$77.99

$

Usually ships in 3-6 days

0

Exmark 1-632324-03

103-2084
(Superseded to 103-2084)

$77.99

$

Usually ships in 3-6 days

0

6

Exmark 1-633295

GRIP-LEVER, LIFT

$7.99

$

In Stock, Qty 12

0

7

Exmark 103-1500-03

109-0632
(Superseded to 109-0632)

$106.99

$

Usually ships in 3-6 days

0

8

Exmark 1-633325

SPRING-COMPRESSION

$5.49

$

Usually ships in 3-6 days

0

9

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

12

Exmark 1-633068

ARM-LIFT, DECK

$11.99

$

Usually ships in 3-6 days

0

13

Exmark 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

14

Exmark 1-808284

PIN-CLEVIS

$3.49

$

In Stock, Qty 20+

0

15

Exmark 1-633889-01

PLATE-LIFT, DECK

$

$

Not available

16

Exmark 1-632899-01

PLATE-LIFT, DECK

$

$

Not available

17

Exmark 1-633082

BUSHING-LEVER, LIFT

$11.99

$

Usually ships in 3-6 days

0

18

Exmark 1-633080

BUSHING-LEVER, LIFT

$10.99

$

Usually ships in 3-6 days

0

19

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

20

Exmark 1-633097

PIN-HITCH (W/LANYARD)

$24.99

$

In Stock, only 2 left!

0

21

Exmark 1-806005

PIN-COTTER

Note: (Serv only)

$2.99

$

In Stock, Qty 20+

0

22

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

24

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

25

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

26

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

27

Exmark 3256-29

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

28

Exmark 1-633096

ROD-LIFT, DECK

$23.99

$

In Stock, Qty 8

0

29

Exmark 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

30

Exmark 1-633441

SWIVEL-DECK MOUNT, REAR

$27.99

$

Usually ships in 3-6 days

0

31

Exmark 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

32

Exmark 1-643015

SPRING-SUPPORT, DECK

$42.99

$

Usually ships in 3-6 days

0

33

Exmark 3218-6

NUT-JAM

$6.99

$

In Stock, Qty 20+

0

34

Exmark 1-543513

CAP-GREASE

$8.49

$

In Stock, Qty 20+

0

35

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

0

Exmark 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 15

0

36

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0

37

Exmark 103-1474-01

116-8888
(Superseded to 116-8888)

$185.99

$

In Stock, Qty 20+

0

38

Exmark 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0

39

Exmark 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

40

Exmark 325-39

SCREW-HH

$18.99

$

In Stock, Qty 18

0

41

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

42

Exmark 103-0069

103-5188
(Superseded to 103-5188)

$232.99

$

In Stock, Qty 7

0

43

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

44

Exmark 1-633959

SPACER-CASTER, FRONT

$18.99

$

In Stock, only 2 left!

0

45

Exmark 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 20+

0

46

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$21.99

$

In Stock, Qty 20+

0

47

Exmark 1-633581

SPACER-BEARING

$4.99

$

In Stock, Qty 20+

0

48

Exmark 103-0065

117-0361
(Superseded to 117-0361)

$232.99

$

In Stock, Qty 7

0

Exmark 1-523009

TIRE

$113.99

$

Usually ships in 3-6 days

0

Exmark 103-0071

103-5188
(Superseded to 103-5188)

$232.99

$

In Stock, Qty 7

0

Exmark 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 12

0

49

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

50

Exmark 1-543161

DISCONTINUED

$

$

Not available

51

Exmark 103-0147-01

LEVER,DECK LIFT WLD

$174.99

$

In Stock, only 2 left!

0

52

Exmark 1-643220-01

STRAP

$48.99

$

In Stock, only 1 left!

0

53

Exmark 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

54

Exmark 103-0221

U-BOLT, ZC

$16.99

$

Usually ships in 3-6 days

0

55

Exmark 100-2333-01

103-0885-01
(Superseded to 103-0885-01)

Note: (60")

$

$

Not available

Exmark 103-0885-01

WEIGHT,FORMED BAR

Note: (72")

$

$

Not available

56

Exmark 99-4646-01

WEIGHT BAR ASM

Note: (60" only)

$368.99

$

Usually ships in 3-6 days

0

57

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

Exmark 850337

Exmark Red Touch Up Spray Paint

$

$

Currently unavailable
