LZ31DG724 - Exmark 72" Lazer Z Zero-Turn Mower, 31hp Daihatsu (SN: 260000 - 319999) (2001) 27 HP Diesel Fuel Group Parts Diagram

72" Lazer Z Zero-Turn Mower, 31hp Daihatsu

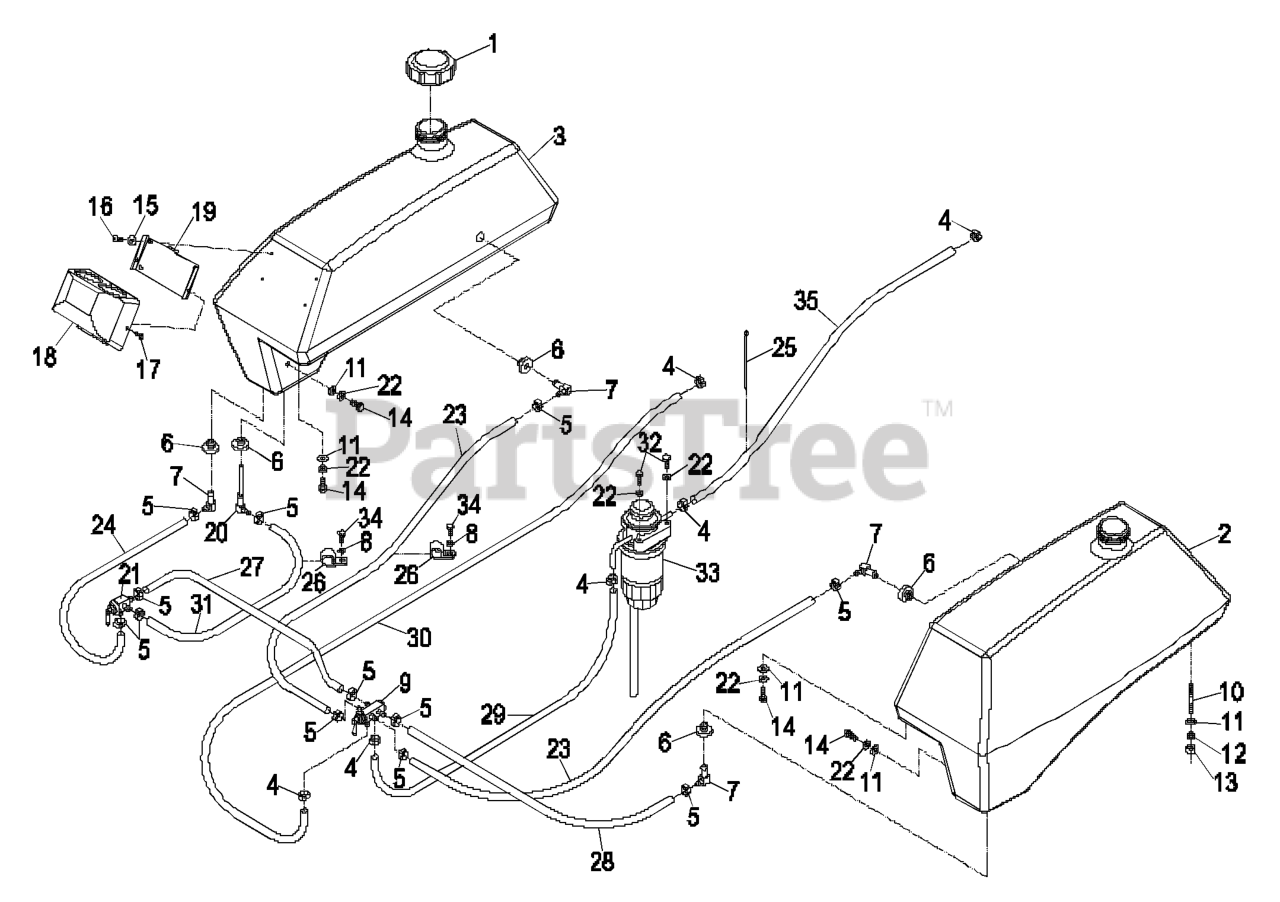

27 HP Diesel Fuel Group Parts Diagram

  • Title
1

Exmark 103-0987

CAP,DIESEL FUEL TANK

$

$

Not available

2

Exmark 1-643243

103-1088
(Superseded to 103-1088)

$

$

Not available

3

Exmark 103-0982

103-2046
(Superseded to 103-2046)

$604.99

$

Usually ships in 3-6 days

0

4

Exmark 1-643277

CLAMP-HOSE, FUEL

Note: Clamps require special pliers P/N 1-643394 (Oetiker P/N 14100118 or Kohler P/N 2445505) for installation.

$4.99

$

In Stock, only 3 left!

0

5

Exmark 1-643293

CLAMP-HOSE, FUEL

Note: Clamps require special pliers P/N 1-643394 (Oetiker P/N 14100118 or Kohler P/N 2445505) for installation.

$6.49

$

In Stock, Qty 6

0

6

Exmark 1-513645

46-6560
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

7

Exmark 1-643172

ELBOW-90 DEG

$11.99

$

In Stock, only 2 left!

0

8

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 14

0

9

Exmark 1-643234

VALVE-FUEL, DUAL FLOW

$201.99

$

In Stock, only 4 left!

0

10

Exmark 1-633023

STUD

Note: Use Prolock, Retaining type (Part No. 1-840023), .5cc tube on stud threads going into the tank.

$6.49

$

In Stock, only 2 left!

0

11

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

12

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, Qty 6

0

13

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

14

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

16

Exmark 3290-500

SCREW-PPH

Note: Snug fit only on slotted holes, Do Not Overtighten, tank must be able to expand.

$1.49

$

In Stock, Qty 20+

0

17

$

$

Not available

18

Exmark 1-643013

COVER,GAUGES

$69.99

$

In Stock, only 1 left!

0

19

Exmark 1-643014-03

BRACKET,GAUGE MOUNT

$

$

Not available

20

Exmark 103-1378

DISCONTINUED (EXMARK)

$

$

Not available

21

Exmark 103-1379

VALVE,FUEL DIVERTER 90 DE

$120.99

$

Usually ships in 3-6 days

0

22

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 7

0

23

Exmark 1-633348

109-0307
(Superseded to 109-0307)

$21.99

$

In Stock, only 1 left!

0

24

Exmark 1-543456

HOSE-FUEL

$12.99

$

In Stock, only 2 left!

0

25

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

26

Exmark 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

27

Exmark 1-303306

DISCONTINUED

$

$

Not available

28

Exmark 1-303472

FUEL LINE,19.0

$

$

Not available

29

Exmark 103-1335

HOSE-FUEL

$

$

Not available

30

Exmark 103-1428

HOSE-OVERFLOW

$28.99

$

Usually ships in 3-6 days

0

31

Exmark 1-543526

109-0302
(Superseded to 109-0302)

$12.99

$

In Stock, only 2 left!

0

32

Exmark 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

33

Fuel Filter

Note: Briggs & Stratton P/N 820311; Refer to Engine Owner's Manual.

$

$

Not available

34

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

35

Exmark 103-1693

109-0277
(Superseded to 109-0277)

$28.99

$

Usually ships in 3-6 days

0

Exmark 1-840023

PRO-LOCK-RETAINING 1

$21.99

$

In Stock, only 1 left!

0

Exmark 1-643394

DISCONTINUED

$

$

Not available
