LZ31DG604 - Exmark 60" Lazer Z Zero-Turn Mower, 31hp Daihatsu (SN: 320000 - 369999) (2002) Motion Control Levers Parts Diagram

60" Lazer Z Zero-Turn Mower, 31hp Daihatsu

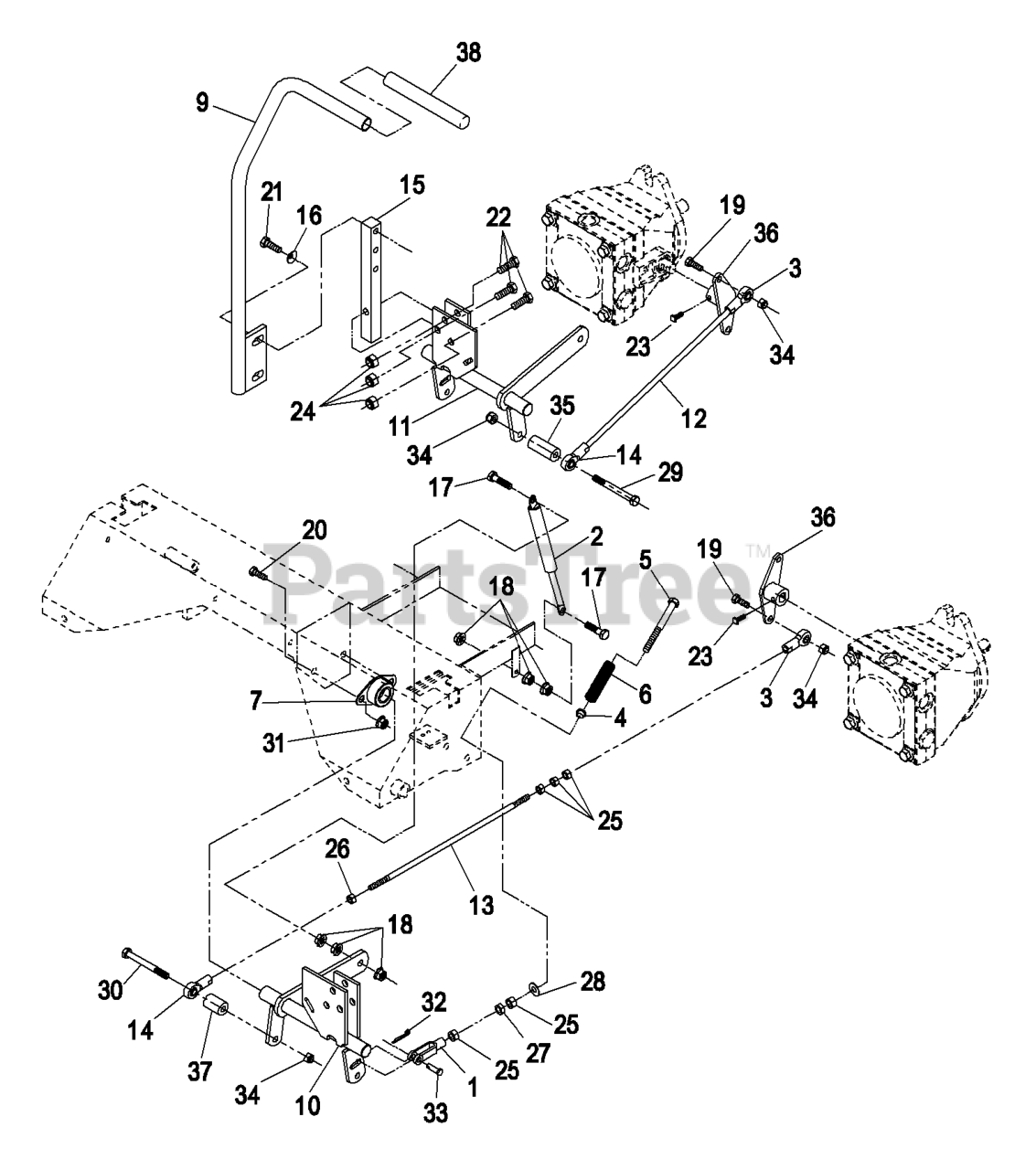

Motion Control Levers Parts Diagram

  • Title

1

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

2

Exmark 1-523027

109-2339
(Superseded to 109-2339)

$76.99

$

In Stock, only 3 left!

0

3

Exmark 1-543017

BALLJOINT-RH

$20.99

$

In Stock, only 4 left!

0

4

Exmark 1-603735

BUSHING-FLANGED

$6.49

$

In Stock, only 4 left!

0

5

Exmark 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

In Stock, only 2 left!

0

6

Exmark 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 17

0

7

Exmark 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

8

Exmark 103-0631

LH LEVER ASM

Note: Not Illustrated

$95.99

$

Usually ships in 3-6 days

0

Exmark 103-0409-03

103-0631
(Superseded to 103-0631)

$95.99

$

Usually ships in 3-6 days

0

9

Exmark 103-0632

RH LEVER ASM

$95.99

$

Usually ships in 3-6 days

0

Exmark 103-0410-03

103-0632
(Superseded to 103-0632)

$95.99

$

Usually ships in 3-6 days

0

10

Exmark 103-0062

109-3979
(Superseded to 109-3979)

$

$

Not available

11

Exmark 103-0199

109-3980
(Superseded to 109-3980)

$142.99

$

Usually ships in 3-6 days

0

12

Exmark 103-0918

103-5182
(Superseded to 103-5182)

$42.99

$

Usually ships in 3-6 days

0

13

Exmark 103-0058

103-3065
(Superseded to 103-3065)

$8.99

$

Usually ships in 3-6 days

0

14

Exmark 1-633152

BALLJOINT-LH

$20.99

$

In Stock, only 3 left!

0

15

Exmark 103-0407

ARM-SHAFT, CONTROL

$30.99

$

In Stock, only 2 left!

0

16

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

17

Exmark 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

18

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

19

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

20

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

21

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

22

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Exmark 1-803022

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on setscrews

$2.99

$

In Stock, Qty 20+

0

24

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

25

Exmark 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

26

Exmark 1-804524

NUT

$2.99

$

In Stock, only 2 left!

0

27

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

28

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

29

Exmark 322-14

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

30

Exmark 322-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

31

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

32

Exmark 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

33

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

34

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

35

Exmark 103-0057

103-5192
(Superseded to 103-5192)

$34.99

$

Usually ships in 3-6 days

0

36

Exmark 103-0194-03

ARM-CONTROL, HYDRO

$67.99

$

Usually ships in 3-6 days

0

37

Exmark 103-1361

SPACER-HYDRO CONTROL, LH

$7.99

$

Usually ships in 3-6 days

0

38

Exmark 1-633257

GRIP-CONTROL, MOTION

$14.99

$

In Stock, only 4 left!

0
