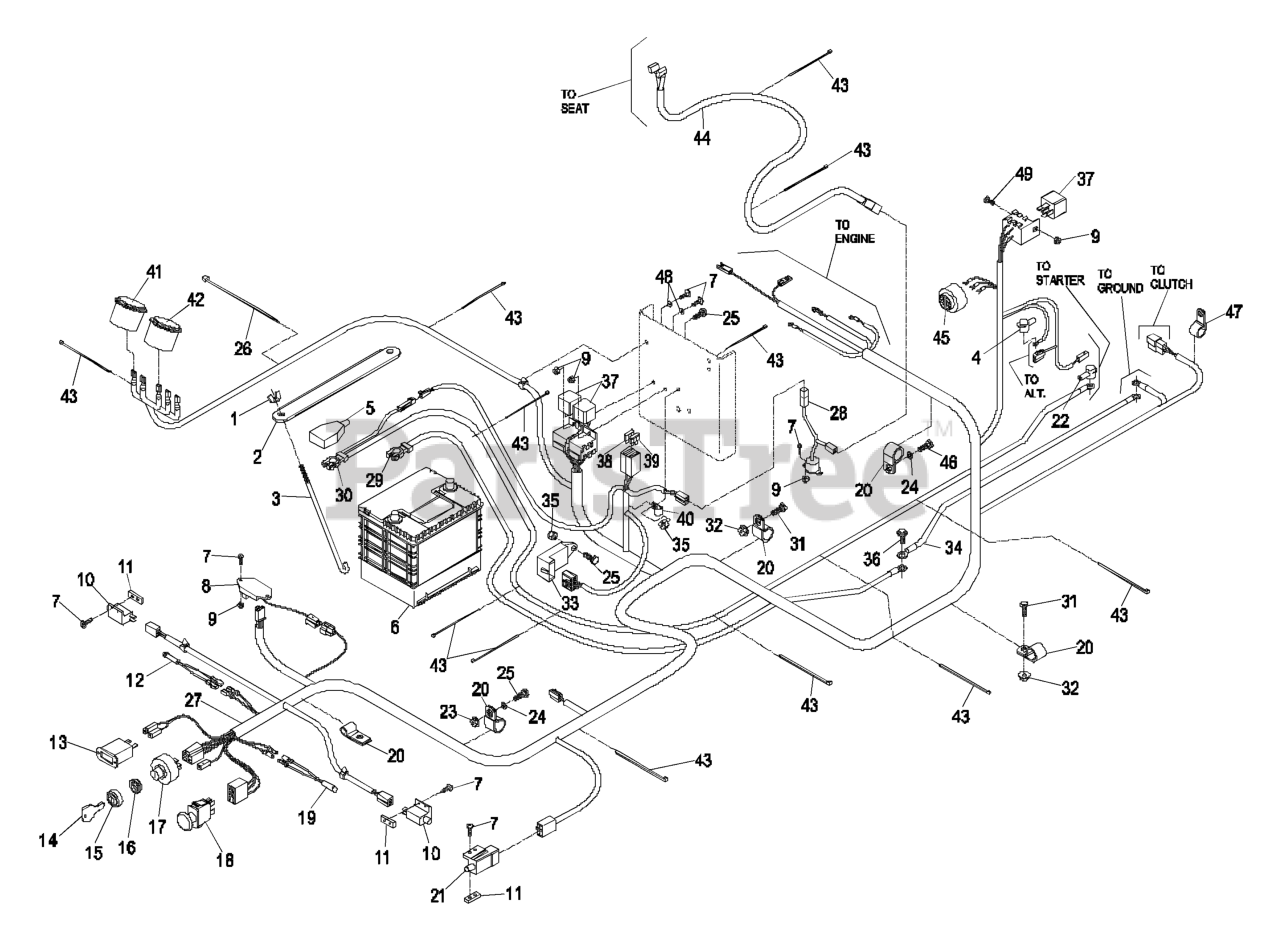

LZ31DG604 - Exmark 60" Lazer Z Zero-Turn Mower, 31hp Daihatsu (SN: 260000 - 319999) (2001) 27 HP Diesel Electrical Group Parts Diagram

60" Lazer Z Zero-Turn Mower, 31hp Daihatsu

27 HP Diesel Electrical Group Parts Diagram

  • Title

1

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 14

0

2

Exmark 103-1311-03

HOLDDOWN-BATTERY

$27.99

$

Usually ships in 3-6 days

0

3

Exmark 103-1312

BOLT-HOLDDOWN

$6.49

$

Usually ships in 3-6 days

0

4

Exmark 1-643178

CAP-INSULATOR, RED

$5.49

$

Usually ships in 3-6 days

0

5

Exmark 103-1340

INSULATOR-TERMINAL, BATTE

$5.49

$

Usually ships in 3-6 days

0

6

Battery, 12v SAE Post

Note: 12 Volt battery, BCI group size 26, 550 cca. For warranty and/or direct replacement contact Douglas Battery at 1-800-DOUGLAS.

$

$

Not available

7

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

8

Exmark 100-6186

MODULE-DELAY, SEAT

$44.99

$

In Stock, Qty 6

0

9

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

11

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, Qty 12

0

12

Exmark 1-643267

INDICATOR-LED, RED

$25.99

$

In Stock, only 1 left!

0

13

Exmark 1-513374

METER-HOUR
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

14

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

15

Exmark 103-0499

SEAL-SWITCH, IGNITION

$2.99

$

In Stock, only 2 left!

0

16

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.49

$

In Stock, Qty 20+

0

17

Exmark 103-0206

109-4736
(Superseded to 109-4736)

$42.99

$

In Stock, Qty 20+

0

18

Exmark 1-633673

103-5221
(Superseded to 103-5221)

$58.99

$

In Stock, Qty 20+

0

19

Exmark 103-1320

INDICATOR-LED, AMBER

$41.99

$

Usually ships in 3-6 days

0

20

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

21

Exmark 1-633111

SWITCH

$21.99

$

In Stock, Qty 20+

0

22

Exmark 103-1420

INSULATOR-STARTER

$6.99

$

Usually ships in 3-6 days

0

23

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

24

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Exmark 1-643115

TIE-PLASTIC

$2.99

$

Usually ships in 3-6 days

0

27

Exmark 103-1245

Harness, Wiring
(Superseded to 103-3296)

Note: Use dielectric grease on all wiring harness connectors.

$

$

Not available

28

Exmark 1-633782

109-4577
(Superseded to 109-4577)

$

$

Not available

29

Exmark 103-1159

CABLE-BATTERY NEGATIVE

$28.99

$

Usually ships in 3-6 days

0

30

Exmark 103-1160

CABLE-STARTER

Note: Starter Cable includes insulators 103-1340 & 103-1420.

$122.99

$

Usually ships in 3-6 days

0

31

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

33

Module, Pre-Heat Timer

Note: Briggs & Stratton P/N 820373; Refer to Engine Owner's Manual.

$

$

Not available

34

Exmark 103-1349

CABLE-ENGINE NEGATIVE

$18.99

$

Usually ships in 3-6 days

0

35

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

36

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

37

Exmark 1-643275

RELAY

$23.99

$

In Stock, Qty 20+

0

38

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.49

$

In Stock, Qty 13

0

39

Exmark 103-1368

FUSE-40 AMP

$5.49

$

Usually ships in 3-6 days

0

40

Exmark 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

41

Exmark 1-643037

GAUGE-VOLTMETER

$210.99

$

In Stock, only 1 left!

0

42

Exmark 1-643021

GAUGE-TEMPERATURE

$142.99

$

In Stock, only 2 left!

0

43

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

44

Exmark 103-1227

HARNESS-WIRING, SEAT

$23.99

$

Usually ships in 3-6 days

0

45

Exmark 103-0205

ALARM-TONE, DUAL

$67.99

$

In Stock, only 2 left!

0

46

Exmark 48-7630

DISCONTINUED (EXMARK)

$

$

Not available

47

Exmark 1-603727

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

48

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

49

Exmark 1-803071

SCREW

$1.49

$

In Stock, Qty 13

0

Exmark 103-1340

INSULATOR-TERMINAL, BATTE

$5.49

$

Usually ships in 3-6 days

0

Exmark 103-1420

INSULATOR-STARTER

$6.99

$

Usually ships in 3-6 days

0
