LZ31BV724 - Exmark 72" Lazer Z Zero-Turn Mower, 31hp Briggs & Stratton (SN: 540000 - 599999) (2005) Upper Frame Group Parts Diagram

72" Lazer Z Zero-Turn Mower, 31hp Briggs & Stratton

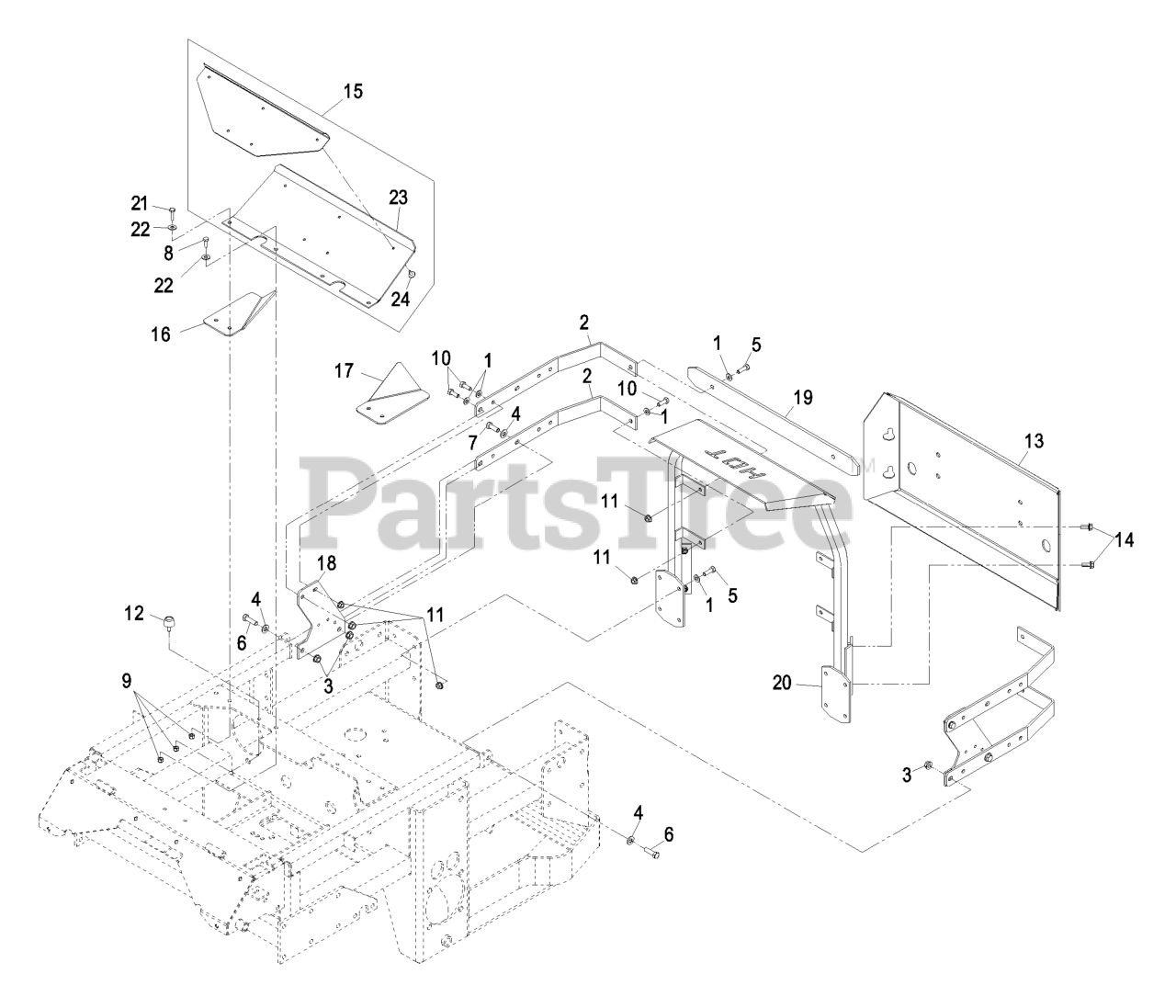

Upper Frame Group Parts Diagram

  • Title

1

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

2

Exmark 103-4906-03

BAR-MOUNT FRAME, RADIATOR

$

$

Not available

3

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

4

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

7

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

8

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

12

Exmark 1-523420

109-2365

$14.99

$

Usually ships in 3-6 days

0

13

Exmark 103-1479-03

WLD,REAR BUMPER

$229.99

$

Usually ships in 3-6 days

0

14

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

15

Exmark 103-7627

KIT,FRNT ENG COVER W/DECA

$

$

Not available

16

Exmark 103-6619-03

SUPPORT-FRONT COVER, RH

$26.99

$

Usually ships in 3-6 days

0

17

Exmark 103-6620-03

SUPPORT-FRONT COVER, LH

$26.99

$

Usually ships in 3-6 days

0

18

Exmark 103-6624-03

Support, Rib Side

$

$

Currently unavailable

19

Exmark 103-5686-03

GUARD, XS REAR MUFFLER

$

$

Not available

20

Exmark 103-4571-03

WLD,AIR DEFLECTOR

$275.99

$

Usually ships in 3-6 days

0

21

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

23

Exmark 103-6621

103-7627
(Superseded to 103-7627)

$

$

Not available

24

Exmark 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0
