Exmark LZ31BV724 - Exmark 72" Lazer Z Zero-Turn Mower, 31hp Briggs & Stratton (SN: 510000 - 539999) (2005) Fuel Group Parts Lookup with Diagrams

1

Exmark 103-3536

109-0346

(Superseded to 109-0346) 

$21.99

$

Usually ships in 3-6 days

2

Exmark 103-7510

KIT,FUEL TANK LH LZXS

Note: Includes tank, cap, fittings, and studs. LH tank also includes fuel gauge.

$

Not available 

3

Exmark 103-7511

KIT,FUEL TANK RH LZXS

Note: Includes tank, cap, fittings, and studs. LH tank also includes fuel gauge.

$

Not available 

4

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 8

5

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

6

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

7

Exmark 1-807533

BOLT-CARR

$1.49

$

In Stock, Qty 6

8

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

9

Exmark 1-633347

VALVE-FUEL

$74.99

$

In Stock, only 3 left!

10

Exmark 1-633023

STUD

Note: Use Pro-Lock, Retaining type (Part No. 1-840023), .5cc tube on stud threads going into the tank.

$6.49

$

Usually ships in 3-6 days

11

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

12

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, only 2 left!

13

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 11

14

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 16

15

Exmark 103-6564

KIT, CT FUEL GAGE REPL.

$65.99

$

In Stock, Qty 8

16

Exmark 1-303335

TIE-PLASTIC

(Superseded to 3290-378) 

$0.99

$

In Stock, Qty 8

17

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

18

Exmark 103-7512

KIT,CTRL PANEL W/DECALS L

$105.99

$

Usually ships in 3-6 days

19

Exmark 32122-30

SCREW-PTH

Note: Snug fit only on slotted holes, Do Not Overtighten, tank must be able to expand.

$1.49

$

In Stock, Qty 20+

20

Exmark 103-2605

FITTING-FUEL, BULKHEAD

Note: Use Prolock, Nut type (Part No. 1-840022), .5ml tube on fuel fitting.

$36.99

$

In Stock, only 2 left!

Exmark 103-2784

O-RING,BULKHEAD FITTING

$13.99

$

In Stock, only 3 left!

21

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 14

22

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

23

Exmark 103-1193

CLIP-HALF, LOOM

$2.99

$

Usually ships in 3-6 days

24

Exmark 103-1419

HOSE-FUEL

$15.99

$

Usually ships in 3-6 days

25

Exmark 1-603954

HOSE-LINE, FUEL

$8.99

$

In Stock, only 1 left!

26

Exmark 1-543526

109-0302

(Superseded to 109-0302) 

$12.99

$

In Stock, Qty 5

27

Exmark 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

28

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

29

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

30

Exmark 695327

Briggs & Stratton Fuel Filter

Note: Refer to Engine Owner's Manual.

$

Currently unavailable 

31

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

32

Exmark 1-513592

KNOB-BALL

$6.99

$

In Stock, Qty 10

33

Exmark 1-513593

KNOB-BALL, BLACK

$5.49

$

In Stock, Qty 11

34

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

35

Exmark 103-4091

CABLE-THROTTLE

$54.99

$

In Stock, only 3 left!

36

Exmark 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

37

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

38

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

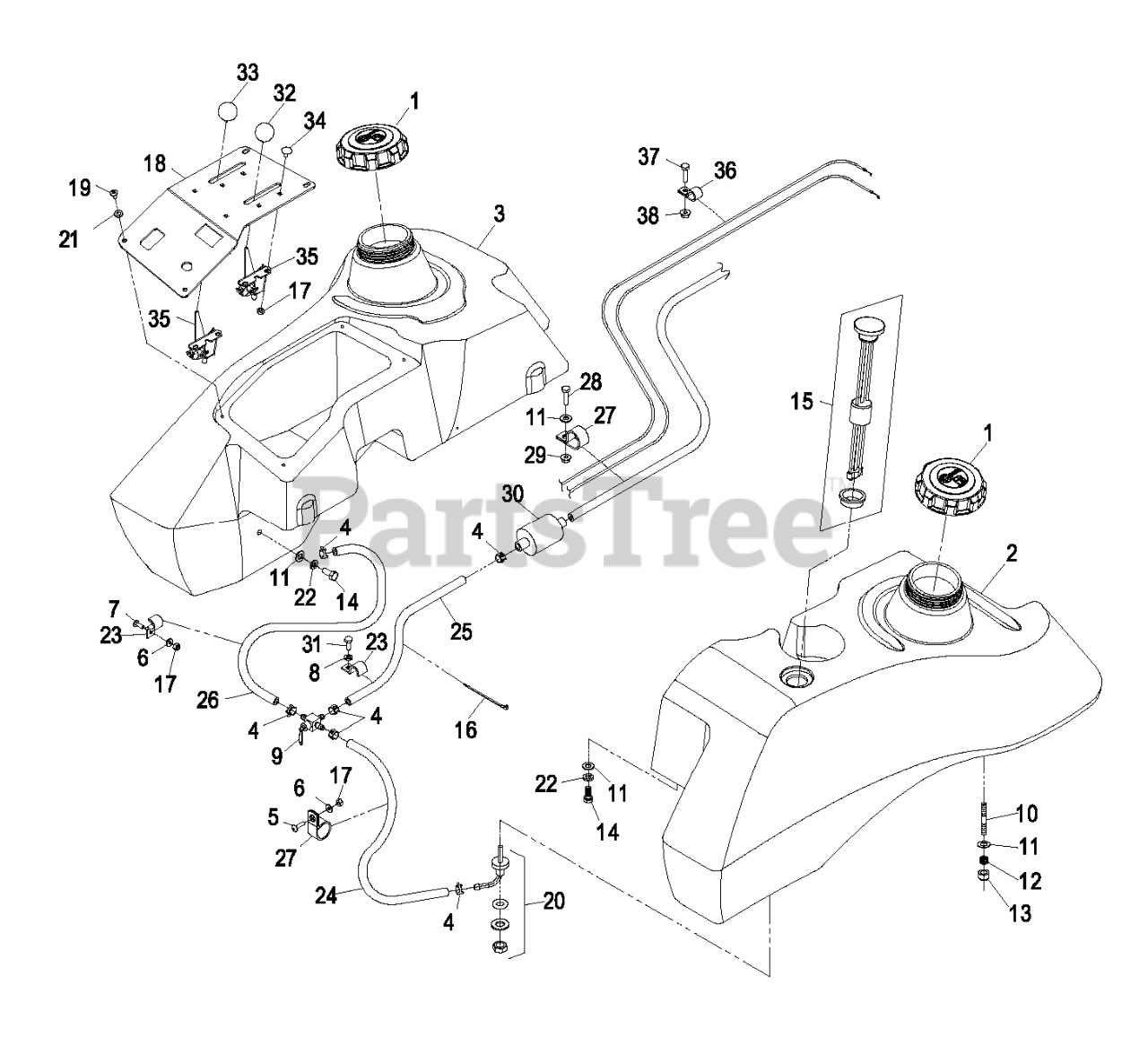

LZ31BV724 - Exmark 72" Lazer Z Zero-Turn Mower, 31hp Briggs & Stratton (SN: 510000 - 539999) (2005) Fuel Group Parts Diagram

Fuel Group Parts Diagram
