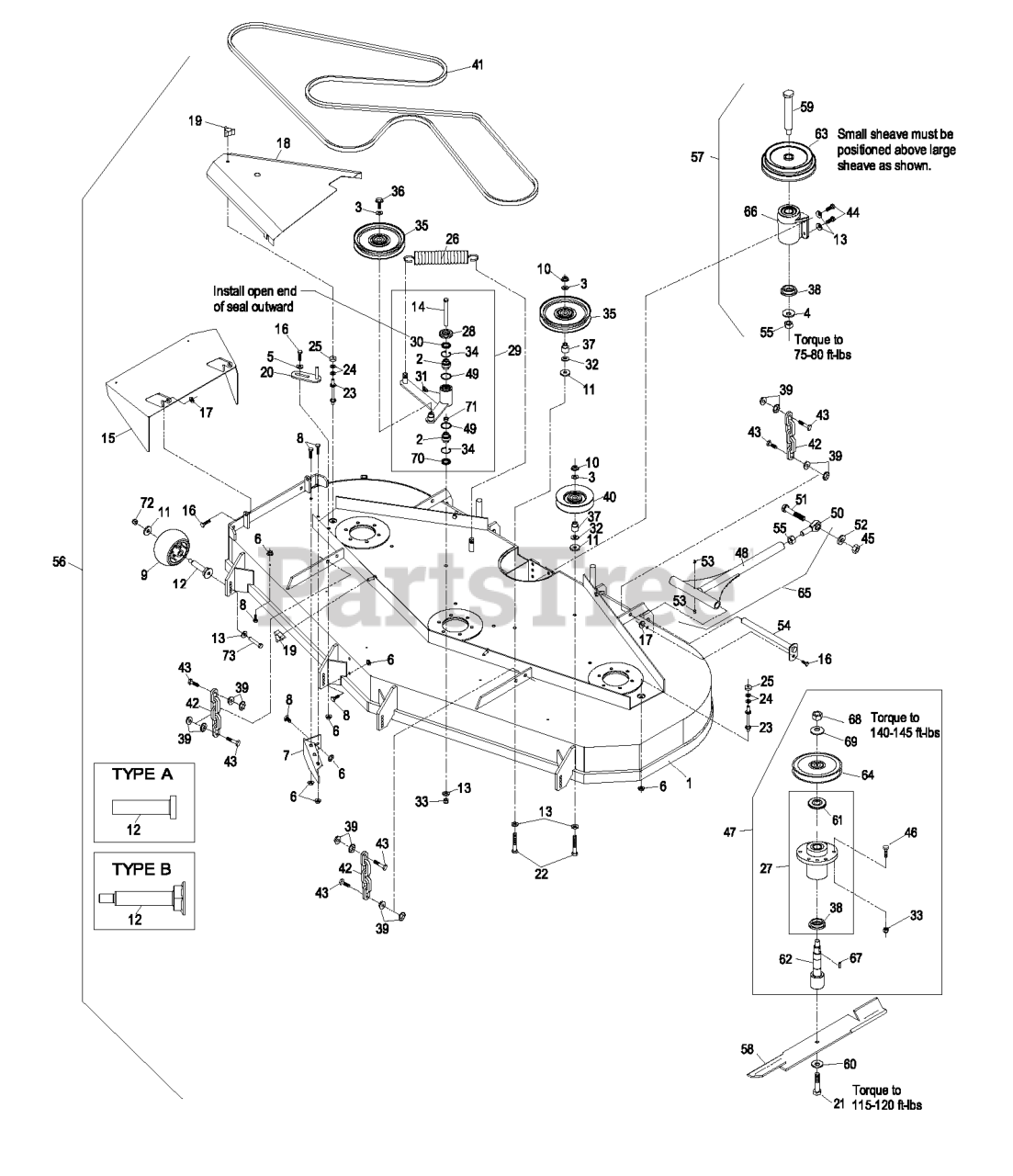

LZ31BV724 - Exmark 72" Lazer Z Zero-Turn Mower, 31hp Briggs & Stratton (SN: 510000 - 539999) (2005) 72" Deck Group Parts Diagram

Exmark 103-1591

Exmark 103-3504

Exmark 3256-24

Exmark 1-513208

Exmark 1-303334

Exmark 32128-20

Exmark 1-602913-01

Exmark 322-2

Exmark 1-603299

Note: Kit 103-3168 includes antiscalp roller, axle, & mounting hardware for Type A axles. Kit 103-7263 includes antiscalp roller, axle, & mounting hardware for Type B axles.

Exmark 3290-357

Exmark 1-373034

Exmark 1-603602

Note: Unit may have been built with Type A or Type B anti scalp axles. Reference page 6 to determine which axles are installed on the unit.

Exmark 103-5364

Note: Unit may have been built with Type A or Type B anti scalp axles. Reference page 6 to determine which axles are installed on the unit.

Exmark 98-5975

Exmark 98-5961

Exmark 1-642071-01

Exmark 322-5

Exmark 3296-29

Exmark 1-643076-01

Exmark 1-643075-01

Exmark 1-323385

Exmark 1-322110

Exmark 103-0862

Exmark 323-11

Exmark 1-303537

Exmark 3256-3

Exmark 1-323417

Exmark 103-3330

Exmark 103-8280

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

Exmark 103-2916

Exmark 103-5693

Note: 103-5693 kit includes components shown and (1) nyloc nut item 33.

Exmark 103-3506

Exmark 302-40

Exmark 3256-4

Exmark 3296-39

Exmark 32120-10

Exmark 1-633109

Exmark 3234-11

Exmark 1-633456

Exmark 103-2535

Exmark 32128-37

Exmark 1-603805

Exmark 1-643052

Exmark 1-633447

Exmark 103-1898

Exmark 323-6

Exmark 3217-11

Exmark 323-8

Exmark 103-8323

Note: Complete cutter housing assembly also includes items 21 & 60.

Exmark 103-0100-01

Exmark 106-7159

Exmark 1-633029

Exmark 327-28

Exmark 3253-8

Exmark 302-19

Exmark 1-632199-01

Exmark 3219-6

Exmark 103-7457

Note: Complete deck assembly does not include items 39, 42, & 43, but does include belt (item 13, pg. 15).

Exmark 103-3249

Exmark 103-2531

Exmark 103-2511

Exmark 103-2521

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK724.

Exmark 103-1581

Exmark 103-6339

Exmark 1-643393

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

Exmark 103-0865

Exmark 103-1330

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

Exmark 103-2785

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

Exmark 103-3046

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

Exmark 103-2795

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

Exmark 103-0840

Exmark 103-2544

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

Exmark 103-2982

Exmark 3217-46

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on nut Item 68.

Exmark 103-2802

Exmark 103-3505

Exmark 103-5677

Exmark 3290-357

Note: Unit may have been built with Type A or Type B anti scalp axles. Reference page 6 to determine which axles are installed on the unit.

Exmark 3296-39

Note: Unit may have been built with Type A or Type B anti scalp axles. Reference page 6 to determine which axles are installed on the unit.

Exmark 98-5961

Note: Unit may have been built with Type A or Type B anti scalp axles. Reference page 6 to determine which axles are installed on the unit.

Exmark 3211-46

Note: Unit may have been built with Type A or Type B anti scalp axles. Reference page 6 to determine which axles are installed on the unit.
