LZ31BV724 - Exmark 72" Lazer Z Zero-Turn Mower, 31hp Briggs & Stratton (SN: 440000 - 509999) (2004) Deck Group 72" Parts Diagram

72" Lazer Z Zero-Turn Mower, 31hp Briggs & Stratton

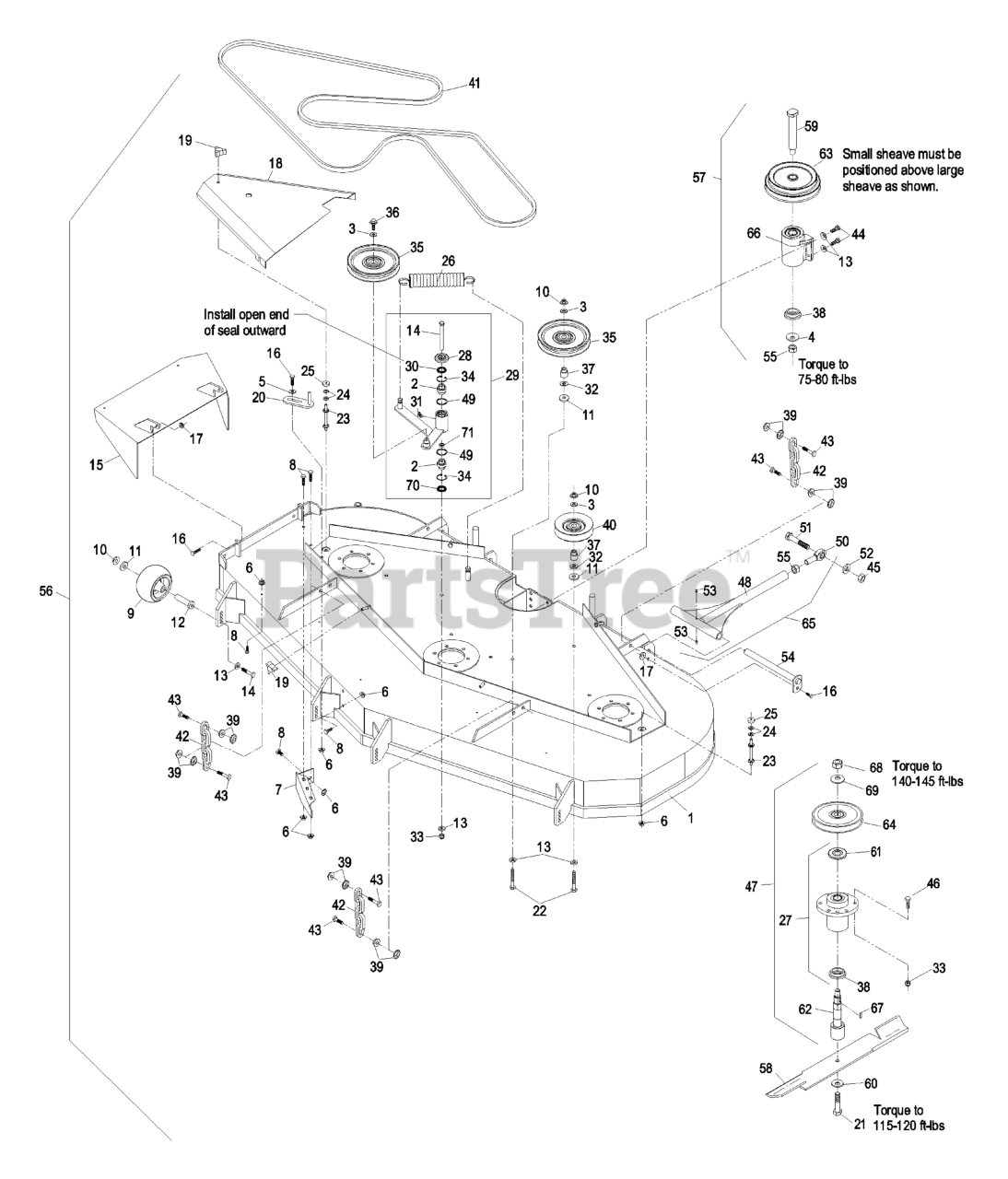

Deck Group 72" Parts Diagram

  • Title

1

Exmark 103-1591

ASM,DECK W/DECALS LZ/XP72

$5605.99

$

Usually ships in 3-6 days

0

2

Exmark 103-3504

BEARING-SPHERICAL

$25.99

$

In Stock, Qty 20+

0

3

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

5

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

6

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$46.99

$

In Stock, only 4 left!

0

8

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

9

Exmark 1-603299

ROLLER-SCALP, ANTI

Note: Kit 103- 3168 includes antiscalp roller, bushing, & mounting hardware

$23.99

$

In Stock, Qty 16

0

10

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

11

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

12

Exmark 1-603602

BUSHING-ROLLER

$23.99

$

In Stock, only 3 left!

0

13

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

14

Exmark 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

15

Exmark 1-642071-01

WLD,CHUTE 72

$168.99

$

Usually ships in 3-6 days

0

16

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Exmark 1-643076-01

SHIELD,BELT RH

$125.99

$

In Stock, only 1 left!

0

Exmark 1-643075-01

SHIELD,BELT LH

$134.99

$

In Stock, only 3 left!

0

19

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

20

Exmark 1-322110

GUIDE-BELT

$12.99

$

In Stock, Qty 8

0

21

Exmark 103-0862

SCREW-CAP

$5.99

$

In Stock, Qty 18

0

22

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

23

Exmark 1-303537

STUD-SHIELD, BELT (SHORT)

$6.49

$

In Stock, Qty 20+

0

24

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

26

Exmark 103-3330

116-6317
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 9

0

27

Exmark 103-2547

103-8280
(Superseded to 103-8280)

$254.99

$

In Stock, only 4 left!

0

28

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

29

Exmark 103-5693

KIT,DECK IDLER LZ/XP

Note: 103-5693 kit includes components shown and (1) nyloc nut item #33

$136.99

$

In Stock, only 3 left!

0

30

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 19

0

31

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

32

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

33

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

34

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

35

Exmark 1-633109

126-7685
(Superseded to 126-7685)

$62.99

$

In Stock, Qty 12

0

36

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

37

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

38

Exmark 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 3 left!

0

39

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 18

0

40

Exmark 1-603805

PULLEY-IDLER

$54.99

$

In Stock, Qty 13

0

41

Exmark 1-643052

BELT-V
(Superseded to 1-643052-SL)

$212.99

$

In Stock, Qty 10

0

42

Exmark 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 16

0

43

Exmark 103-1898

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

44

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

45

Exmark 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 15

0

46

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

47

Exmark 103-3206

103-8323
(Superseded to 103-8323)

Note: Complete cutter housing assembly also includes items 60 & 21

$552.99

$

In Stock, only 1 left!

0

48

Exmark 103-0100-01

103-0840
(Superseded to 103-0840)

$331.99

$

In Stock, only 1 left!

0

49

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

50

Exmark 1-633029

BALLJOINT-SPHERICAL

$66.99

$

In Stock, Qty 12

0

51

Exmark 327-28

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

52

Exmark 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

53

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

54

Exmark 1-632199-01

PIN-STRUT

$35.99

$

In Stock, Qty 12

0

55

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

56

Exmark 103-7457

Asm, Deck Complete

Note: Complete deck assembly does not include item 39, 42, & 43, but does include belt (item 13, see "Engine Deck Group")

$

$

Currently unavailable

57

Exmark 103-3249

KIT,JACKSHAFT 60/72-3750

$464.99

$

In Stock, only 1 left!

0

58

Exmark 103-2531

103-2531-S
(Superseded to 103-2531-S)

$44.99

$

In Stock, Qty 12

0

Exmark 103-2511

103-2511-S
(Superseded to 103-2511-S)

$43.99

$

Usually ships in 3-6 days

0

Exmark 103-2521

103-2521-S
(Superseded to 103-2521-S)

$43.99

$

In Stock, Qty 18

0

Exmark 103-1581

103-1581-S
(Superseded to 103-1581-S)

$45.99

$

In Stock, Qty 17

0

Exmark 103-6339

116-5172-S
(Superseded to 116-5172-S)

$38.99

$

Usually ships in 3-6 days

0

59

Exmark 1-643393

JACKSHAFT

$33.99

$

In Stock, only 1 left!

0

60

Exmark 103-0865

WASHER-BLADE BOLT, HEAVY

$5.99

$

In Stock, Qty 18

0

61

Exmark 103-1330

GUARD-BEARING, TOP

$5.49

$

In Stock, only 2 left!

0

62

Exmark 103-2785

SPINDLE,SHORT

$115.99

$

In Stock, only 2 left!

0

63

Exmark 103-3046

SHEAVE, JACKSHAFT DOUBLE

$111.99

$

In Stock, only 3 left!

0

64

Exmark 103-2795

SHEAVE,BLADE DRIVE 7.5

$99.99

$

Usually ships in 3-6 days

0

65

Exmark 103-0840

STRUT WLDMT S/A

$331.99

$

In Stock, only 1 left!

0

66

Exmark 103-2544

103-9746
(Superseded to 103-9746)

$263.99

$

In Stock, only 1 left!

0

67

Exmark 103-2982

KEY

$2.99

$

In Stock, Qty 12

0

68

Exmark 3217-46

NUT-HH

$12.99

$

In Stock, Qty 13

0

69

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 15

0

70

Exmark 103-3505

SEAL-LIP, DOUBLE

$5.49

$

In Stock, Qty 20+

0

71

Exmark 103-5677

SPACER

$2.99

$

In Stock, only 3 left!

0

Exmark 1-805337

Red Spray Paint

$

$

Currently unavailable

Exmark 103-3168

116-9981
(Superseded to 116-9981)

$52.99

$

In Stock, Qty 20+

0

Exmark MK724

Mulch Kit

$

$

Currently unavailable
