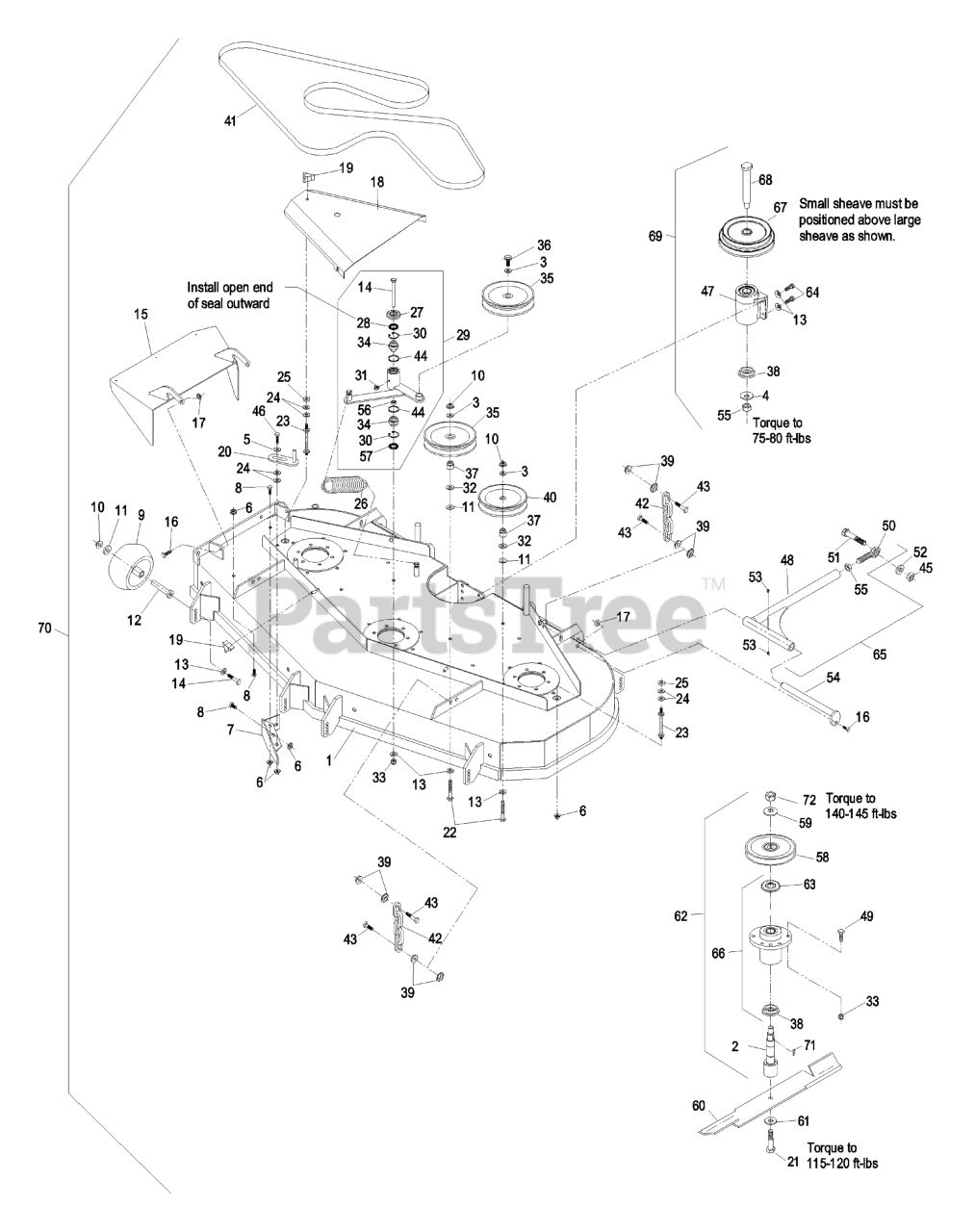

Exmark LZ31BV724 - Exmark 72" Lazer Z Zero-Turn Mower, 31hp Briggs & Stratton (SN: 440000 - 509999) (2004) Deck Group 60" Parts Lookup with Diagrams

1

Exmark 103-1589

ASM,DECK W/DECALS XP604

$

Not available 

2

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet)(or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearing, spindles and sheaves, and under tip bearing guard. DO NOT use a copper or nickel based antisie

$115.99

$

In Stock, only 2 left!

3

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

4

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

5

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

6

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

7

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$46.99

$

In Stock, only 4 left!

8

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

9

Exmark 1-603299

ROLLER-SCALP, ANTI

Note: Kit 103- 3168 includes antiscalp roller, bushing, & mounting hardware

$23.99

$

In Stock, Qty 10

10

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

11

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

12

Exmark 1-603602

BUSHING-ROLLER

$23.99

$

In Stock, only 3 left!

13

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

14

Exmark 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

15

Exmark 103-5840-01

WLD,CHUTE XP604

$166.99

$

In Stock, only 1 left!

16

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

17

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

18

Exmark 1-633084-01

SHIELD,BELT

$96.99

$

In Stock, Qty 9

Exmark 103-1470-01

DISCONTINUED

$

Not available 

19

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

20

Exmark 1-322110

GUIDE-BELT

$12.99

$

In Stock, Qty 8

21

Exmark 103-0862

SCREW-CAP

$5.99

$

In Stock, Qty 18

22

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

23

Exmark 1-303537

STUD-SHIELD, BELT (SHORT)

$6.49

$

In Stock, Qty 20+

24

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

25

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

26

Exmark 103-3330

116-6317

(Superseded to 116-6317) 

$28.99

$

In Stock, Qty 7

27

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

28

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 19

29

Exmark 103-5693

KIT,DECK IDLER LZ/XP

Note: 103-5693 kit includes components shown and (1) nyloc nut item #33

$136.99

$

In Stock, only 3 left!

30

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

31

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

32

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

33

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

34

Exmark 103-3504

BEARING-SPHERICAL

$25.99

$

In Stock, Qty 20+

35

Exmark 1-633109

126-7685

(Superseded to 126-7685) 

$62.99

$

In Stock, Qty 7

36

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

37

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

38

Exmark 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 3 left!

39

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 17

40

Exmark 1-603805

PULLEY-IDLER

$54.99

$

In Stock, Qty 12

41

Exmark 1-633127

BELT,BLADE DRIVE

(Superseded to 1-633127-SL) 

$119.99

$

In Stock, Qty 20+

42

Exmark 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 16

43

Exmark 103-1898

SCREW-HH

$1.99

$

In Stock, Qty 20+

44

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

45

Exmark 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 14

46

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

47

Exmark 103-2544

103-9746

(Superseded to 103-9746) 

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet)(or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearing, spindles and sheaves, and under tip bearing guard. DO NOT use a copper or nickel based antisie

$263.99

$

In Stock, only 1 left!

48

Exmark 103-1355-01

109-1184

(Superseded to 109-1184) 

$124.99

$

In Stock, only 1 left!

49

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

50

Exmark 1-633029

BALLJOINT-SPHERICAL

$66.99

$

In Stock, Qty 12

51

Exmark 327-28

SCREW-HH

$18.99

$

Usually ships in 3-6 days

52

Exmark 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

53

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

54

Exmark 1-632199-01

PIN-STRUT

$35.99

$

In Stock, Qty 12

55

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

56

Exmark 103-5677

SPACER

$2.99

$

In Stock, only 3 left!

57

Exmark 103-3505

SEAL-LIP, DOUBLE

$5.49

$

In Stock, Qty 20+

58

Exmark 103-2794

SHEAVE,BLADE DRIVE 6.30

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet)(or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearing, spindles and sheaves, and under tip bearing guard. DO NOT use a copper or nickel based antisie

$68.99

$

In Stock, only 2 left!

59

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 14

60

Exmark 103-2530

103-2530-S

(Superseded to 103-2530-S) 

$34.99

$

In Stock, Qty 20+

Exmark 103-2510

103-2510-S

(Superseded to 103-2510-S) 

$38.99

$

In Stock, Qty 14

Exmark 103-0301

103-0301-S

(Superseded to 103-0301-S) 

Note: Requires installation of Micro- Mulch accessory for proper mulching. Mulch kit P/N MK604

$34.99

$

In Stock, Qty 20+

Exmark 103-1580

103-1580-S

(Superseded to 103-1580-S) 

$36.99

$

In Stock, Qty 14

Exmark 103-6338

116-5173-S

(Superseded to 116-5173-S) 

$34.99

$

Usually ships in 3-6 days

61

Exmark 103-0865

WASHER-BLADE BOLT, HEAVY

$5.99

$

In Stock, Qty 18

62

Exmark 103-3200

103-8075

(Superseded to 103-8075) 

Note: Complete cutter housing assembly also includes items 61 & 21

$511.99

$

Usually ships in 3-6 days

63

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet)(or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearing, spindles and sheaves, and under tip bearing guard. DO NOT use a copper or nickel based antisie

$5.49

$

In Stock, only 2 left!

64

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

65

Exmark 103-1356

STRUT ASM

$318.99

$

In Stock, Qty 6

66

Exmark 103-2547

103-8280

(Superseded to 103-8280) 

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet)(or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearing, spindles and sheaves, and under tip bearing guard. DO NOT use a copper or nickel based antisie

$254.99

$

In Stock, only 3 left!

67

Exmark 103-3046

SHEAVE, JACKSHAFT DOUBLE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet)(or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearing, spindles and sheaves, and under tip bearing guard. DO NOT use a copper or nickel based antisie

$111.99

$

In Stock, only 3 left!

68

Exmark 1-643393

JACKSHAFT

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet)(or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearing, spindles and sheaves, and under tip bearing guard. DO NOT use a copper or nickel based antisie

$33.99

$

Usually ships in 3-6 days
