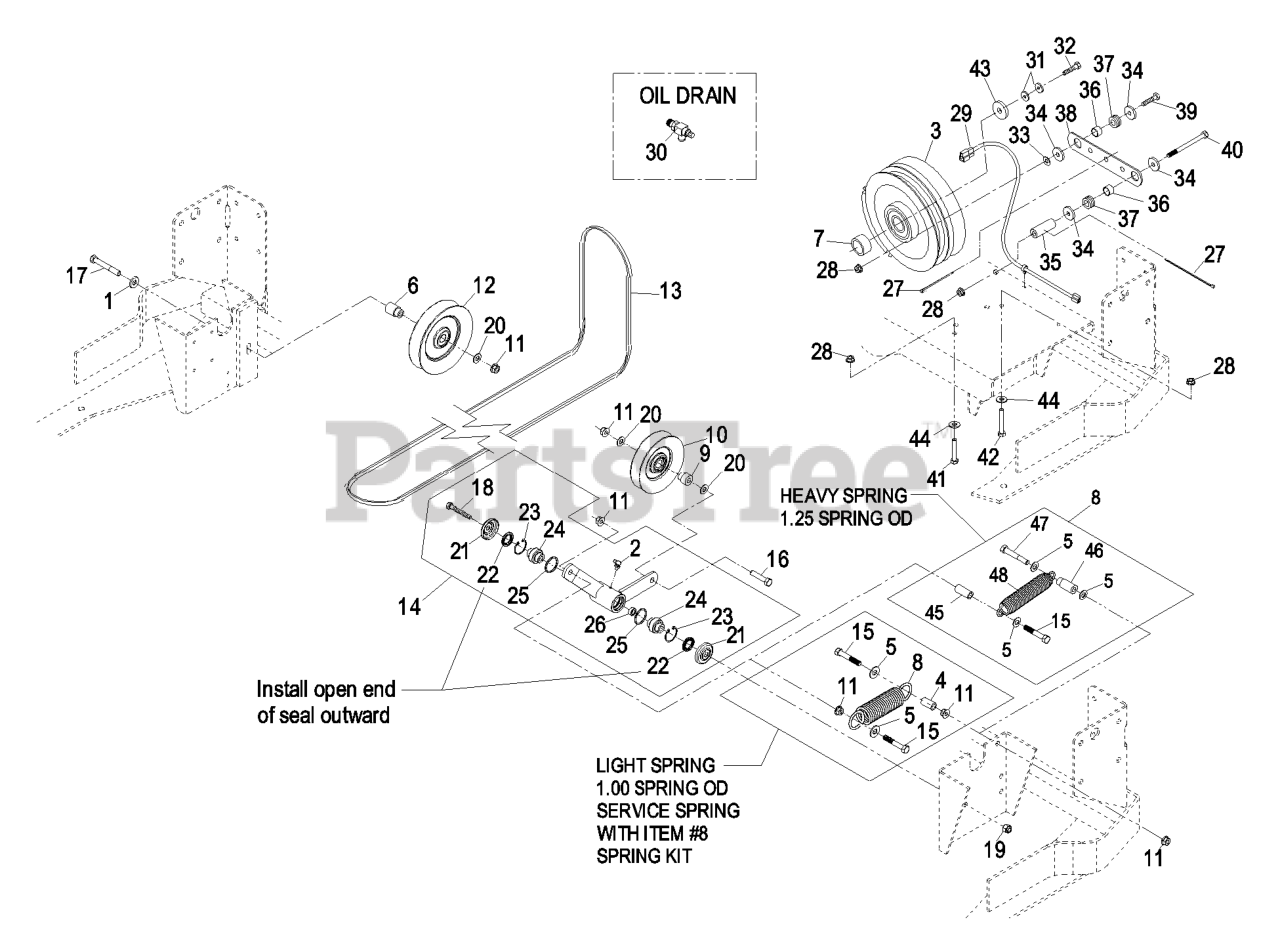

LZ31BV604 - Exmark 60" Lazer Z Zero-Turn Mower, 31hp Briggs & Stratton (SN: 540000 - 599999) (2005) Engine Deck Group Parts Diagram

60" Lazer Z Zero-Turn Mower, 31hp Briggs & Stratton

Engine Deck Group Parts Diagram

  • Title

1

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

2

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

3

Exmark 103-3244

109-7666
(Superseded to 109-7666)

Note: Includes clutch and jumper harness kit item #29.

$703.99

$

In Stock, only 1 left!

0

Exmark 103-3012

KIT,MS200 CLUTCH BRAKE

$138.99

$

Usually ships in 3-6 days

0

4

Exmark 1-603401

SPACER

$6.99

$

In Stock, Qty 8

0

5

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

6

Exmark 103-2627

BUSHING-IDLER

$3.49

$

In Stock, Qty 20+

0

7

Exmark 103-4579

109-6874
(Superseded to 109-6874)

$16.99

$

Usually ships in 3-6 days

0

8

Exmark 103-9020

DISCONTINUED

Note: Kit includes items #5(3), #11(2), #15(1), #45, #46, #47 & #48.

$

$

Not available

9

Exmark 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

10

Exmark 1-603805

PULLEY-IDLER

$54.99

$

In Stock, Qty 12

0

11

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Exmark 1-633166

PULLEY-IDLER

$56.99

$

In Stock, only 3 left!

0

13

Exmark 103-6506

BELT-V B 118.75
(Superseded to 103-6506-SL)

$106.99

$

Usually ships in 3-6 days

0

14

Exmark 103-5695

KIT,MULE IDLER LZ

Note: 103-5695 kit includes components shown and nyloc nut item #19.

$125.99

$

In Stock, only 1 left!

0

15

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

16

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, Qty 5

0

18

Exmark 1-800805

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

19

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 14

0

20

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

21

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

22

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 19

0

23

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

24

Exmark 103-3504

BEARING-SPHERICAL

$25.99

$

In Stock, Qty 20+

0

25

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

26

Exmark 103-5677

SPACER

$2.99

$

In Stock, only 3 left!

0

27

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

28

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

29

Exmark 103-3247

KIT,CLUTCH JUMPER HARNESS

Note: Includes jumper harness, clip and 2 plastic ties item #27.

$42.99

$

In Stock, Qty 5

0

30

Exmark 103-6602

VALVE-OIL DRAIN

$86.99

$

Usually ships in 3-6 days

0

31

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 6

0

32

Exmark 3212-6

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt.

$2.49

$

In Stock, only 1 left!

0

33

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

34

Exmark 1-613235

WASHER

$1.99

$

In Stock, Qty 5

0

35

Exmark 1-633988

SPACER-ANCHOR, CLUTCH

$11.99

$

In Stock, only 1 left!

0

36

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 15

0

37

Exmark 1-633630

GROMMET

$5.99

$

In Stock, Qty 8

0

38

Exmark 1-633543-03

STRAP-CLUTCH, BRAKE

$14.99

$

In Stock, only 1 left!

0

39

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

40

Exmark 322-19

SCREW-HH

$6.49

$

In Stock, only 1 left!

0

41

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

42

Exmark 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

43

Exmark 1-543610

WASHER-CLUTCH

$6.49

$

In Stock, Qty 6

0

44

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

45

Exmark 1-633082

BUSHING-LEVER, LIFT

$11.99

$

Usually ships in 3-6 days

0

46

Exmark 1-653366

HUB

$25.99

$

In Stock, only 1 left!

0

47

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 14

0

48

Exmark 103-8599

116-6316
(Superseded to 116-6316)

$23.99

$

In Stock, only 3 left!

0
