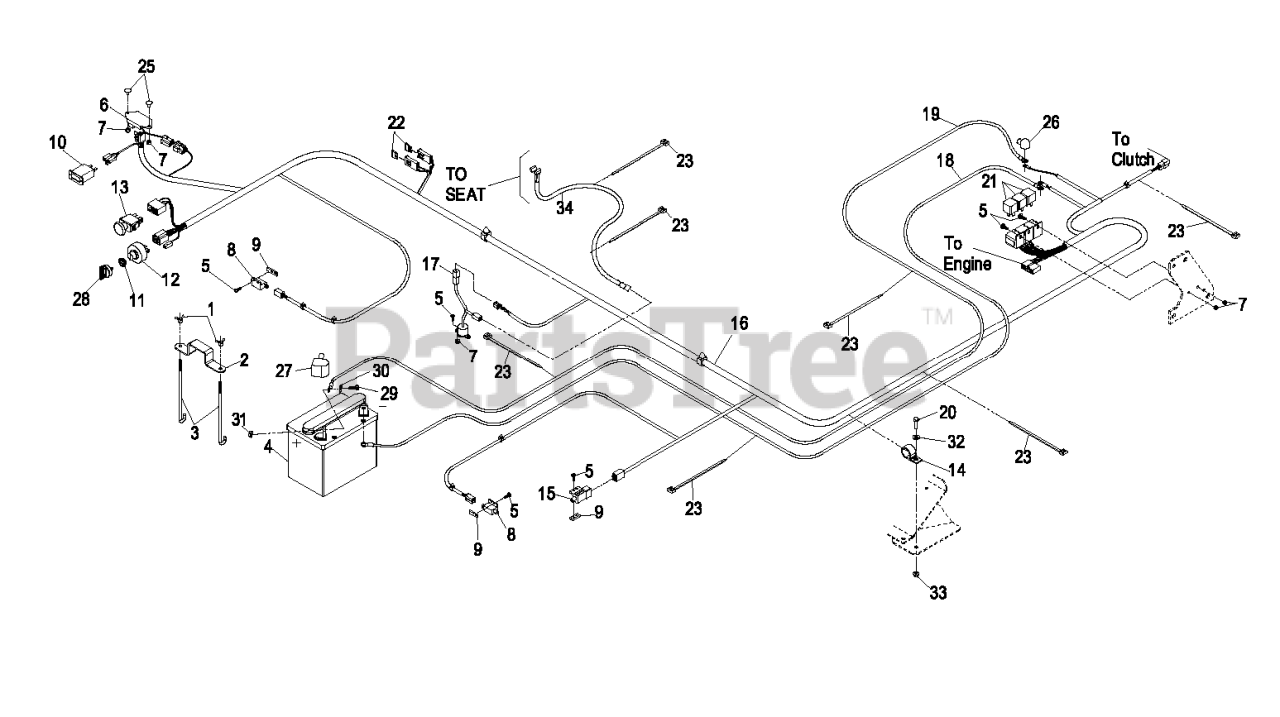

LZ31BV604 - Exmark 60" Lazer Z Zero-Turn Mower, 31hp Briggs & Stratton (SN: 510000 - 539999) (2005) Electrical Group Parts Diagram

60" Lazer Z Zero-Turn Mower, 31hp Briggs & Stratton

Electrical Group Parts Diagram

  • Title

1

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 10

0

2

Exmark 1-633652-03

STRAP-HOLDDOWN

$21.99

$

In Stock, only 3 left!

0

3

Exmark 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 20+

0

4

Exmark 103-0293

DISCONTINUED (EXMARK)

$

$

Not available

5

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

6

Exmark 103-5218

MODULE-DELAY, SEAT

$45.99

$

In Stock, only 3 left!

0

7

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

9

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, Qty 12

0

10

Exmark 1-513374

METER-HOUR
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

11

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.49

$

In Stock, Qty 20+

0

12

Exmark 103-0206

109-4736
(Superseded to 109-4736)

$42.99

$

In Stock, Qty 20+

0

13

Exmark 103-5221

SWITCH-PTO

$58.99

$

In Stock, Qty 20+

0

14

Exmark 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

0

15

Exmark 1-633111

SWITCH

$21.99

$

In Stock, Qty 20+

0

16

Exmark 103-6568

HARNESS, WIRE XS

Note: Use dielectric grease on all wiring harness connectors.

$

$

Not available

17

Exmark 1-633782

109-4577
(Superseded to 109-4577)

Note: Use dielectric grease on all wiring harness connectors.

$

$

Not available

18

Exmark 1-633307

WIRE-GROUND

$45.99

$

In Stock, only 3 left!

0

19

Exmark 1-523279

109-7608
(Superseded to 109-7608)

$44.99

$

Usually ships in 3-6 days

0

20

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Exmark 1-643275

RELAY

$23.99

$

In Stock, Qty 20+

0

22

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.49

$

In Stock, Qty 13

0

23

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

25

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

26

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

27

Exmark 1-543391

109-2407
(Superseded to 109-2407)

$5.49

$

In Stock, only 3 left!

0

28

Exmark 103-2160

Key, Exmark Logo

$

$

Currently unavailable

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

29

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

31

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

32

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

33

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

34

Exmark 103-1227

HARNESS-WIRING, SEAT

Note: Use dielectric grease on all wiring harness connectors.

$23.99

$

Usually ships in 3-6 days

0
