LZ30KC725 - Exmark 72" Lazer Z Zero-Turn Mower, 30hp Kohler (SN: 600000 - 669999) (2006) Front Frame Group Parts Diagram
72" Lazer Z Zero-Turn Mower, 30hp Kohler

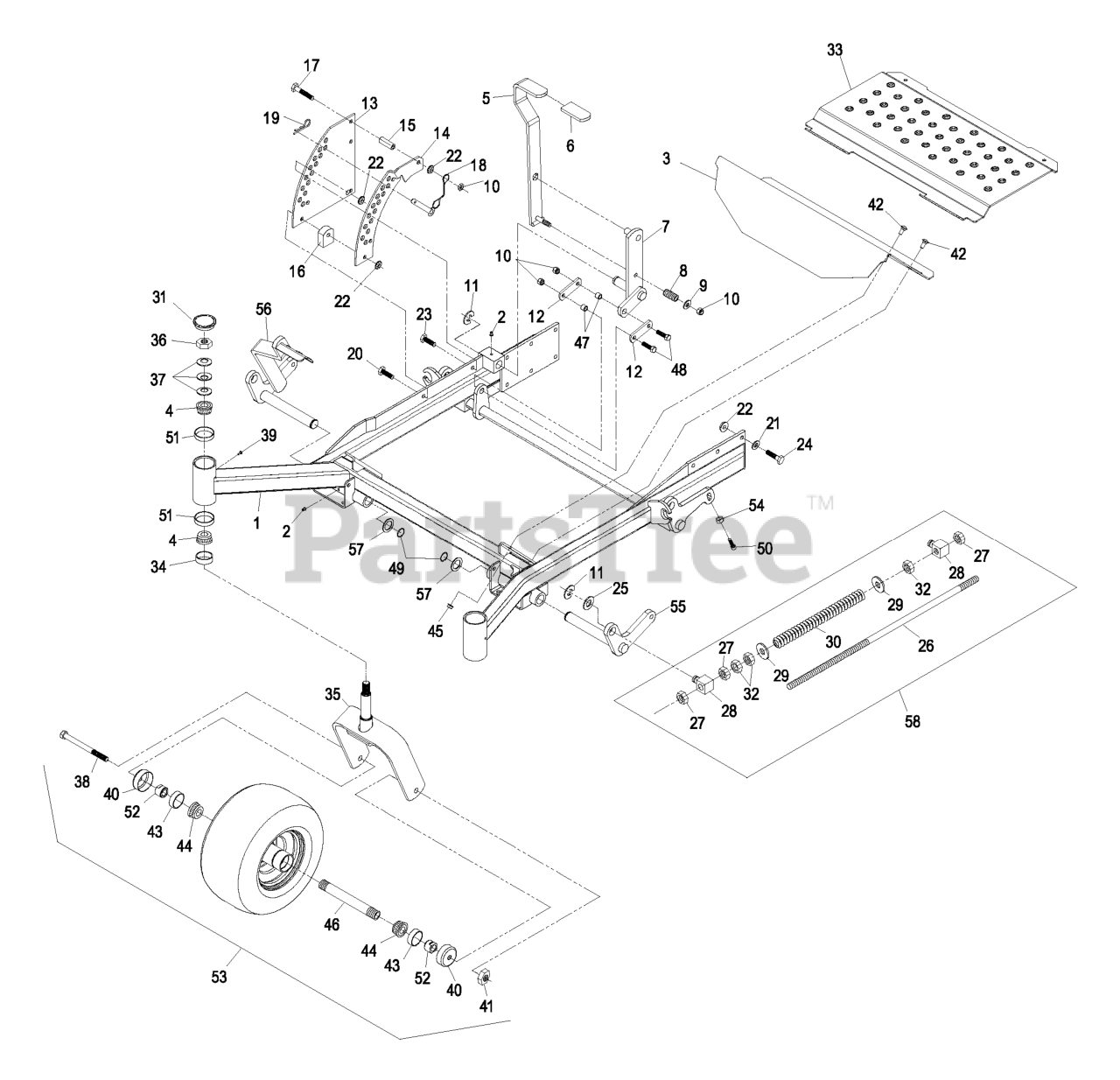

Front Frame Group Parts Diagram
Exmark 109-2072
Note: Includes frame weldment plus items #2, #31, #34, #39, #49, #51, #55, #56 and #57.
$3511.99
$
Exmark 109-2073
Note: Includes frame weldment plus items #2, #31, #34, #39, #49, #51, #55, #56 and #57.
$
$
Not available
Exmark 109-2074
Note: Includes frame weldment plus items #2, #31, #34, #39, #49, #51, #55, #56 and #57.
$3492.99
$
Exmark 302-19
$2.49
$
Exmark 109-1903
$274.99
$
Exmark 1-543509
$13.99
$
Exmark 103-2084
$77.99
$
Exmark 1-633295
$7.99
$
$162.99
$
Exmark 1-633325
$5.49
$
Exmark 3256-24
$0.99
$
Exmark 3296-39
$2.99
$
Exmark 32151-103
$3.49
$
Exmark 1-633068
$11.99
$
Exmark 1-633889-01
$
$
Not available
$
$
Not available
Exmark 1-633082
$11.99
$
Exmark 103-8275
$
$
Currently unavailable
Exmark 323-13
$3.99
$
Exmark 1-633097
$23.99
$
Exmark 1-806005
$2.99
$
Exmark 323-9
$1.49
$
Exmark 98-5975
$3.49
$
Exmark 3290-357
$0.99
$
Exmark 323-6
$2.49
$
Exmark 323-7
$2.99
$
Exmark 3256-29
$2.99
$
Exmark 1-633096
$23.99
$
Exmark 3217-11
$3.49
$
Exmark 1-633441
$27.99
$
Exmark 3256-7
$1.99
$
Exmark 1-643015
$42.99
$
Exmark 103-4882
$7.99
$
Exmark 3218-6
$6.49
$
Exmark 109-1902
$191.99
$
Exmark 1-543511
$12.99
$
$185.99
$
Exmark 3296-51
$6.49
$
Exmark 1-633508
$3.49
$
Exmark 325-39
$18.99
$
Exmark 1-811010
$5.49
$
Exmark 103-2768
$3.99
$
Exmark 3296-23
$1.49
$
Exmark 3230-1
$1.99
$
Exmark 103-0063
$8.99
$
Exmark 1-633585
$21.99
$
Exmark 32128-20
$1.49
$
$19.99
$
Exmark 103-1918
$7.99
$
Exmark 323-29
$0.99
$
Exmark 32151-29
$5.49
$
Exmark 3274-18
$9.49
$
Exmark 1-543508
$7.99
$
Exmark 103-3051
Note: Use Pro-Lock, Nut Type (P/N 1-840022, 5ml tube) on spacer nut, Item #52.
$9.49
$
$341.99
$
Exmark 3218-2
$0.99
$
Exmark 103-9741-01
$132.99
$
Exmark 103-9740-01
$218.99
$
Exmark 1-523157
$1.49
$
Exmark 103-2047
$80.99
$
Exmark 1-840022
$18.99
$
Exmark 1-850337
$27.99
$
Exmark 103-9140
$21.99
$
