LZ30KC605 - Exmark 60" Lazer Z Zero-Turn Mower, 30hp Kohler (SN: 600000 - 669999) (2006) Kohler Air-Cooled Electrical Group 23, 27 & 30 HP Parts Diagram

60" Lazer Z Zero-Turn Mower, 30hp Kohler

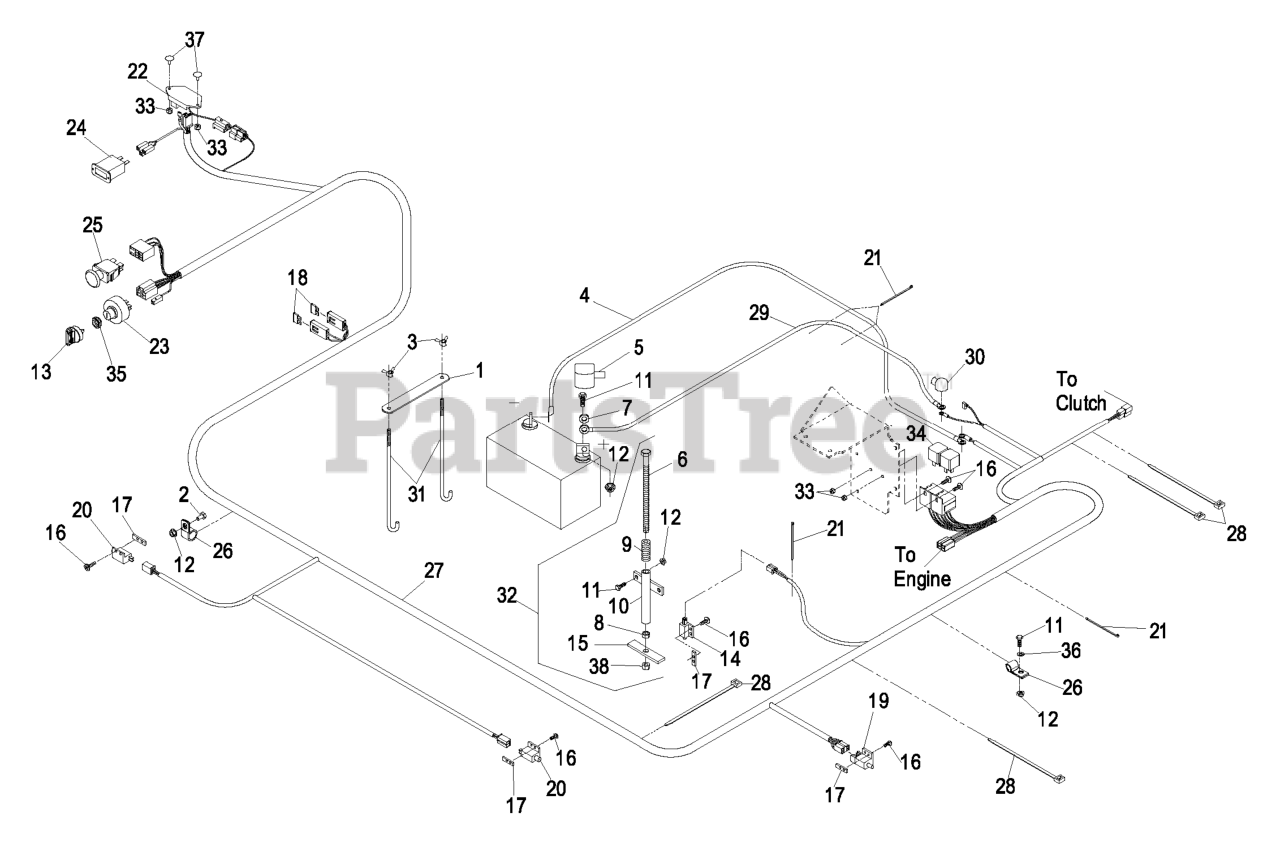

Kohler Air-Cooled Electrical Group 23, 27 & 30 HP Parts Diagram

  • Title

1

Exmark 107-9277-03

STRAP-HOLDDOWN, BATTERY

$6.49

$

In Stock, Qty 7

0

2

Exmark 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

3

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 15

0

4

Exmark 1-633307

WIRE-GROUND

$41.99

$

In Stock, only 3 left!

0

5

Exmark 1-543391

109-2407
(Superseded to 109-2407)

$5.49

$

In Stock, only 3 left!

0

6

Exmark 1-800282

SCREW-HH

$5.49

$

In Stock, only 1 left!

0

7

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

8

Exmark 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

9

Exmark 1-523415

SPRING-SWITCH, SEAT

$33.99

$

In Stock, only 1 left!

0

10

Exmark 1-522424-03

MOUNT-SPRING, SEAT

$37.99

$

Usually ships in 3-6 days

0

11

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

13

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 7

0

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

14

Exmark 1-513152

SWITCH-CLOSED, NORMALLY

$13.99

$

In Stock, Qty 15

0

15

Exmark 1-513180

PLATE-SWITCH, SEAT

$17.99

$

In Stock, only 3 left!

0

16

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

17

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

18

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.49

$

In Stock, Qty 13

0

19

Exmark 1-633111

SWITCH

$21.99

$

In Stock, Qty 19

0

20

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

21

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

22

Exmark 103-5218

MODULE-DELAY, SEAT

$45.99

$

In Stock, Qty 5

0

23

Exmark 103-0206

109-4736
(Superseded to 109-4736)

$42.99

$

In Stock, Qty 15

0

24

Exmark 1-513374

METER-HOUR
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

25

Exmark 103-5221

SWITCH-PTO

$58.99

$

In Stock, Qty 20+

0

26

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

27

Exmark 109-0125

HARNESS, WIRE LAZER KC

Note: Use dielectric grease on all wiring harness connectors.

$367.99

$

Usually ships in 3-6 days

0

28

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

29

Exmark 1-523281

109-7630
(Superseded to 109-7630)

$43.99

$

In Stock, only 2 left!

0

30

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

31

Exmark 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 9

0

32

Exmark 103-5652

ASM,SEAT SWITCH ACTUATOR

$98.99

$

Usually ships in 3-6 days

0

33

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Exmark 1-643275

RELAY

$23.99

$

In Stock, Qty 6

0

35

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.49

$

In Stock, Qty 6

0

36

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

38

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
