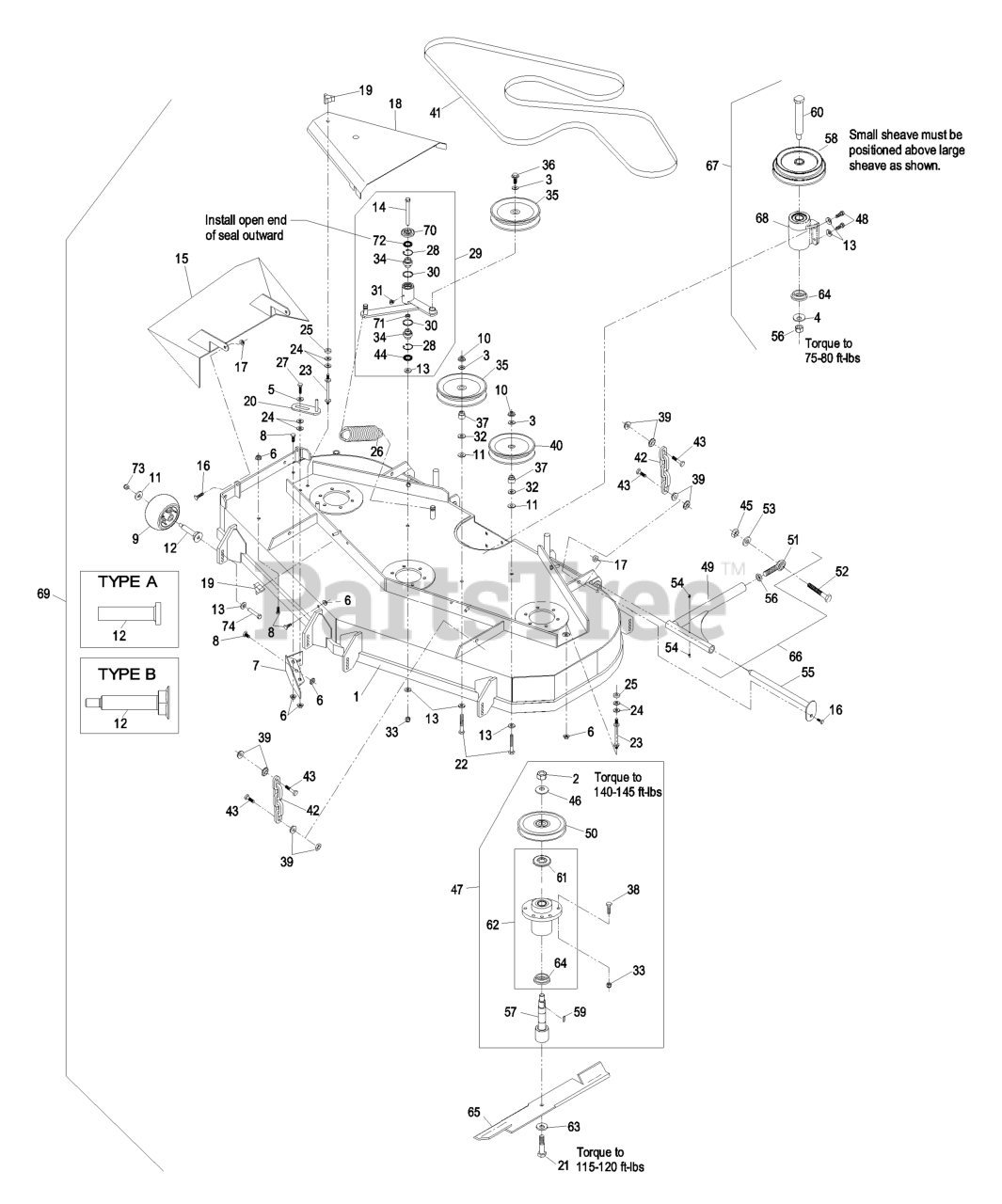

LZ28KC724 - Exmark 72" Lazer Z Zero-Turn Mower, 28hp Kohler (SN: 510000 - 539999) (2005) Deck Group 60" Parts Diagram

Exmark 103-3184

Exmark 3217-46

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on nut Item #2.

Exmark 3256-24

Exmark 1-513208

Exmark 1-303334

Exmark 32128-20

Exmark 1-602913-01

Exmark 322-2

Exmark 1-603299

Note: Kit 103-3168 includes antiscalp roller, axle, & mounting hardware for Type A axles. Kit 103-7263 includes antiscalp roller, axle, & mounting hardware for Type B axles.

Exmark 3290-357

Exmark 1-373034

Exmark 1-603602

Note: Unit may have been built with Type A or Type B anti scalp axles. Reference illustration to determine which axles are installed on the unit.

Exmark 103-5364

Note: Unit may have been built with Type A or Type B anti scalp axles. Reference illustration to determine which axles are installed on the unit.

Exmark 98-5975

Exmark 98-5961

Exmark 103-5830-01

Exmark 322-5

Exmark 3296-29

Exmark 1-633084-01

Exmark 1-323385

Exmark 1-322110

Exmark 103-0862

Exmark 323-11

Exmark 1-303537

Exmark 3256-3

Exmark 1-323417

Exmark 103-3330

Exmark 322-6

Exmark 32120-10

Exmark 103-5693

Note: Kit also includes items #13 & #33.

Exmark 106-7159

Exmark 302-40

Exmark 3256-4

Exmark 3296-39

Exmark 103-3504

Exmark 1-633109

Exmark 3234-11

Exmark 1-633456

Exmark 323-8

Exmark 32128-37

Exmark 1-603805

Exmark 1-633127

Exmark 1-633447

Exmark 103-1898

Exmark 103-3505

Exmark 3217-11

Exmark 103-2802

Exmark 103-8075

Note: Complete cutter housing assembly also includes items #21 & #63.

Exmark 323-6

Exmark 103-1072-01

Exmark 103-2794

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

Exmark 1-633029

Exmark 327-11

Exmark 3253-8

Exmark 302-19

Exmark 1-632199-01

Exmark 3219-6

Exmark 103-2785

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

Exmark 103-3046

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

Exmark 103-2982

Exmark 1-643393

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

Exmark 103-1330

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

Exmark 103-8280

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

Exmark 103-0865

Exmark 103-2535

Exmark 103-2530

Exmark 103-2510

Exmark 103-0301

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK604.

Exmark 103-1580

Exmark 103-6338

Exmark 103-1081

Exmark 103-3249

Exmark 103-2544

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

Exmark 103-3258

Note: Complete deck assembly excludes items #39, #42, #43, and #66 and includes mule drive belt from "Engine Deck Group".

Exmark 103-2916

Exmark 103-5677

Exmark 103-3506

Exmark 3290-357

Note: Unit may have been built with Type A or Type B anti scalp axles. Reference illustration to determine which axles are installed on the unit.

Exmark 3296-39

Note: Unit may have been built with Type A or Type B anti scalp axles. Reference illustration to determine which axles are installed on the unit.

Exmark 98-5961

Note: Unit may have been built with Type A or Type B anti scalp axles. Reference illustration to determine which axles are installed on the unit.

Exmark 3211-46

Note: Unit may have been built with Type A or Type B anti scalp axles. Reference illustration to determine which axles are installed on the unit.
