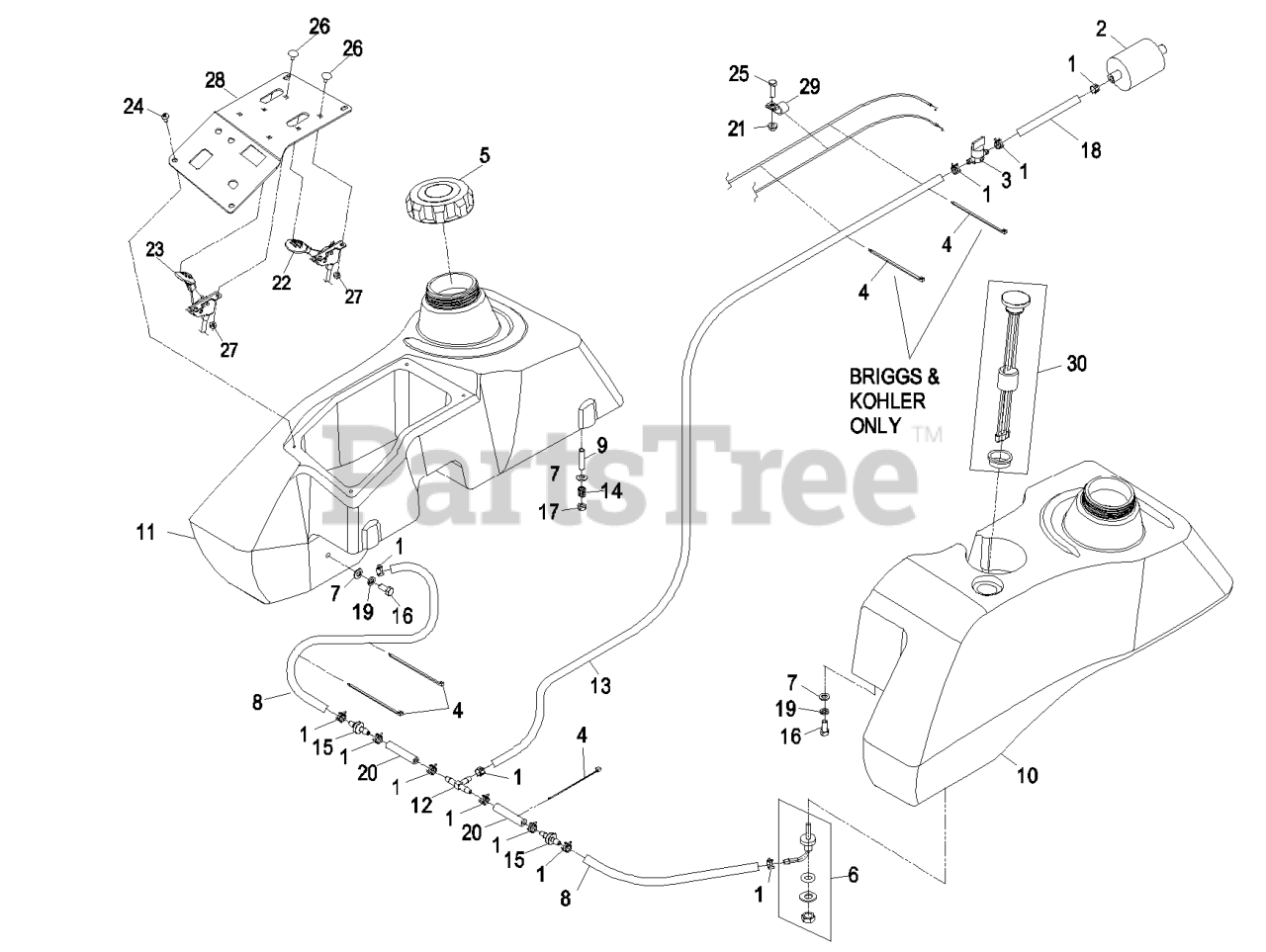

LZ28KC605 - Exmark 60" Lazer Z Zero-Turn Mower, 28hp Kohler (SN: 720000 - 789999) (2008) Fuel Group - All Units Except 28HP Kohler EFI Parts Diagram

60" Lazer Z Zero-Turn Mower, 28hp Kohler

Fuel Group - All Units Except 28HP Kohler EFI Parts Diagram

  • Title

1

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

0

2

Kohler Part No 2405010 Fuel Filter

Note: Refer to Engine Owner's Manual (Fuel Filter Must be 15 Micron or smaller).

$

$

Not available

Kawasaki Part No 49019-7001 Fuel Filter

$

$

Not available

Briggs&Strattor Part No 695327 Fuel Filter

$

$

Not available

3

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 5

0

4

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

5

Exmark 109-0346

CAP-FUEL, GAS

$21.99

$

In Stock, Qty 15

0

6

Exmark 103-2605

FITTING-FUEL, BULKHEAD

Note: Use Pro-lock, Nut type (Part No. 1-840022), .5ml tube on fuel fitting.

$36.99

$

In Stock, Qty 6

0

Exmark 103-2784

O-RING,BULKHEAD FITTING

$13.99

$

In Stock, only 3 left!

0

7

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Exmark 108-4582

HOSE-FUEL

$11.99

$

In Stock, only 1 left!

0

9

Exmark 1-633023

STUD

Note: Use Pro-lock, Retaining Type (Part No. 1-840023), .5cc tube on stud threads going into the tank.

$6.49

$

In Stock, only 2 left!

0

10

Exmark 103-4924

ASM,FUEL TANK LH

Note: (LH) Includes: tank, cap, fitting & studs. LH tank also includes fuel gauge.

$

$

Not available

11

Exmark 109-0896

DISCONTINUED

Note: (RH) Includes: tank, cap, fitting & studs. LH tank also includes fuel gauge.

$

$

Not available

12

Exmark 99-5005

FITTING-TEE, BARBED

$2.99

$

In Stock, only 2 left!

0

13

Exmark 109-0281

HOSE-FUEL

$15.99

$

Usually ships in 3-6 days

0

14

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, Qty 6

0

15

Exmark 99-5000

VALVE-CHECK, FUEL

$9.49

$

In Stock, only 2 left!

0

16

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

18

Exmark 109-0660

HOSE-FUEL

Note: (Kohler & Briggs)

$4.49

$

In Stock, only 3 left!

0

Exmark 109-0293

HOSE-FUEL

Note: (Kawasaki)

$6.49

$

Usually ships in 3-6 days

0

19

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 7

0

20

Exmark 109-0304

HOSE-FUEL

$2.49

$

In Stock, Qty 11

0

21

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

22

Exmark 109-3987

CONTROL-THROTTLE

$38.99

$

In Stock, only 1 left!

0

23

Exmark 109-4210

CONTROL,CHOKE

$45.99

$

In Stock, only 4 left!

0

24

Exmark 109-2661

SCREW-PPH

Note: Snug fit only on slotted holes, Do Not Overtighten, tank must be able to expand.

$1.49

$

In Stock, Qty 20+

0

25

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

27

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Exmark 109-4510

PANEL,CONTROL W/DECALS

Note: (Kohler & Kawasaki)

$

$

Not available

Exmark 109-4512

PANEL,CONTROL W/DECALS

Note: (Briggs)

$

$

Not available

29

Exmark 1-513762

CLIP-LOOM

Note: (.50)

$7.99

$

In Stock, only 1 left!

0

30

Exmark 103-6562

Kit, Gauge Fuel

$

$

Currently unavailable
