LZ28KC604 - Exmark 60" Lazer Z Zero-Turn Mower, 28hp Kohler (SN: 510000 - 539999) (2005) Fuel Group - 23 & 27 HP Kohler Air-Cooled Parts Diagram

60" Lazer Z Zero-Turn Mower, 28hp Kohler

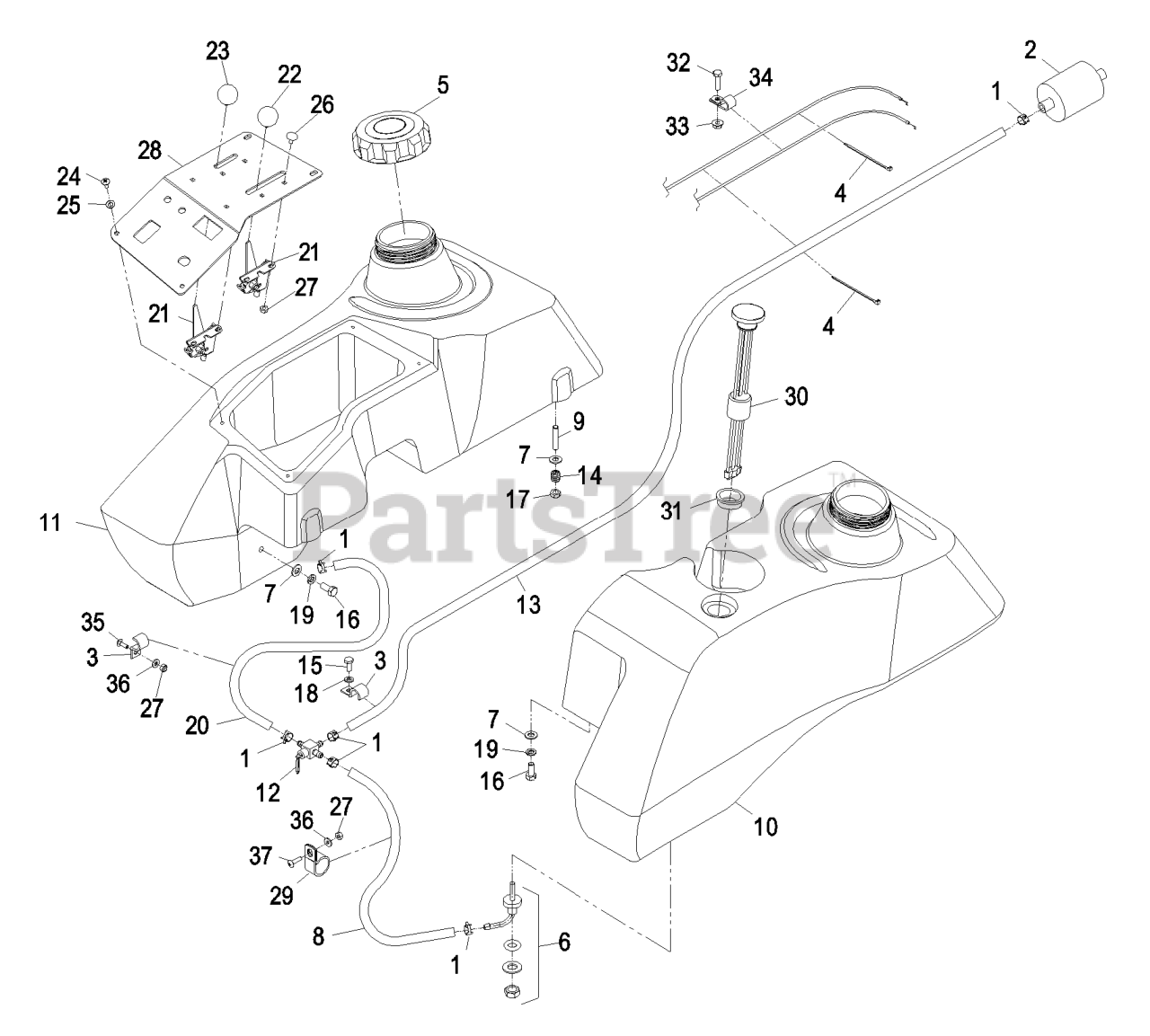

Fuel Group - 23 & 27 HP Kohler Air-Cooled Parts Diagram

  • Title

1

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 8

0

2

Kohler Part No. 2405002 Fuel Filter

Note: Refer to Engine Owner's Manual (Fuel Filter Must be 15 Micron or smaller).

$

$

Not available

3

Exmark 103-1193

CLIP-HALF, LOOM

$2.99

$

Usually ships in 3-6 days

0

4

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

5

Exmark 103-3536

109-0346
(Superseded to 109-0346)

$21.99

$

In Stock, only 1 left!

0

6

Exmark 103-2605

FITTING-FUEL, BULKHEAD

Note: Use Pro-lock, Nut type (Part No. 1-840022), .5ml tube on fuel fitting.

$35.99

$

In Stock, only 3 left!

0

Exmark 103-2784

O-RING,BULKHEAD FITTING

$13.99

$

In Stock, only 3 left!

0

7

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Exmark 103-1419

HOSE-FUEL

$15.99

$

Usually ships in 3-6 days

0

9

Exmark 1-633023

STUD

Note: Use Pro-lock, Retaining Type (Part No. 1-840023), .5cc tube on stud threads going into the tank.

$6.49

$

Usually ships in 3-6 days

0

10

Exmark 103-4924

ASM,FUEL TANK LH

Note: Includes: tank, cap, fitting & studs. LH tank also includes fuel gauge.

$

$

Not available

11

Exmark 103-4925

DISCONTINUED
(Superseded to 109-1053)

Note: Includes: tank, cap, fitting & studs. LH tank also includes fuel gauge.

$

$

Not available

12

Exmark 1-633347

VALVE-FUEL

$74.99

$

In Stock, only 3 left!

0

13

Exmark 103-4970

HOSE,FUEL

$

$

Not available

14

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

Usually ships in 3-6 days

0

15

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

18

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

0

19

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

20

Exmark 1-543526

109-0302
(Superseded to 109-0302)

$12.99

$

In Stock, Qty 5

0

21

Exmark 103-4091

CABLE-THROTTLE

$55.99

$

In Stock, only 3 left!

0

22

Exmark 1-513592

KNOB-BALL

$6.49

$

In Stock, Qty 10

0

23

Exmark 1-513593

KNOB-BALL, BLACK

$5.49

$

In Stock, Qty 11

0

24

Exmark 32122-30

SCREW-PTH

Note: Snug fit only on slotted holes,Do Not Overtighten, tank must be able to expand.

$1.49

$

In Stock, Qty 20+

0

25

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 14

0

26

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

27

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Exmark 103-5252

109-2388
(Superseded to 109-2388)

$

$

Not available

29

Exmark 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

0

30

Exmark 99-7262

103-6564
(Superseded to 103-6564)

$65.99

$

In Stock, Qty 8

0

31

Exmark 95-8972

CONTACT ORDER SERVICES

$11.99

$

In Stock, only 1 left!

0

32

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

33

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

34

Exmark 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

35

Exmark 1-807533

BOLT-CARR

$1.49

$

In Stock, Qty 6

0

36

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0
