LZ27LKA724 - Exmark 72" Lazer Z Zero-Turn Mower, 27hp Kawasaki (SN: 540000 - 599999) (2005) Park Brake Group Parts Diagram

72" Lazer Z Zero-Turn Mower, 27hp Kawasaki

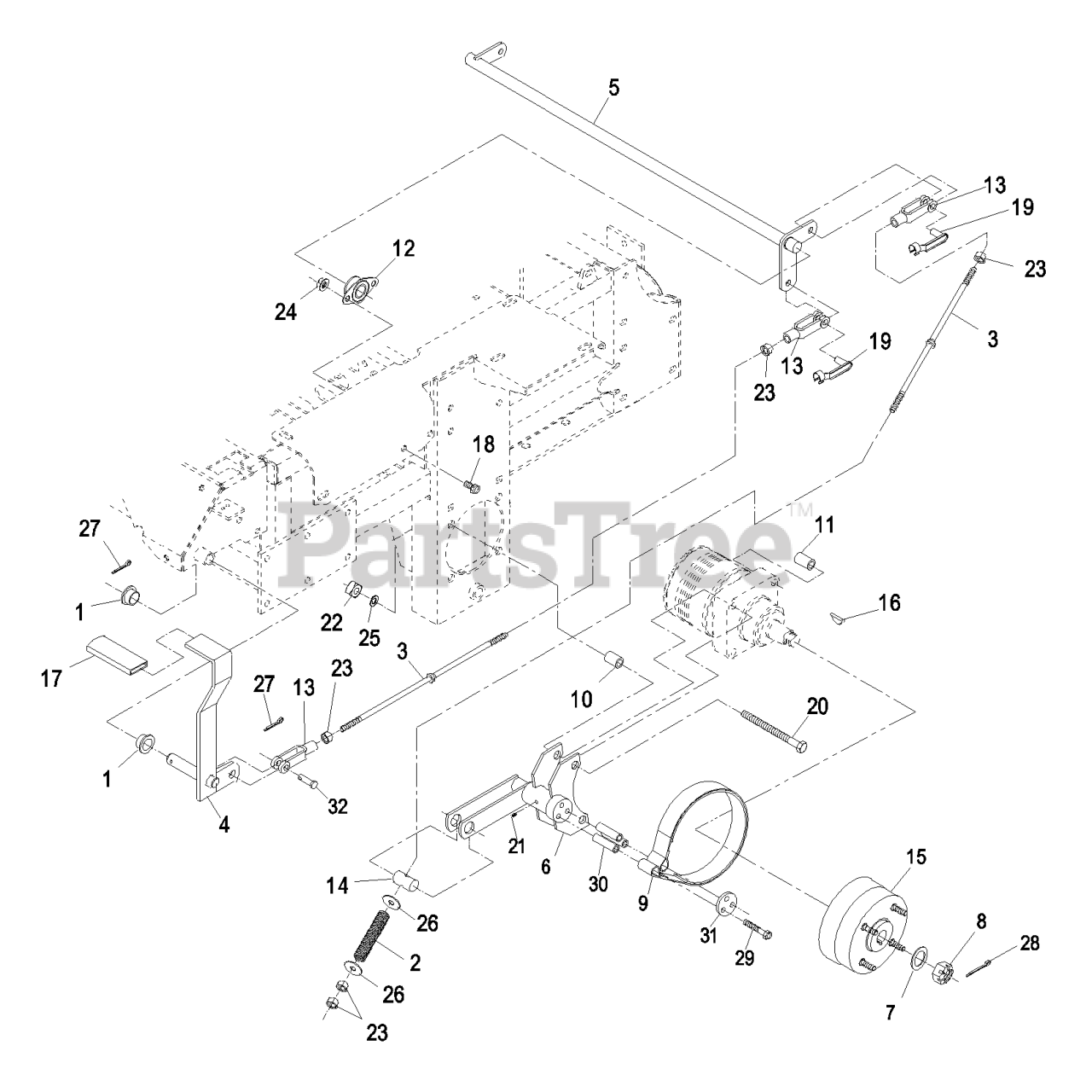

Park Brake Group Parts Diagram

  • Title

1

Exmark 1-513140

BEARING-CONTROL

$6.49

$

In Stock, Qty 8

0

2

Exmark 1-633454

SPRING-BRAKE

$11.99

$

In Stock, Qty 19

0

3

Exmark 1-633477

ROD-BRAKE

$20.99

$

In Stock, only 1 left!

0

4

Exmark 1-634500

BRAKE LEVER ASM

$78.99

$

Usually ships in 3-6 days

0

5

Exmark 1-632217-03

SHAFT-BRAKE

$180.99

$

Usually ships in 3-6 days

0

6

Exmark 103-0352-03

BRACKET-BRAKE

$230.99

$

Usually ships in 3-6 days

0

Exmark 103-0354-03

BRAKE BRACKET ASM

$227.99

$

Usually ships in 3-6 days

0

7

Exmark 1-523157

WASHER-SPACER

$1.99

$

In Stock, Qty 20+

0

8

Exmark 1-809036

NUT-HH

$39.99

$

In Stock, Qty 5

0

9

Exmark 103-0355

103-9761
(Superseded to 103-9761)

$49.99

$

In Stock, Qty 8

0

10

Exmark 103-6594

SPACER, WHEEL (SHORT)

$9.99

$

Usually ships in 3-6 days

0

Exmark 1-633060

SPACER-WHEEL, SHORT

Note: Not Illustrated.

$15.99

$

Usually ships in 3-6 days

0

11

Exmark 1-653381

SPACER,WHEEL

$10.99

$

Usually ships in 3-6 days

0

Exmark 1-633062

109-5012
(Superseded to 109-5012)

Note: Not Illustrated.

$29.99

$

In Stock, only 2 left!

0

12

Exmark 1-633102

BEARING-FLANGE, SIDE

$19.99

$

In Stock, only 3 left!

0

13

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$17.99

$

In Stock, Qty 6

0

14

Exmark 1-633144

PIN-TRUNION

$14.99

$

Usually ships in 3-6 days

0

15

Exmark 103-0590

WHEEL HUB ASM

$193.99

$

In Stock, Qty 10

0

Exmark 1-633926

STUD-WHEEL

Note: Not Illustrated.

$4.99

$

In Stock, Qty 20+

0

16

Exmark 3257-42

KEY-WOODRUFF

$6.99

$

In Stock, Qty 20+

0

17

Exmark 1-633268

GRIP-LEVER

$15.99

$

In Stock, Qty 11

0

18

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, Qty 14

0

19

Exmark 103-2399

PIN-SPRING, CLEVIS

$6.49

$

Usually ships in 3-6 days

0

20

Exmark 325-17

SCREW-HH

$6.49

$

In Stock, Qty 17

0

Exmark 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

21

Exmark 1481

FITTING-GREASE

$6.49

$

In Stock, Qty 6

0

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

22

Exmark 103-0131

109-5618
(Superseded to 109-5618)

Note: This component is required for all 52" & 60" units and 72" units with S/N 498,999 and lower.

$6.99

$

In Stock, Qty 9

0

Exmark 32128-49

NUT-HHF

Note: This component is required for all 72" units with S/N 499,000 and higher.

$1.99

$

In Stock, Qty 17

0

23

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

24

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

25

Exmark 3253-7

WASHER-LOCK

Note: This component is required for all 52" & 60" units and 72" units with S/N 498,999 and lower.

$1.49

$

In Stock, Qty 20+

0

26

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

27

Exmark 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

28

Exmark 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 15

0

29

Exmark 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

30

Exmark 103-0384

SPACER

$2.49

$

In Stock, only 4 left!

0

31

Exmark 103-0374

RETAINER-BAND, BRAKE

$5.49

$

In Stock, only 3 left!

0

32

Exmark 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 13

0
