LZ27LKA724 - Exmark 72" Lazer Z Zero-Turn Mower, 27hp Kawasaki (SN: 440000 - 509999) (2004) Engine Deck Group Parts Diagram

72" Lazer Z Zero-Turn Mower, 27hp Kawasaki

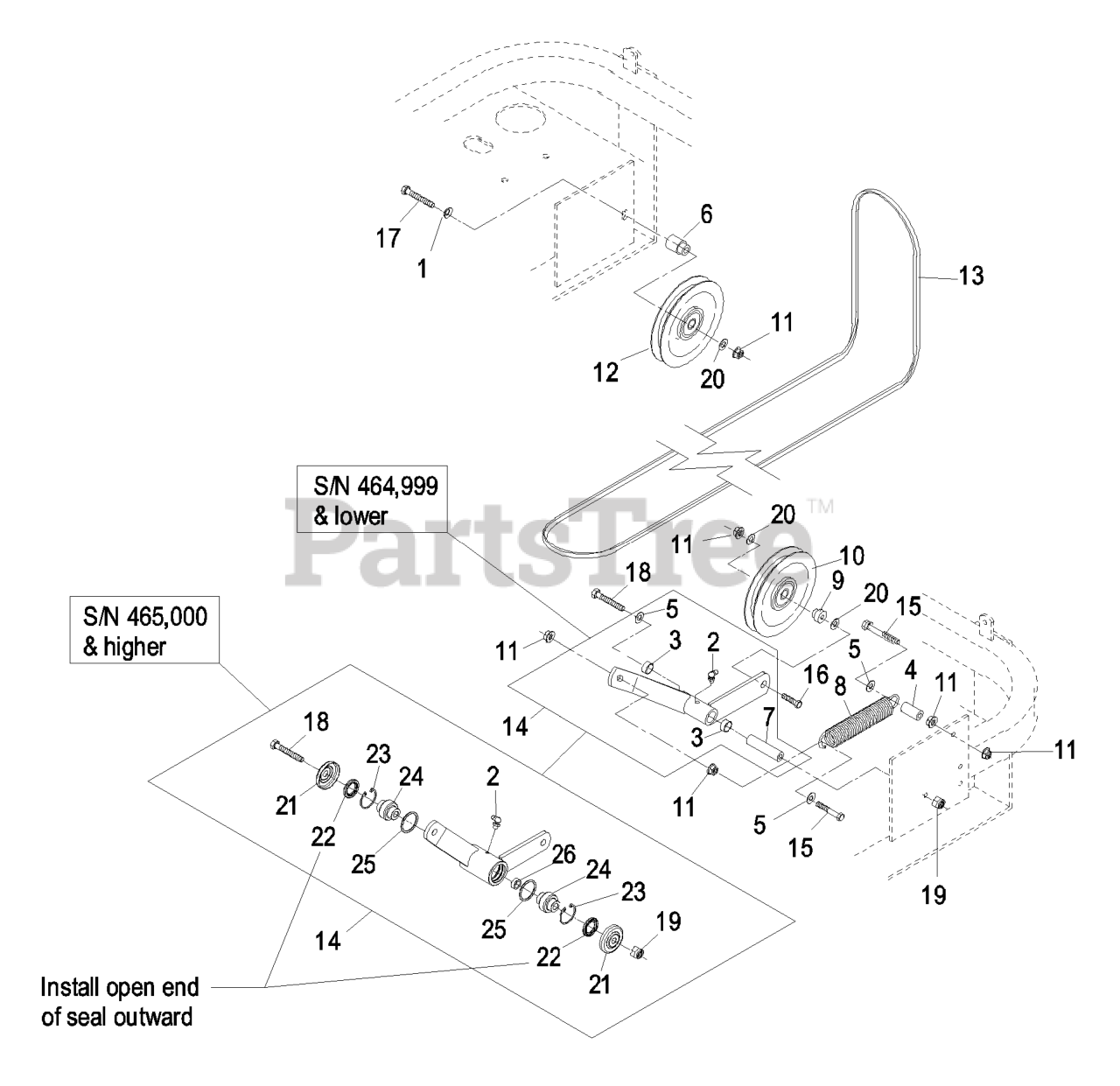

Engine Deck Group Parts Diagram

  • Title

1

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

2

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

3

Exmark 1-513034

SLEEVE-BEARING

Note: This component is required for units with 464,999 and lower.

$7.49

$

In Stock, Qty 20+

0

4

Exmark 1-603401

SPACER

$6.99

$

In Stock, Qty 8

0

5

Exmark 3256-4

WASHER-FLAT

Note: This component is required for units with 464,999 and lower.

$1.99

$

In Stock, Qty 20+

0

Exmark 3256-4

WASHER-FLAT

Note: This component is required for units with 465,000 and higher.

$1.99

$

In Stock, Qty 20+

0

6

Exmark 103-2627

BUSHING-IDLER

$3.49

$

In Stock, Qty 20+

0

7

Exmark 1-603384

BUSHING-PIVOT, IDLER

Note: This component is required for units with 464,999 and lower.

$14.99

$

In Stock, Qty 18

0

8

Exmark 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, only 3 left!

0

9

Exmark 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

10

Exmark 1-603805

PULLEY-IDLER

$54.99

$

In Stock, Qty 12

0

11

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Exmark 1-633166

PULLEY-IDLER

$56.99

$

In Stock, only 3 left!

0

13

Exmark 103-4014

BELT,B 116.1"
(Superseded to 103-4014-SL)

$104.99

$

In Stock, Qty 20+

0

14

Exmark 103-5695

KIT,MULE IDLER LZ

Note: 103-5695 kit includes components shown for S/N 465,000 and higher and services all serial numbers.

$125.99

$

In Stock, Qty 6

0

15

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

16

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

18

Exmark 1-800805

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

19

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

20

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

21

Exmark 103-2916

GUARD-TOP

Note: This component is required for units with 465,000 and higher.

$2.99

$

In Stock, Qty 9

0

22

Exmark 103-3506

SEAL-LIP, SINGLE

Note: This component is required for units with 465,000 and higher.

$5.49

$

In Stock, Qty 19

0

23

Exmark 32120-10

RING-SNAP

Note: This component is required for units with 465,000 and higher.

$1.49

$

In Stock, Qty 20+

0

24

Exmark 103-3504

BEARING-SPHERICAL

Note: This component is required for units with 465,000 and higher.

$25.99

$

In Stock, Qty 20+

0

25

Exmark 106-7159

O-RING

Note: This component is required for units with 465,000 and higher.

$1.49

$

In Stock, Qty 20+

0

26

Exmark 103-5677

SPACER

Note: This component is required for units with 465,000 and higher.

$2.99

$

In Stock, only 3 left!

0

Exmark 103-5695

KIT,MULE IDLER LZ

Note: includes components shown for S/N 465,000 and higher and services all serial numbers.

$125.99

$

In Stock, Qty 6

0
