Exmark LZ27LKA604 - Exmark 60" Lazer Z Zero-Turn Mower, 27hp Kawasaki (SN: 540000 - 599999) (2005) Front Frame Group Parts Lookup with Diagrams

1

Exmark 103-5474

KIT,FRONT FRAME LZ 60

Note: Includes frame weldment plus items #31, #34, #39, #49, #51, #55, #56, and #57.

$2932.99

$

Usually ships in 3-6 days

Exmark 103-5475

KIT,FRONT FRAME LZ 72

Note: Includes frame weldment plus items #31, #34, #39, #49, #51, #55, #56, and #57.

$3342.99

$

Usually ships in 3-6 days

2

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

3

Exmark 106-6572

PAD-ANTI SKID

$11.99

$

In Stock, Qty 7

4

Exmark 1-633553

PAD-ANTISKID

$13.99

$

In Stock, only 4 left!

5

Exmark 103-2084

LIFT LEVER/GRIP ASM

$77.99

$

Usually ships in 3-6 days

6

Exmark 1-633295

GRIP-LEVER, LIFT

$7.99

$

In Stock, only 3 left!

7

Exmark 103-2064-03

ARM-LIFT, DECK

$76.99

$

Usually ships in 3-6 days

8

Exmark 1-633325

SPRING-COMPRESSION

$5.49

$

Usually ships in 3-6 days

9

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

10

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

11

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 7

12

Exmark 1-633068

ARM-LIFT, DECK

$11.99

$

Usually ships in 3-6 days

13

Exmark 1-633889-01

PLATE-LIFT, DECK

$

Not available 

14

Exmark 1-632899-01

PLATE-LIFT, DECK

$

Not available 

15

Exmark 1-633082

BUSHING-LEVER, LIFT

$11.99

$

Usually ships in 3-6 days

16

Exmark 1-633080

BUSHING-LEVER, LIFT

$10.99

$

Usually ships in 3-6 days

17

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, only 4 left!

18

Exmark 1-633097

PIN-HITCH (W/LANYARD)

$23.99

$

In Stock, only 2 left!

19

Exmark 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

20

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

21

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

22

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

23

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

24

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

25

Exmark 3256-29

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

26

Exmark 1-633096

ROD-LIFT, DECK

$23.99

$

In Stock, only 3 left!

27

Exmark 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 14

Exmark 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 14

28

Exmark 1-633441

SWIVEL-DECK MOUNT, REAR

$27.99

$

Usually ships in 3-6 days

29

Exmark 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

30

Exmark 1-633064

SPRING-SUPPORT, DECK

$33.99

$

In Stock, only 1 left!

Exmark 1-643015

SPRING-SUPPORT, DECK

$42.99

$

Usually ships in 3-6 days

31

Exmark 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

32

Exmark 3218-6

NUT-JAM

$6.49

$

In Stock, Qty 10

Exmark 3218-6

NUT-JAM

$6.49

$

In Stock, Qty 10

33

Exmark 103-3528

ASM,LIFTOUT FLOORPAN/PAD

$221.99

$

Usually ships in 3-6 days

34

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 19

35

Exmark 103-1474-01

116-8888

(Superseded to 116-8888) 

$185.99

$

In Stock, Qty 7

36

Exmark 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 10

37

Exmark 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

38

Exmark 325-39

SCREW-HH

$18.99

$

In Stock, Qty 18

39

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 11

40

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

41

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

42

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

43

Exmark 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 6

44

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$21.99

$

In Stock, Qty 12

45

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

46

Exmark 103-5156

126-5361

(Superseded to 126-5361) 

$19.99

$

In Stock, only 2 left!

47

Exmark 103-1918

BUSHING

$7.99

$

In Stock, Qty 6

48

Exmark 323-29

SCREW-HH

$0.99

$

In Stock, Qty 6

49

Exmark 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 16

50

Exmark 3274-18

SCREW-HSH

$9.49

$

In Stock, Qty 7

51

Exmark 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 15

52

Exmark 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on spacer nut, Item #52.

$9.49

$

In Stock, Qty 12

53

Exmark 103-3799

109-9127

(Superseded to 109-9127) 

$341.99

$

In Stock, Qty 5

54

Exmark 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

55

Exmark 103-1955-01

WLD, FRONT LIFT SHAFT - L

$135.99

$

Usually ships in 3-6 days

56

Exmark 103-2013-01

WLD, FRONT LIFT W/ LEVER

$135.99

$

Usually ships in 3-6 days

57

Exmark 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

58

Exmark 1-634439

FRONT FRAME SPRING ASM

$70.99

$

In Stock, Qty 13

Exmark 103-2047

FRONT FRAME SPRING ASM

$80.99

$

Usually ships in 3-6 days

59

Exmark 103-3527

DISCONTINUED

$

Not available 

60

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

Exmark 1-850337

PAINT,SPRAY RED

$27.99

$

In Stock, Qty 16

Exmark 103-9140

PAINT, TOUCH UP

$21.99

$

In Stock, only 1 left!

Exmark 1-840022

PRO-LOCK,NUT TYPE

$18.99

$

Usually ships in 3-6 days

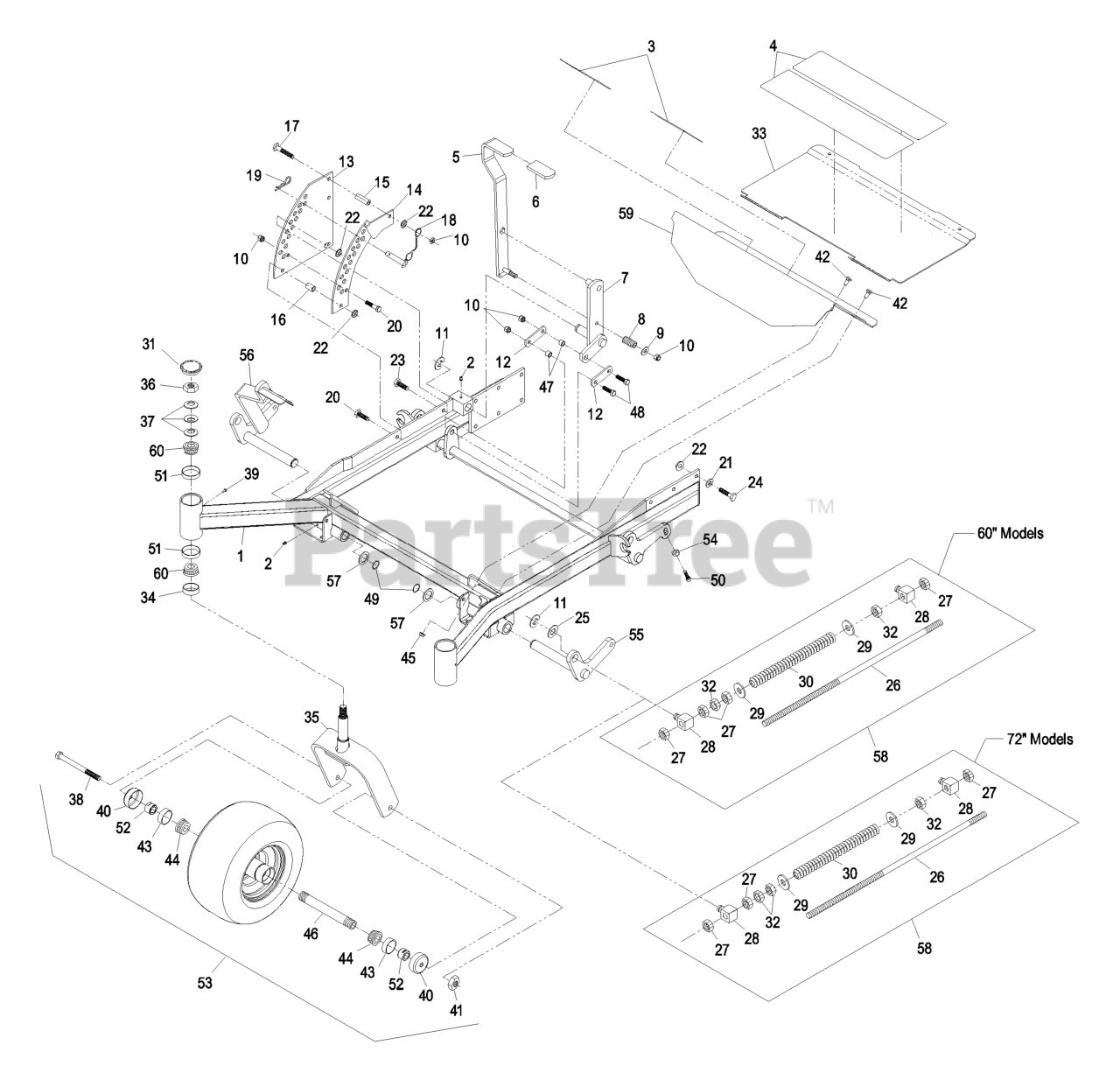

LZ27LKA604 - Exmark 60" Lazer Z Zero-Turn Mower, 27hp Kawasaki (SN: 540000 - 599999) (2005) Front Frame Group Parts Diagram

Front Frame Group Parts Diagram
