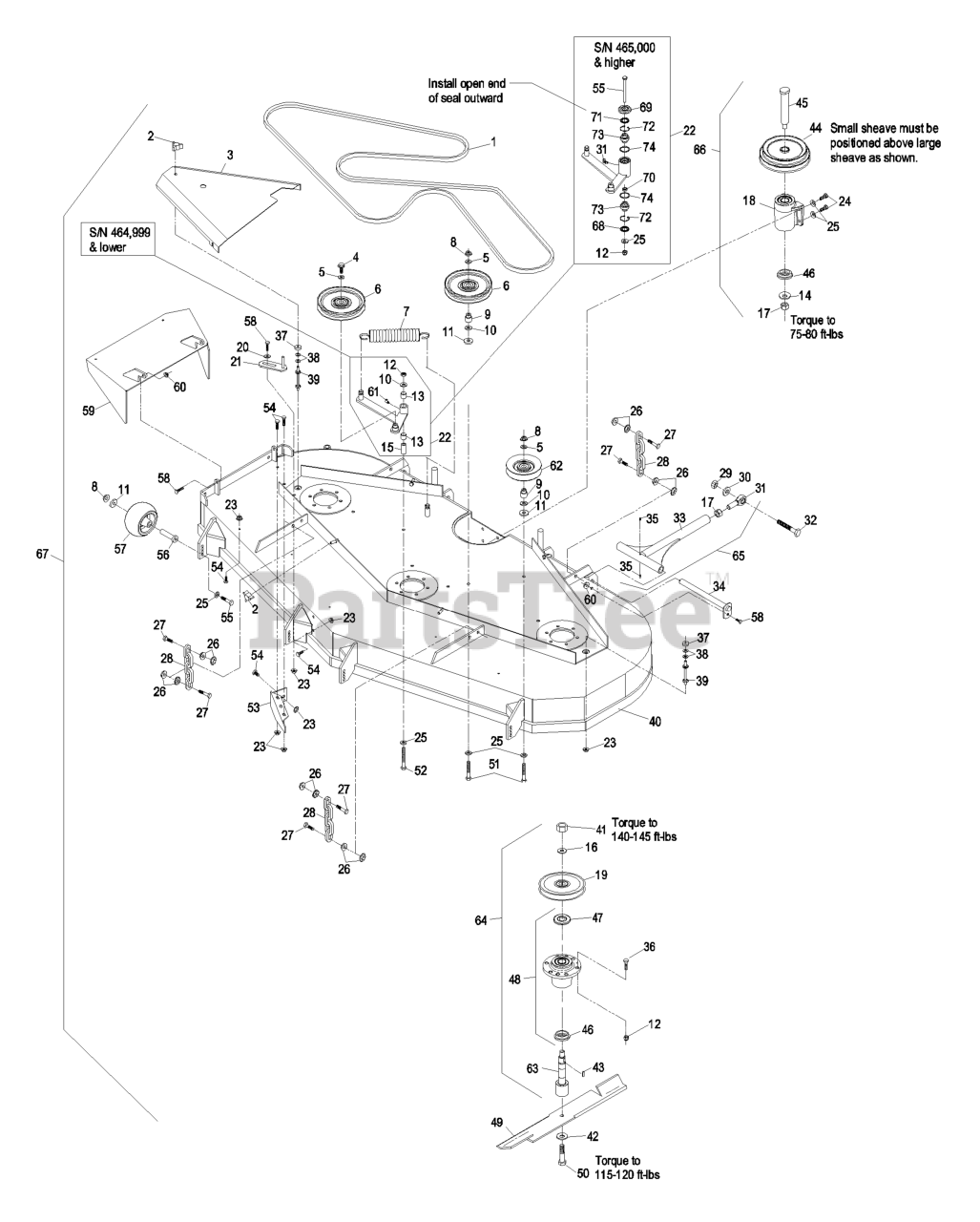

LZ27LKA604 - Exmark 60" Lazer Z Zero-Turn Mower, 27hp Kawasaki (SN: 440000 - 509999) (2004) Deck Group 72" Parts Diagram

Exmark 1-643052

Exmark 1-323385

Exmark 1-643076-01

Note: (Shown)

Exmark 1-643075-01

Exmark 3234-11

Exmark 3256-24

Exmark 1-633109

Exmark 103-3330

Exmark 3290-357

Exmark 1-633456

Exmark 3256-4

Note: This component is required for units with 464,999 and lower.

Exmark 3256-4

Note: This component is required for units with 465,000 and higher.

Exmark 1-373034

Exmark 3296-39

Exmark 103-4681

Note: This component is required for units with 464,999 and lower.

Exmark 1-513208

Exmark 1-603044

Note: This component is required for units with 464,999 and lower.

Exmark 103-2802

Exmark 3219-6

Exmark 103-2544

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

Exmark 103-2795

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

Exmark 1-303334

Exmark 1-322110

Exmark 103-5693

Note: 103-5693 kit includes components shown for S/N 465,000 and higher and services all serial numbers.

Exmark 32128-20

Exmark 323-6

Exmark 98-5975

Exmark 32128-37

Exmark 103-1898

Exmark 1-633447

Exmark 3217-11

Exmark 3253-8

Exmark 1-633029

Exmark 327-11

Exmark 103-1073-01

Exmark 1-632199-01

Exmark 302-19

Exmark 323-8

Exmark 1-323417

Exmark 3256-3

Exmark 1-303537

Exmark 103-1591

Exmark 3217-46

Exmark 103-0865

Exmark 103-2982

Exmark 103-3046

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

Exmark 1-643393

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

Exmark 103-2535

Exmark 103-1330

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

Exmark 103-2547

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

Exmark 103-2531

Exmark 103-2521

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK724.

Exmark 103-2511

Exmark 103-1581

Exmark 103-0862

Exmark 323-11

Exmark 323-13

Note: This component is required for units with 464,999 and lower.

Exmark 1-602913-01

Exmark 322-2

Exmark 98-5961

Note: This component is required for units with 464,999 and lower.

Exmark 98-5961

Note: This component is required for units with 465,000 and higher.

Exmark 1-603602

Exmark 1-603299

Note: Kit 103-3168 includes antiscalp roller, bushing, & mounting hardware.

Exmark 322-5

Exmark 1-642071-01

Exmark 3296-29

Exmark 302-40

Exmark 1-603805

Exmark 103-2785

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

Exmark 103-3206

Note: Complete cutter housing assembly also includes items #42 & #50.

Exmark 103-1083

Exmark 103-3249

Exmark 103-3259

Note: Complete deck assembly excludes items #26, #27, #28, and #65 and includes mule drive belt from "Engine Deck Group"

Exmark 103-3505

Note: This component is required for units with 465,000 and higher.

Exmark 103-2916

Note: This component is required for units with 465,000 and higher.

Exmark 103-5677

Note: This component is required for units with 465,000 and higher.

Exmark 103-3506

Note: This component is required for units with 465,000 and higher.

Exmark 32120-10

Note: This component is required for units with 465,000 and higher.

Exmark 103-3504

Note: This component is required for units with 465,000 and higher.

Exmark 106-7159

Note: This component is required for units with 465,000 and higher.

Exmark 1-850337

Exmark 103-5217

Exmark 103-3168

Exmark MK724
