LZ27KC724 - Exmark 72" Lazer Z Zero-Turn Mower, 27hp Kohler (SN: 540000 - 599999) (2005) Engine Deck Group Parts Diagram

72" Lazer Z Zero-Turn Mower, 27hp Kohler

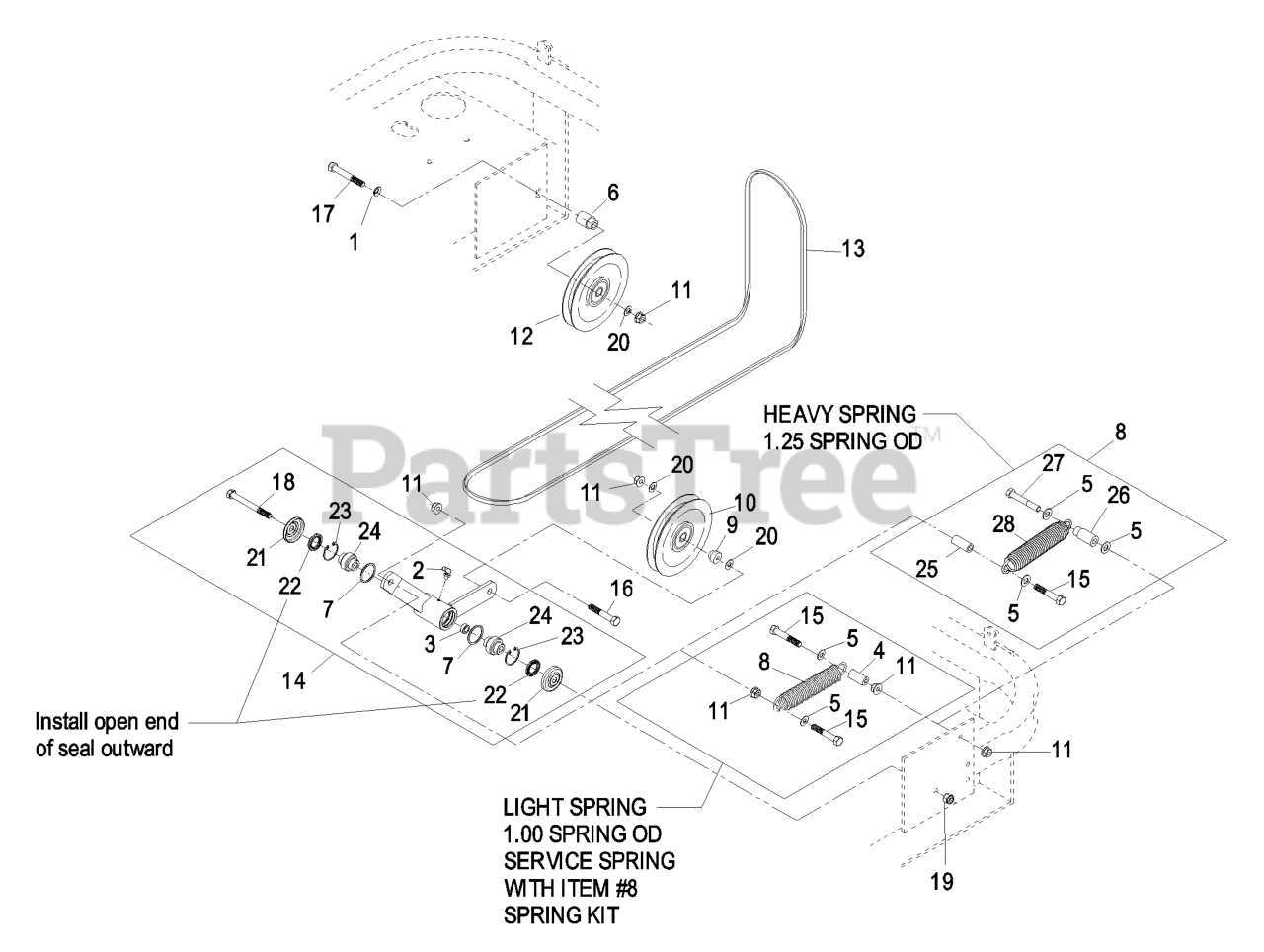

Engine Deck Group Parts Diagram

  • Title

1

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

2

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 13

0

3

Exmark 103-5677

SPACER

$2.99

$

In Stock, Qty 9

0

4

Exmark 1-603401

SPACER

$7.49

$

In Stock, Qty 14

0

5

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

6

Exmark 103-2627

BUSHING-IDLER

$3.99

$

In Stock, Qty 20+

0

7

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 13

0

8

Exmark 103-9020

DISCONTINUED

Note: Kit includes items #5 (3), #11 (2), #15 (1), #25, #26, #27 & #28.

$

$

Not available

9

Exmark 1-603496

BUSHING-IDLER

$7.99

$

In Stock, Qty 20+

0

10

Exmark 1-603805

PULLEY-IDLER

$58.99

$

In Stock, Qty 20+

0

11

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Exmark 1-633166

PULLEY-IDLER

$60.99

$

In Stock, Qty 20+

0

13

Exmark 103-4014

BELT,B 116.1"
(Superseded to 103-4014-SL)

$109.99

$

In Stock, Qty 20+

0

14

Exmark 103-5695

KIT,MULE IDLER LZ

Note: Kit also includes item #19.

$131.99

$

In Stock, Qty 5

0

15

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

16

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

18

Exmark 1-800805

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

19

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

20

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 10

0

22

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

Usually ships in 3-6 days

0

23

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 5

0

24

Exmark 103-3504

BEARING-SPHERICAL

$26.99

$

In Stock, Qty 20+

0

25

Exmark 1-633082

BUSHING-LEVER, LIFT

$12.99

$

In Stock, only 2 left!

0

26

Exmark 1-653366

HUB

$26.99

$

In Stock, Qty 6

0

27

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

28

Exmark 103-8599

116-6316
(Superseded to 116-6316)

$25.99

$

In Stock, Qty 20+

0
