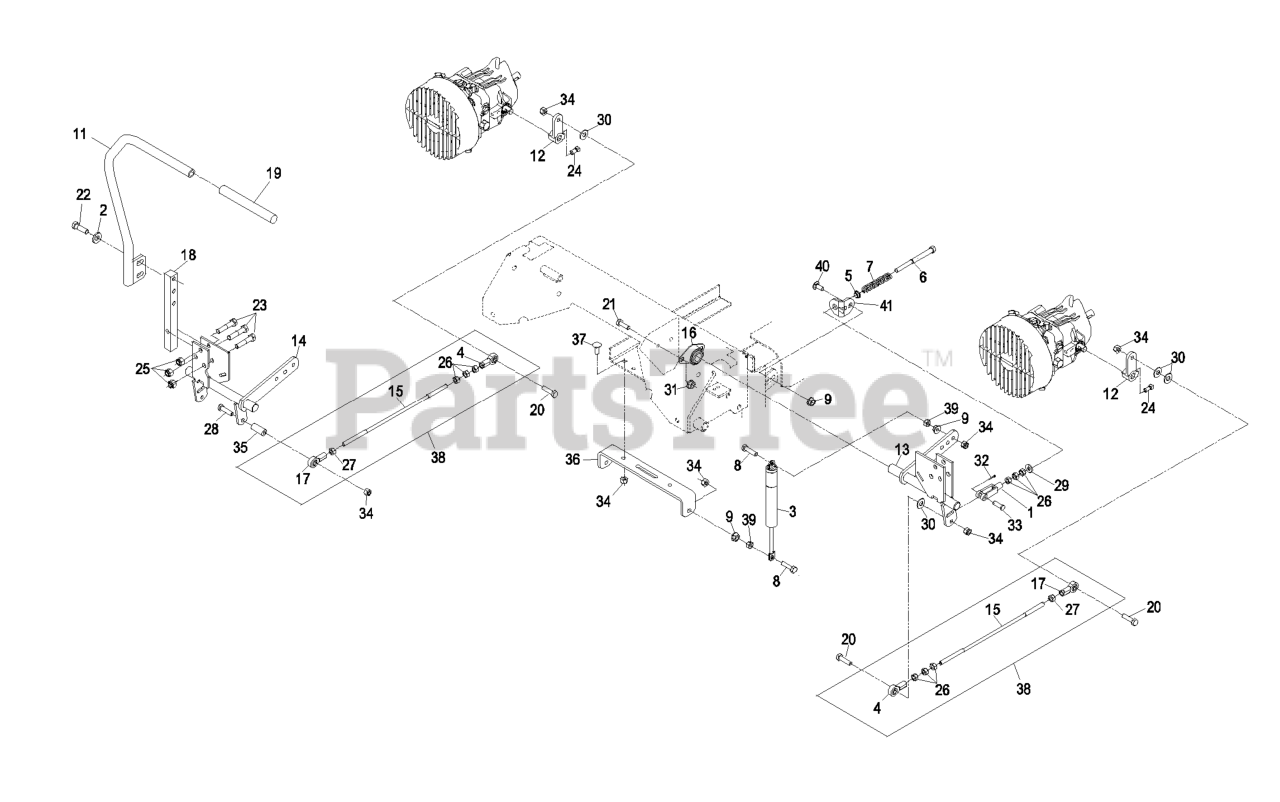

LZ27KC604 - Exmark 60" Lazer Z Zero-Turn Mower, 27hp Kohler (SN: 720000 - 789999) (2008) Motion Control Group Parts Diagram

60" Lazer Z Zero-Turn Mower, 27hp Kohler

Motion Control Group Parts Diagram

  • Title

1

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

2

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

3

Exmark 109-2339

DAMPER-CONTROL, MOTION

$76.99

$

In Stock, only 3 left!

0

4

Exmark 1-543017

BALLJOINT-RH

Note: (RH)

$20.99

$

In Stock, only 4 left!

0

5

Exmark 109-3769

BUSHING-NYLON, FLANGED

Note: (Reverse Ind)

$

$

Not available

6

Exmark 1-603737

BOLT-RETURN, NEUTRAL

Note: (Neutral Return)

$9.49

$

In Stock, only 2 left!

0

7

Exmark 1-603807

SPRING-RETURN, NEUTRAL

Note: (Neutral Return)

$3.49

$

In Stock, Qty 17

0

8

Exmark 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

9

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Exmark 103-3457

ASM,LH LEVER/GRIP

Note: (103-3326-03) (LH) Not Illustrated.

$86.99

$

In Stock, only 2 left!

0

11

Exmark 103-3458

ASM.RH LEVER/GRIP

Note: (103-3327-03) (RH)

$86.99

$

In Stock, only 2 left!

0

12

Exmark 1-632208

ARM-CONTROL, PUMP

$28.99

$

In Stock, Qty 20+

0

13

Exmark 109-3902

CONTROL-MOTION, LH

Note: (LH)

$106.99

$

Usually ships in 3-6 days

0

14

Exmark 109-3901

109-3907
(Superseded to 109-3907)

Note: (RH)

$124.99

$

Usually ships in 3-6 days

0

15

Exmark 103-3064

LINK-ROD, TRACKING

$42.99

$

In Stock, only 1 left!

0

16

Exmark 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

17

Exmark 1-633152

BALLJOINT-LH

Note: (LH)

$20.99

$

In Stock, only 3 left!

0

18

Exmark 103-0407

ARM-SHAFT, CONTROL

$30.99

$

In Stock, only 2 left!

0

19

Exmark 103-3456

GRIP,CONTROL LEVER

$15.99

$

In Stock, Qty 7

0

20

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

21

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

22

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

23

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Exmark 1-803022

SCREW-SET

Note: Use Pro-lock, Nut type (Part No. 1-840022), .5ml tube on setscrews.

$2.99

$

In Stock, Qty 20+

0

25

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

26

Exmark 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

27

Exmark 1-804524

NUT

Note: (LH)

$2.99

$

In Stock, only 2 left!

0

28

Exmark 322-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

29

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

30

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

32

Exmark 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

33

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

34

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

35

Exmark 103-0384

SPACER

$1.99

$

In Stock, Qty 6

0

36

Exmark 109-6058-03

BRACKET-MOUNT, DAMPER

$41.99

$

Usually ships in 3-6 days

0

37

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

38

Exmark 103-4331

TRACKING ROD ASM

$74.99

$

Usually ships in 3-6 days

0

39

Exmark 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

40

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

41

Exmark 109-3908

TAB-ADJUSTMENT

$6.49

$

Usually ships in 3-6 days

0
