LZ27KC604 - Exmark 60" Lazer Z Zero-Turn Mower, 27hp Kohler (SN: 720000 - 789999) (2008) Mainframe Group Parts Diagram

60" Lazer Z Zero-Turn Mower, 27hp Kohler

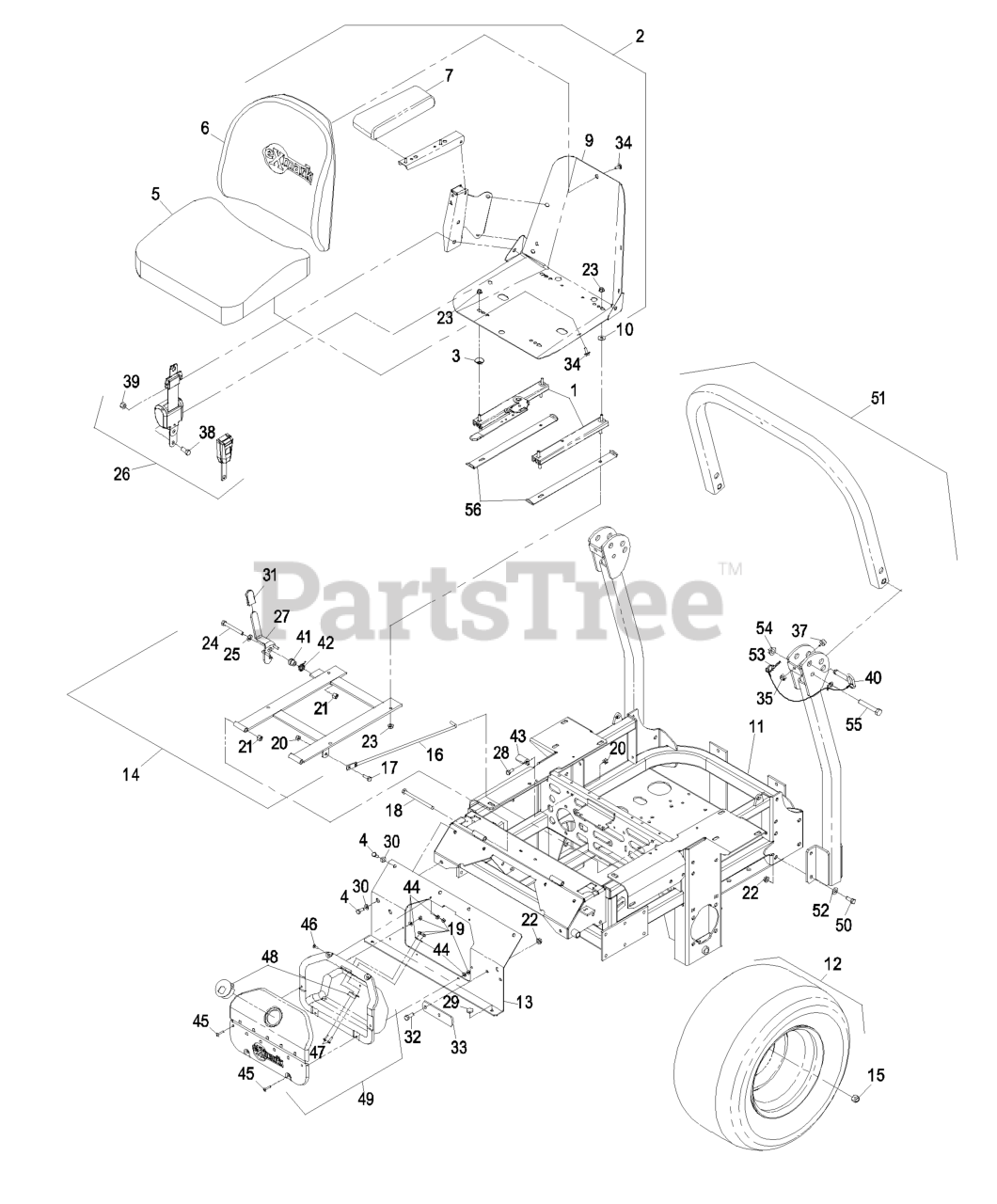

Mainframe Group Parts Diagram

  • Title

1

Exmark 1-643255

TRACK-SEAT

Note: (4" Adjustable)

$217.99

$

In Stock, only 2 left!

0

Exmark 103-8386

116-1685
(Superseded to 116-1685)

$36.99

$

In Stock, only 1 left!

0

2

Exmark 103-3524

KIT,SEAT W/ARMREST ADJ.

Note: Includes armrests and seat back decal. Does not include seat belt or tracks.

$686.99

$

In Stock, only 1 left!

0

3

Exmark 1-543401

SPACER-TRACK

$5.49

$

In Stock, Qty 8

0

4

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Exmark 103-3521

CUSHION,SEAT BOTTOM

$259.99

$

In Stock, Qty 5

0

6

Exmark 103-3520

CUSHION,SEAT BACK

$235.99

$

In Stock, only 1 left!

0

7

Exmark 103-0292

CUSHION,ARMREST RH

Note: (RH)

$98.99

$

In Stock, only 2 left!

0

8

Exmark 103-0291

CUSHION,ARMREST LH

Note: (LH) Not illustrated.

$98.99

$

In Stock, only 4 left!

0

9

Exmark 1-633859

FRAME-SEAT

$191.99

$

In Stock, only 3 left!

0

10

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Exmark 109-6672

ASM,MAINFRAME W/DECAL

Note: (109-6128-03)

$

$

Not available

12

Exmark 109-3158

WHEEL AND TIRE ASM

$

$

Not available

Exmark 103-2744

TIRE

$326.99

$

In Stock, only 4 left!

0

Exmark 109-3156

RIM

$243.99

$

In Stock, Qty 10

0

13

Exmark 109-2075

ASM, CONSOLE W/DECALS

Note: (103-8273-03)

$255.99

$

Usually ships in 3-6 days

0

14

Exmark 103-4423

ASM,SEAT FRAME

$218.99

$

Usually ships in 3-6 days

0

15

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

16

Exmark 1-633293

ROD-HOLDUP, SEAT

$16.99

$

Usually ships in 3-6 days

0

17

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Exmark 323-39

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

19

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

22

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

24

Exmark 323-20

SCREW-HH

$3.99

$

In Stock, Qty 12

0

25

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Exmark 110-0883

RETRACTABLE SEATBELT KIT

$274.99

$

Usually ships in 3-6 days

0

27

Exmark 107-3083

LATCH ASM

$30.99

$

Usually ships in 3-6 days

0

28

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Exmark 1-513658

BUMPER

$6.49

$

In Stock, only 4 left!

0

30

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

31

Exmark 103-4434

GRIP-LEVER

$2.99

$

In Stock, Qty 5

0

32

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

33

Exmark 1-633964-03

STOP-BRAKE, PARK

$12.99

$

Usually ships in 3-6 days

0

34

Exmark 103-8383

BOLT-SEAT

$2.99

$

Usually ships in 3-6 days

0

35

Exmark 3296-73

NUT-LOCK, NI

Note: (black)

$5.49

$

In Stock, Qty 8

0

36

Exmark 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

37

Exmark 109-2365

BUMPER-RUBBER

$5.49

$

In Stock, Qty 13

0

38

Exmark 3212-4

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

39

Exmark 3296-7

NUT-LOCK

$3.99

$

Usually ships in 3-6 days

0

40

Exmark 103-4553

PIN-FOLD, ROPS

Note: Includes ROPS fold pin plus hairpin, item #53.

$79.99

$

In Stock, only 2 left!

0

41

Exmark 107-0075

BUSHING-LATCH, SEAT

$5.49

$

Usually ships in 3-6 days

0

42

Exmark 107-0076

SPRING-TORSION

$13.99

$

Usually ships in 3-6 days

0

43

Exmark 107-3058

CATCH-LATCH, SEAT

$7.99

$

Usually ships in 3-6 days

0

44

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

45

Exmark 32122-28

SCREW

$5.99

$

Usually ships in 3-6 days

0

46

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

47

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

48

Exmark 103-3790

LATCH,CUBBY

$50.99

$

Usually ships in 3-6 days

0

49

Exmark 103-3666

ASM,CUBBY

$181.99

$

Usually ships in 3-6 days

0

50

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

51

Exmark 103-8436

KIT, ROPS LZ >510,000

Note: Rollover protection frame is serviced as a complete assembly only. Includes complete ROPS frame, mounting hardware, fold pivot and locking hardware, seat frame assembly item #14, catch item #43, and seat belt assembly item #26.

$512.99

$

Usually ships in 3-6 days

0

52

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

53

Exmark 107-3155

HAIRPIN

$6.49

$

Usually ships in 3-6 days

0

54

Exmark 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

55

Exmark 325-13

SCREW-HH

$0.99

$

In Stock, only 2 left!

0
