LZ27KC604 - Exmark 60" Lazer Z Zero-Turn Mower, 27hp Kohler (SN: 720000 - 789999) (2008) Hydraulics Group Parts Diagram

60" Lazer Z Zero-Turn Mower, 27hp Kohler

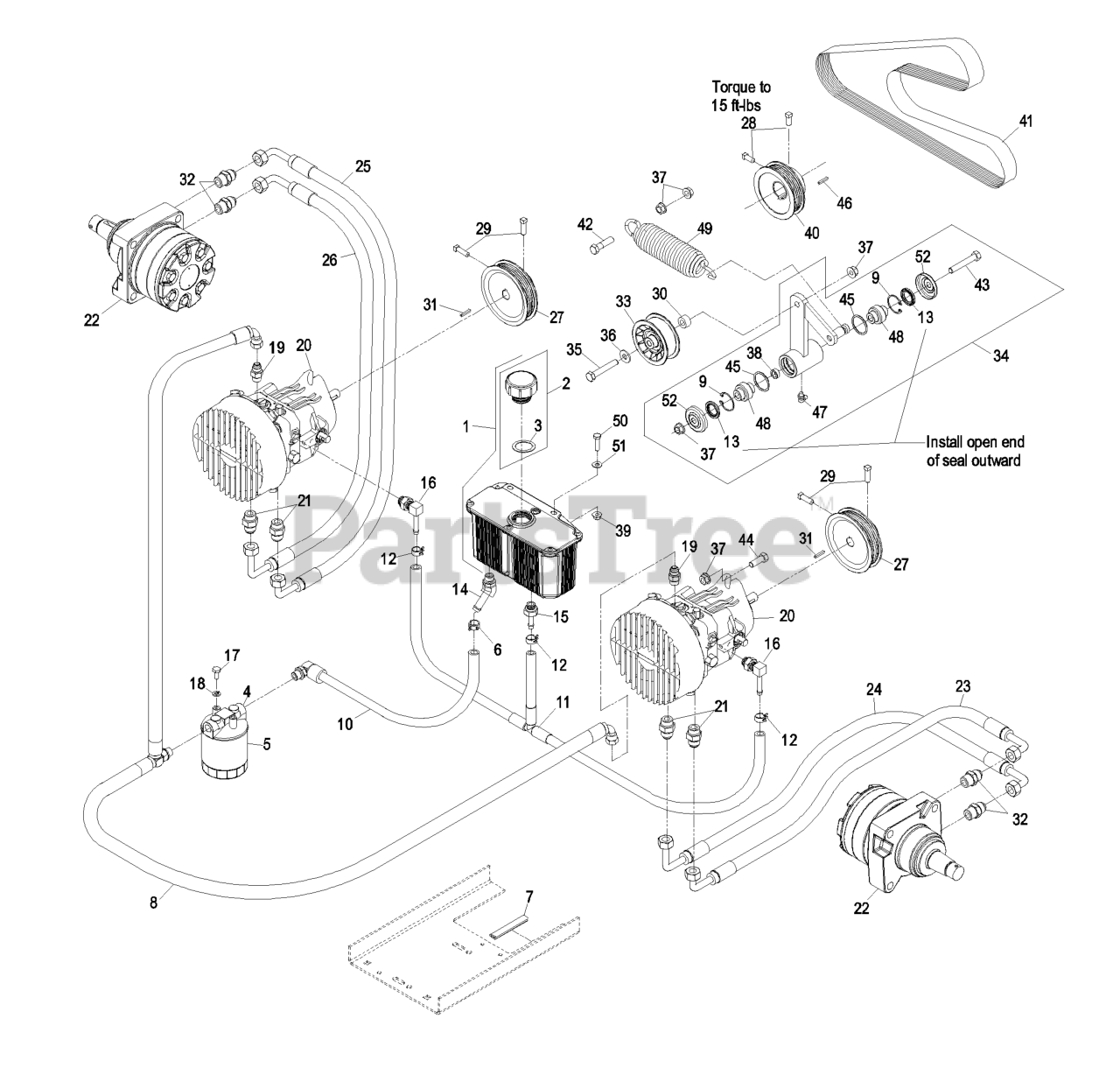

Hydraulics Group Parts Diagram

  • Title

1

Exmark 103-1947

HYD RESERVOIR ASM

$263.99

$

Usually ships in 3-6 days

0

2

Exmark 103-7615

KIT,HYD RES CAP W/GASKET

$27.99

$

In Stock, only 2 left!

0

3

Exmark 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 9

0

4

Exmark 104-7836

HEAD-FILTER

$18.99

$

In Stock, only 3 left!

0

5

Exmark 109-4180

FILTER-25 MICRON, BI-DIRE

$47.99

$

In Stock, Qty 16

0

Exmark 1-523541

ELEMENT-FILTER, WINTER

Note: (Winter) Use only for operation below 32°F (0°C).

$47.99

$

In Stock, only 1 left!

0

6

Exmark 103-1988

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

7

Exmark 105-7699

STRIP-SEAL

$9.49

$

In Stock, Qty 20+

0

8

Exmark 109-6273

HYD HOSE ASM

$126.99

$

Usually ships in 3-6 days

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$2.99

$

In Stock, Qty 9

0

9

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

10

Exmark 109-7689

HYD HOSE ASM

$45.99

$

Usually ships in 3-6 days

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$2.99

$

In Stock, Qty 9

0

11

Exmark 103-1806

HYD HOSE ASM

$43.99

$

In Stock, only 1 left!

0

12

Exmark 103-1716

CLAMP-HOSE

$1.49

$

In Stock, Qty 11

0

13

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 19

0

14

Exmark 103-1807

FITTING-BARBED, 45 DEG

$28.99

$

Usually ships in 3-6 days

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$2.99

$

In Stock, Qty 9

0

15

Exmark 103-1801

ADAPTER-STRAIGHT

$30.99

$

In Stock, only 1 left!

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$2.99

$

In Stock, Qty 9

0

16

Exmark 103-1799

ELBOW-90 DEG

$29.99

$

In Stock, only 1 left!

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$2.99

$

In Stock, Qty 9

0

17

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

0

19

Exmark 103-2156

FITTING-STRAIGHT

$42.99

$

In Stock, only 4 left!

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$2.99

$

In Stock, Qty 9

0

Exmark 103-1020

O-RING

Note: (37° Flare #6)

$1.49

$

Usually ships in 3-6 days

0

20

Exmark 109-6130

116-2445
(Superseded to 116-2445)

$1313.99

$

In Stock, only 1 left!

0

Exmark 103-7441

104-5311
(Superseded to 104-5311)

$44.99

$

In Stock, Qty 5

0

Exmark 103-8448

94-6922
(Superseded to 94-6922)

$62.99

$

In Stock, only 3 left!

0

Exmark 103-7443

CYLINDER BLOCK KIT

$351.99

$

Usually ships in 3-6 days

0

Exmark 105-6184

SEAL OVERHAUL KIT

$84.99

$

In Stock, Qty 7

0

Exmark 103-7488

PUMP-COOLING

$74.99

$

In Stock, only 1 left!

0

Exmark 103-7489

GUARD-PUMP

$88.99

$

In Stock, only 3 left!

0

Exmark 103-2672

103-2741
(Superseded to 103-2741)

Note: (200 Bar, no orifice)

$

$

Not available

Exmark 112-4155

SHOCK VALVE KIT

Note: (200 Bar, 031 orifice)

$158.99

$

Usually ships in 3-6 days

0

21

Exmark 1-603990

FITTING-STRAIGHT

$18.99

$

In Stock, Qty 15

0

Exmark 1-603920

O-RING

Note: (SAE #8)

$3.99

$

In Stock, Qty 20+

0

Exmark 1-603992

O-RING

Note: (37° Flare #8)

$2.99

$

In Stock, Qty 20+

0

22

Exmark 1-523328

MOTOR-WHEEL

Note: (TF Style)

$1375.99

$

Usually ships in 3-6 days

0

Exmark 103-6995

OUTPUT SHAFT AND SEALS KI

$676.99

$

Usually ships in 3-6 days

0

Exmark 103-6994

SEAL KIT

$330.99

$

Usually ships in 3-6 days

0

23

Exmark 103-3733

HYD HOSE ASM

$104.99

$

In Stock, only 1 left!

0

24

Exmark 103-3735

HYD HOSE ASM

$104.99

$

In Stock, only 1 left!

0

25

Exmark 103-3736

HYD HOSE ASM

$104.99

$

In Stock, only 1 left!

0

26

Exmark 103-3737

HYD HOSE ASM

$104.99

$

In Stock, only 1 left!

0

27

Exmark 109-6046

SHEAVE

$209.99

$

Usually ships in 3-6 days

0

28

Exmark 1-803050

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, 5 ml tube) on setscrews.

$2.99

$

In Stock, Qty 8

0

29

Exmark 30-1710

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, 5 ml tube) on setscrews.

$10.99

$

In Stock, only 2 left!

0

30

Exmark 1-603050

SPACER

$7.99

$

In Stock, only 2 left!

0

31

Exmark 5-1077

KEY-SQUARE

$6.99

$

In Stock, only 3 left!

0

32

Exmark 1-603991

FITTING-STRAIGHT

$21.99

$

In Stock, only 2 left!

0

Exmark 1-603919

O-RING

$3.49

$

In Stock, Qty 10

0

Exmark 1-603992

O-RING

Note: (37° Flare #8)

$2.99

$

In Stock, Qty 20+

0

33

Exmark 109-4076

PULLEY-FLAT IDLER

$17.99

$

In Stock, only 1 left!

0

34

Exmark 103-5694

KIT,PUMP IDLER LZ

Note: (103-4595-03)

$141.99

$

In Stock, only 1 left!

0

35

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

36

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

37

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

38

Exmark 103-5677

SPACER

$2.99

$

In Stock, only 3 left!

0

39

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

40

Exmark 109-7738

SHEAVE

$93.99

$

Usually ships in 3-6 days

0

41

Exmark 109-6112

BELT
(Superseded to 109-6112-SL)

$37.99

$

Usually ships in 3-6 days

0

42

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

43

Exmark 1-800805

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

44

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

45

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

46

Exmark 13-2840

KEY-SQUARE

$1.99

$

In Stock, Qty 5

0

47

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

48

Exmark 103-3504

BEARING-SPHERICAL

$25.99

$

In Stock, Qty 20+

0

49

Exmark 103-3330

116-6317
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 7

0

50

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

51

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

52

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0
