LZ27KC604 - Exmark 60" Lazer Z Zero-Turn Mower, 27hp Kohler (SN: 540000 - 599999) (2005) Engine Deck Group (Cont.) Parts Diagram

60" Lazer Z Zero-Turn Mower, 27hp Kohler

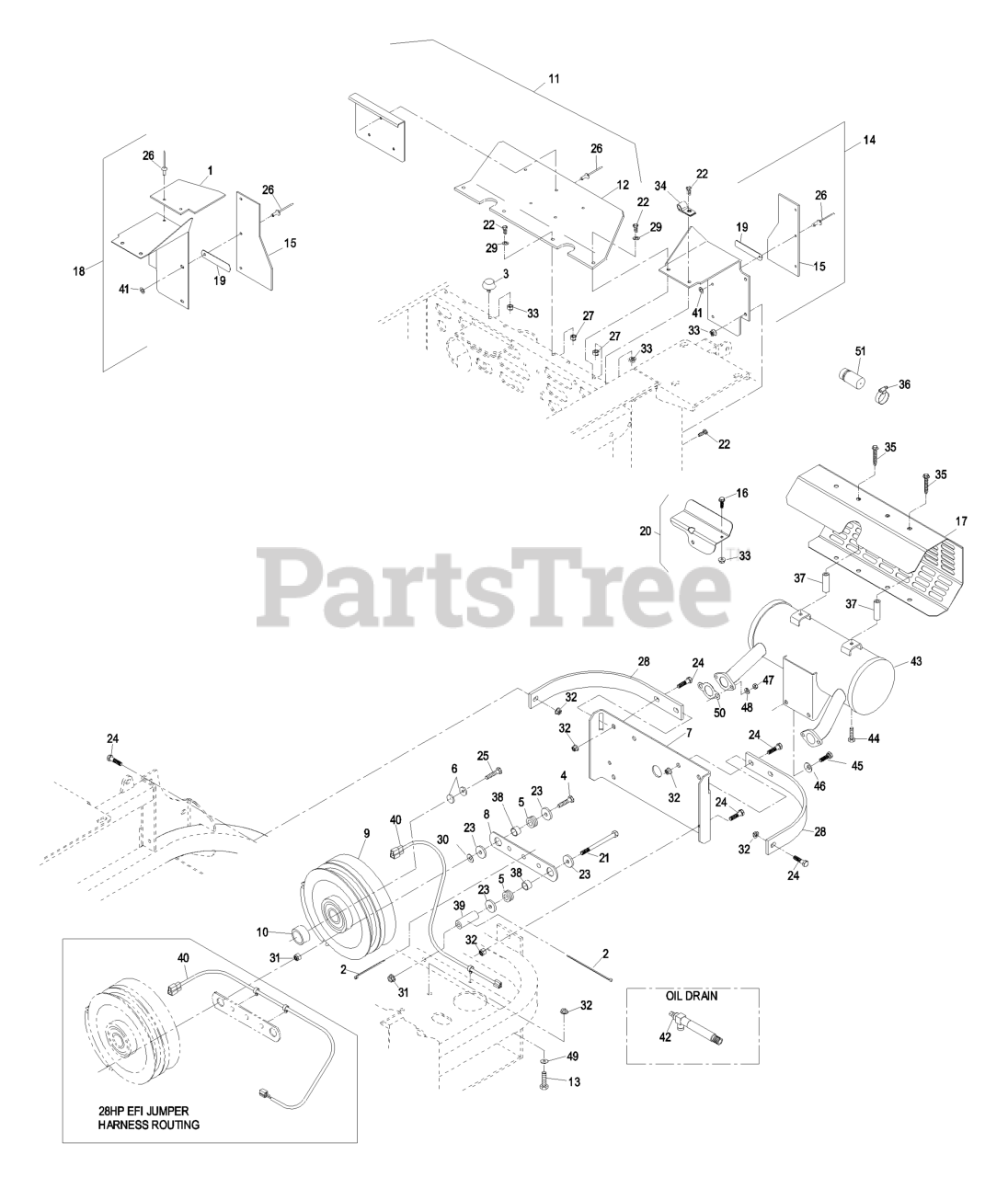

Engine Deck Group (Cont.) Parts Diagram

  • Title

1

Exmark 1-643315

BAFFLE-COOLER, ENGINE

$15.99

$

Usually ships in 3-6 days

0

2

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

3

Exmark 1-523420

109-2365

$14.99

$

Usually ships in 3-6 days

0

4

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

5

Exmark 1-633630

GROMMET

$5.99

$

In Stock, Qty 14

0

6

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

7

Exmark 1-633615-03

GUARD-CLUTCH

$91.99

$

Usually ships in 3-6 days

0

8

Exmark 1-633543-03

STRAP-CLUTCH, BRAKE

$14.99

$

In Stock, only 2 left!

0

9

Exmark 103-3245

KIT-CLUTCH

Note: Includes clutch and jumper harness kit item #40.

$568.99

$

Usually ships in 3-6 days

0

Exmark 103-3246

109-7665
(Superseded to 109-7665)

Note: Includes clutch and jumper harness kit item #40.

$719.99

$

Usually ships in 3-6 days

0

Exmark 103-5835

109-7665
(Superseded to 109-7665)

Note: Includes clutch and jumper harness kit item #40.

$719.99

$

Usually ships in 3-6 days

0

Exmark 103-3012

KIT,MS200 CLUTCH BRAKE

$153.99

$

Usually ships in 3-6 days

0

10

Exmark 1-633453

SPACER-CLUTCH

$19.99

$

In Stock, only 3 left!

0

Exmark 1-633179

SPACER-CLUTCH

$20.99

$

In Stock, only 3 left!

0

11

Exmark 103-3340

1-644276
(Superseded to 1-644276)

$117.99

$

In Stock, only 2 left!

0

12

Exmark 103-1308

SHIELD-ENGINE

$33.99

$

In Stock, only 1 left!

0

13

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Exmark 1-634796

DISCONTINUED

$

$

Not available

15

Exmark 1-633301

SHIELD-ENGINE

$17.99

$

Usually ships in 3-6 days

0

16

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Exmark 1-643313-03

GUARD-MUFFLER

$114.99

$

In Stock, only 4 left!

0

18

Exmark 1-644316

RH SHIELD ASM

$

$

Not available

19

Exmark 1-523285

CLIP-BAFFLE, REAR

$13.99

$

Usually ships in 3-6 days

0

20

Exmark 103-3535

CABLE HEAT SHIELD KIT

$106.99

$

Usually ships in 3-6 days

0

21

Exmark 322-19

SCREW-HH

$6.49

$

In Stock, only 1 left!

0

22

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Exmark 1-613235

WASHER

$1.99

$

In Stock, Qty 19

0

24

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

25

Exmark 3212-10

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt.

$6.49

$

In Stock, Qty 11

0

26

Exmark 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

27

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

28

Exmark 103-7454-03

STRAP-GUARD

$50.99

$

Usually ships in 3-6 days

0

29

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

30

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

32

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

33

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

34

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

35

Exmark 1-809108

SCREW-HWH

Note: If your engine has the mounting bracket welded to the muffler as shown use this screw.

$6.49

$

In Stock, only 3 left!

0

Exmark 1-809076

SCREW

Note: If your engine has an "L" mounting bracket bolted to the bottom of the muffler use this screw.

$2.99

$

In Stock, Qty 13

0

36

Exmark 103-1514

CLAMP-MUFFLER

$21.99

$

Usually ships in 3-6 days

0

37

Exmark 1-323236

SPACER

$7.99

$

In Stock, Qty 12

0

38

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

39

Exmark 1-633988

SPACER-ANCHOR, CLUTCH

$11.99

$

In Stock, only 2 left!

0

40

Exmark 103-3247

KIT,CLUTCH JUMPER HARNESS

Note: Includes jumper harness, clip and 2 plastic ties item #2.

$46.99

$

In Stock, Qty 5

0

Exmark 103-5850

KIT, EFI CLUTCH HARNESS W

Note: Includes jumper harness and clips.

$152.99

$

Usually ships in 3-6 days

0

41

Exmark 3256-63

WASHER-FLAT

$1.49

$

In Stock, only 2 left!

0

42

Exmark 103-1996

VALVE-OIL DRAIN, LONG

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$

$

Not available

43

Exmark 103-7480

KIT,MUFFLER KOHLER

Note: Includes items #20, & #50.

$250.99

$

In Stock, only 3 left!

0

Exmark 103-7483

KIT,MUFFLER KOHLER-EFI

Note: Includes items #20, #36, #50, #51.

$332.99

$

In Stock, only 3 left!

0

44

Exmark 9266934

SCREW

Note: If your engine has the mounting bracket welded to the muffler as shown use hardware shown. If you engine has an "L" mounting bracket bolted to the bottom of the muffler see a Kohler dealer for mounting bracket hardware.

$8.99

$

In Stock, only 3 left!

0

45

Exmark 324-2

SCREW-HH

Note: If your engine has the mounting bracket welded to the muffler as shown use hardware shown. If you engine has an "L" mounting bracket bolted to the bottom of the muffler see a Kohler dealer for mounting bracket hardware.

$4.99

$

In Stock, only 3 left!

0

46

Exmark 325-36

SCREW-HH

Note: If your engine has the mounting bracket welded to the muffler as shown use hardware shown. If you engine has an "L" mounting bracket bolted to the bottom of the muffler see a Kohler dealer for mounting bracket hardware.

$0.99

$

In Stock, Qty 20+

0

47

Exmark 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

48

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 7

0

49

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

50

Exmark 1-653291

110-6697
(Superseded to 110-6697)

$

$

Not available

51

Exmark 103-1513

ARRESTER-SPARK

$

$

Not available

Exmark 1-840022

PRO-LOCK,NUT TYPE

$20.99

$

Usually ships in 3-6 days

0
