LZ27DD724 - Exmark 72" Lazer Z XP Zero-Turn Mower, 27hp Briggs & Stratton (SN: 540000 - 599999) (2005) Upper Frame Group Parts Diagram

72" Lazer Z XP Zero-Turn Mower, 27hp Briggs & Stratton

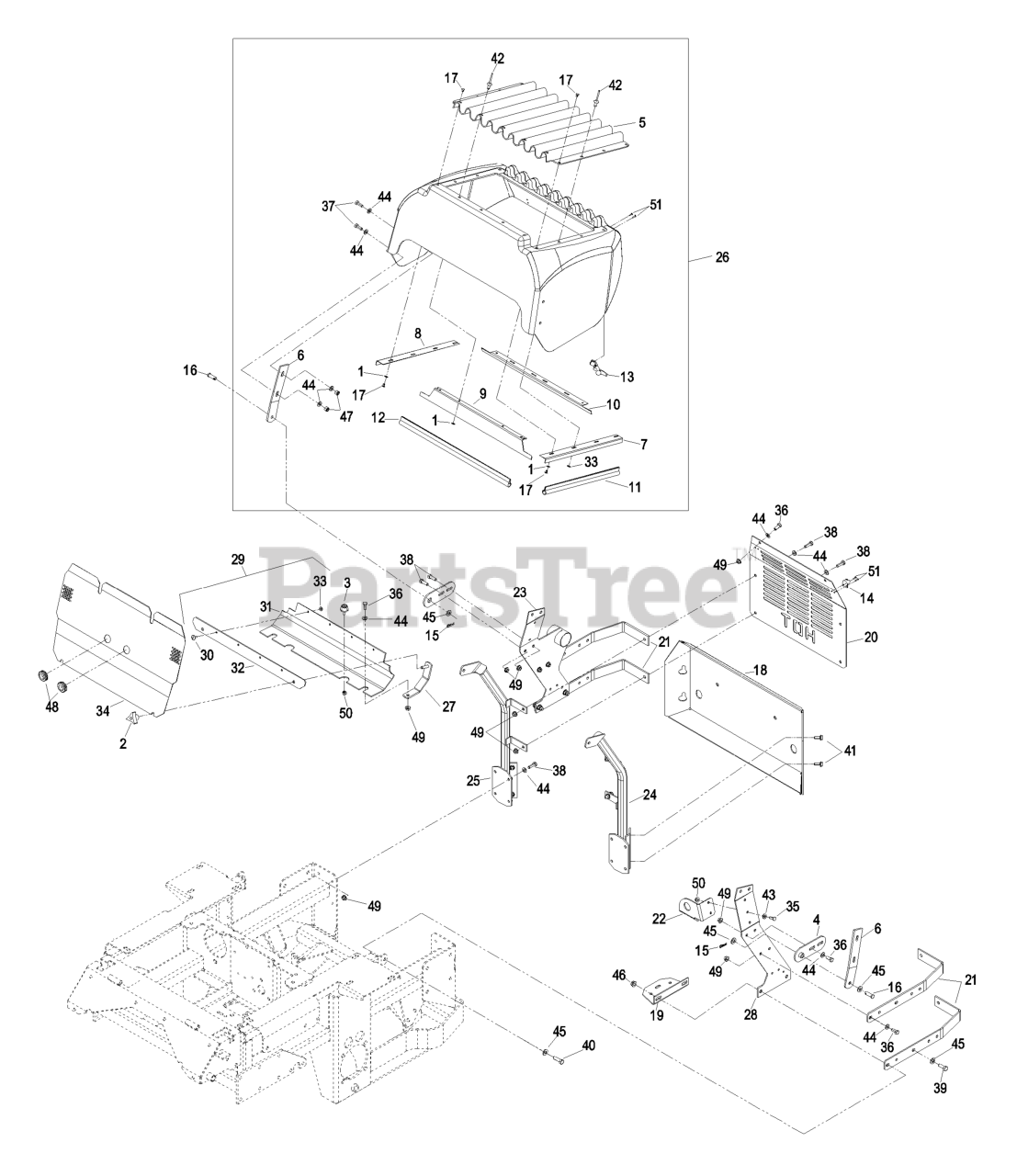

Upper Frame Group Parts Diagram

  • Title

1

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 14

0

2

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

3

Exmark 1-523420

109-2365

$14.99

$

Usually ships in 3-6 days

0

4

Exmark 1-632986-03

SHACKLE-HINGE

$53.99

$

Usually ships in 3-6 days

0

5

Exmark 1-633864-03

SCREEN-RADIATOR

$266.99

$

Usually ships in 3-6 days

0

6

Exmark 1-633885-03

PLATE-HINGE, HOOD

$29.99

$

Usually ships in 3-6 days

0

7

Exmark 1-643105-03

ANGLE-RADIATOR, LH

$28.99

$

Usually ships in 3-6 days

0

8

Exmark 1-643106-03

ANGLE-RADIATOR, RH

$28.99

$

Usually ships in 3-6 days

0

9

Exmark 1-643107-03

ANGLE-RADIATOR, TOP

$46.99

$

Usually ships in 3-6 days

0

10

Exmark 1-643108-03

ANGLE-RADIATOR, BOTTOM

$38.99

$

Usually ships in 3-6 days

0

11

Exmark 1-643186

SEAL-TRIM

$25.99

$

Usually ships in 3-6 days

0

12

Exmark 1-643187

SEAL-TRIM

$21.99

$

Usually ships in 3-6 days

0

13

Exmark 1-643188

LATCH-RUBBER

$21.99

$

In Stock, only 2 left!

0

14

Exmark 1-643189

249-40
(Superseded to 249-40)

$11.99

$

Usually ships in 3-6 days

0

15

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

16

Exmark 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 5

0

17

Exmark 103-1363

RIVET

$2.99

$

Usually ships in 3-6 days

0

18

Exmark 103-1479-03

WLD,REAR BUMPER

$222.99

$

Usually ships in 3-6 days

0

19

Exmark 103-2603-03

BRACKET-BOTTLE

$

$

Not available

20

Exmark 103-4855-03

GUARD-MUFFLER

$78.99

$

Usually ships in 3-6 days

0

21

Exmark 103-4993

DISCONTINUED

$

$

Not available

22

Exmark 103-4982-03

BRACKET-BUZZER

$

$

Not available

23

Exmark 103-5123-03

RH RADIATOR AND AC SUPPOR

$

$

Not available

24

Exmark 103-5157-03

FRAME-UPPER, LH REAR

$194.99

$

Usually ships in 3-6 days

0

25

Exmark 103-5158-03

FRAME-UPPER, RH REAR

$194.99

$

Usually ships in 3-6 days

0

26

Exmark 103-5886

KIT,XP HOOD

Note: Hood assembly comes with hood hinges item #6, screen, radiator brackets, seals and decals.

$

$

Not available

27

Exmark 103-5163-03

MOUNT-BELT SHIELD, ENGINE

$15.99

$

Usually ships in 3-6 days

0

28

Exmark 103-5169-03

MOUNT-SIDE, LH

$61.99

$

Usually ships in 3-6 days

0

29

Exmark 103-5884

DISCONTINUED

$

$

Not available

30

Exmark 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

31

Exmark 103-4987

103-5884
(Superseded to 103-5884)

$

$

Not available

32

Exmark 103-4988-03

Strip, Belt Shield

$

$

Currently unavailable

33

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

34

Exmark 103-5170

DISCONTINUED

$

$

Not available

35

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

37

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

40

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

41

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 17

0

42

Exmark 1-803072

RIVET

$2.99

$

Usually ships in 3-6 days

0

43

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

44

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

45

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

46

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

47

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 14

0

48

Exmark 100-3815

GROMMET-RUBBER

$9.99

$

In Stock, only 2 left!

0

49

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

50

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

51

Exmark 923786

3269-24
(Superseded to 3269-24)

$2.99

$

In Stock, Qty 12

0
