LZ27DD724 - Exmark 72" Lazer Z XP Zero-Turn Mower, 27hp Briggs & Stratton (SN: 510000 - 539999) (2005) Engine Cooling Group Parts Diagram

72" Lazer Z XP Zero-Turn Mower, 27hp Briggs & Stratton

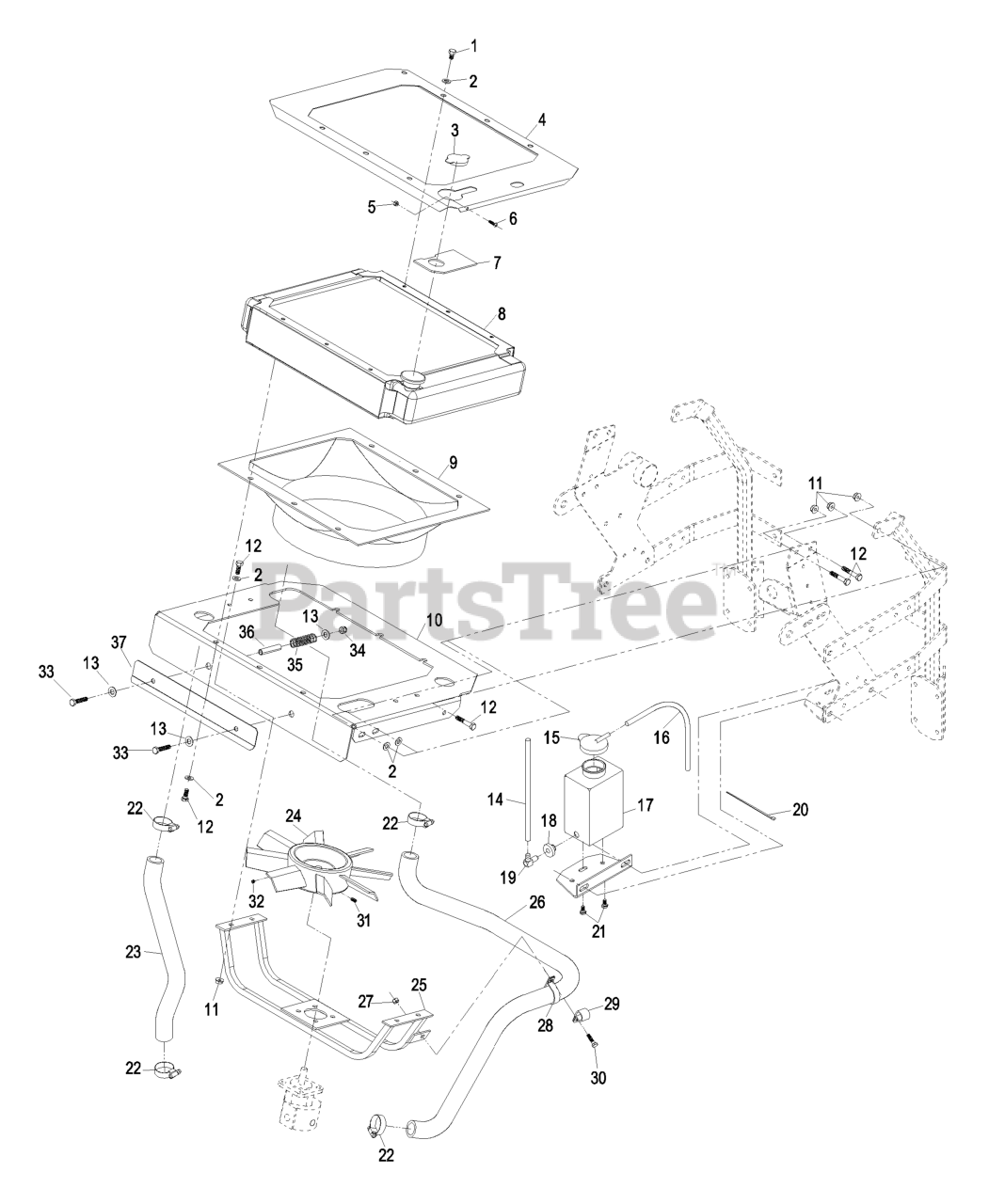

Engine Cooling Group Parts Diagram

  • Title
1

Exmark 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

2

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Exmark 1-643161

CAP-RADIATOR

$84.99

$

In Stock, only 3 left!

0

4

Exmark 103-3347

ASM,RAD. TOP PLATE W/DECA

$

$

Not available

5

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

7

Exmark 103-1352

SHIELD-FILL NECK, RADIATO

$

$

Not available

8

Exmark 103-0891

DISCONTINUED
(Superseded to 109-2364)

$

$

Not available

9

Exmark 103-0898

SHROUD-COOLING, ENGINE

$

$

Not available

10

Exmark 103-5172

DISCONTINUED

$

$

Not available

11

$1.49

$

In Stock, Qty 20+

0

12

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Exmark 103-1445

109-2670
(Superseded to 109-2670)

$20.99

$

Usually ships in 3-6 days

0

15

Exmark 1-643164

CAP-TANK, OVERFLOW

$19.99

$

In Stock, only 3 left!

0

16

Exmark 1-643131

109-2669
(Superseded to 109-2669)

$12.99

$

In Stock, only 1 left!

0

17

Exmark 1-643163

TANK-OVERFLOW

$96.99

$

Usually ships in 3-6 days

0

18

Exmark 1-513645

46-6560
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

19

Exmark 1-643259

46-6550
(Superseded to 46-6550)

$41.99

$

Usually ships in 3-6 days

0

20

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

21

Exmark 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

22

Exmark 1-633989

2412-34
(Superseded to 2412-34)

$2.49

$

In Stock, only 3 left!

0

23

Exmark 103-2505

HOSE-OUTLET, ENGINE

$57.99

$

Usually ships in 3-6 days

0

24

Exmark 103-0892

FAN

Note: Before installing fan, be sure to apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) to fan motor shaft next to the seal.

$527.99

$

Usually ships in 3-6 days

0

25

Exmark 103-0086-03

MOUNT-MOTOR, FAN

$

$

Not available

26

Exmark 103-0922

HOSE-INLET, ENGINE

$159.99

$

Usually ships in 3-6 days

0

27

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

28

Exmark 103-0113

CLIP-LOOM

$

$

Not available

29

Exmark 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

30

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

31

Exmark 3245-44

SCREW-SET

$

$

Not available

32

Exmark 909848

Setscrew,1/4-20 X 1/4

Note: Setscrew is installed over keyway.

$

$

Not available

33

Exmark 322-14

SCREW-HH

$2.99

$

In Stock, Qty 8

0

34

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

35

Exmark 1-513296

SPRING-INDICATOR, REVERSE

$8.49

$

Usually ships in 3-6 days

0

36

$

$

Not available

37

Exmark 103-4986

BRACKET-DEFLECTOR, AIR

$

$

Not available
