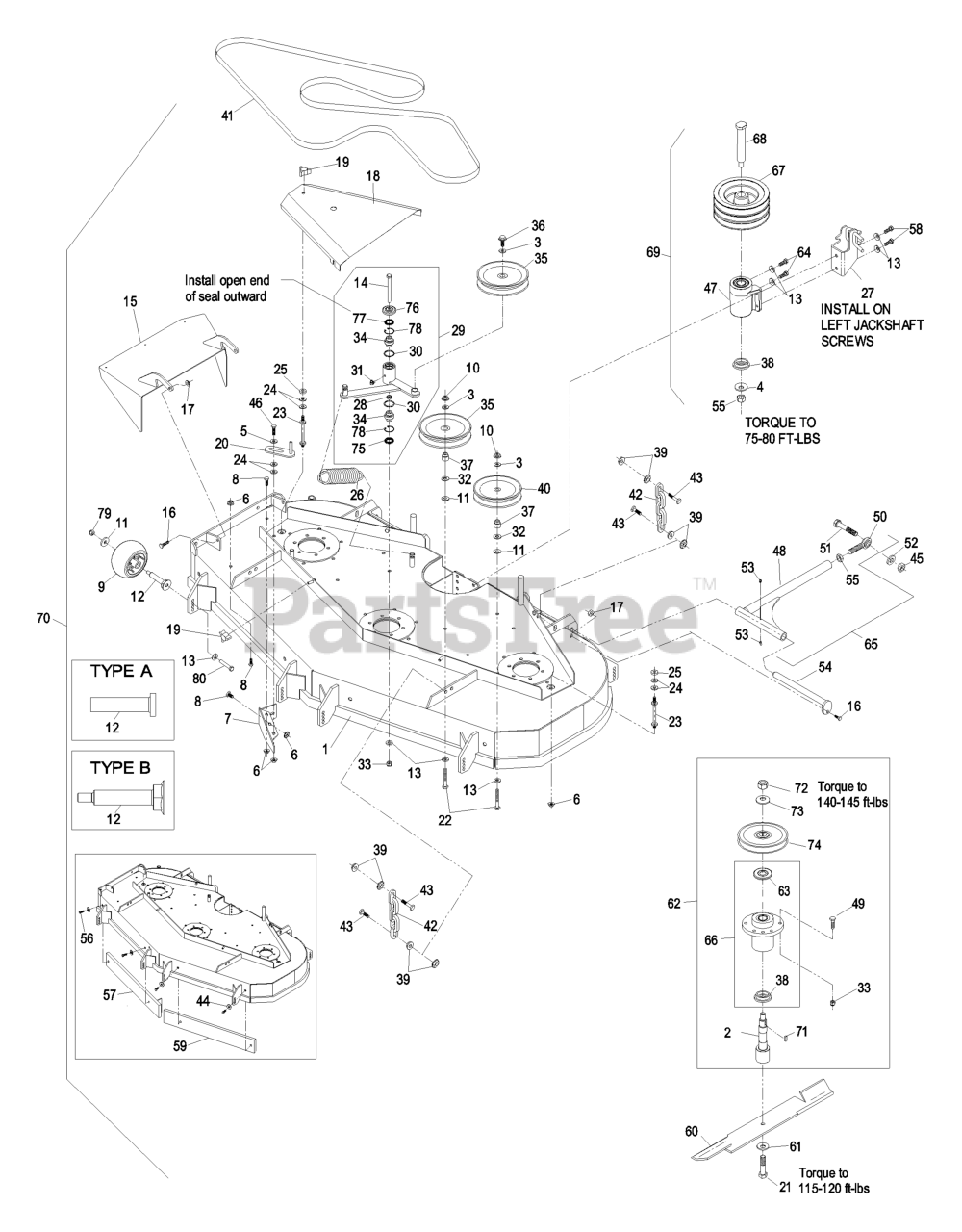

LZ27DD604 - Exmark 60" Lazer Z XP Zero-Turn Mower, 27hp Briggs & Stratton (SN: 510000 - 539999) (2005) Deck Group 60" Parts Diagram

60" Lazer Z XP Zero-Turn Mower, 27hp Briggs & Stratton

Deck Group 60" Parts Diagram

  • Title

1

Exmark 103-1589

ASM,DECK W/DECALS XP604

$

$

Not available

2

Exmark 103-2785

SPINDLE,SHORT

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$115.99

$

In Stock, only 2 left!

0

3

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

4

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

5

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

6

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$46.99

$

In Stock, only 4 left!

0

8

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

9

Exmark 1-603299

ROLLER-SCALP, ANTI

Note: Kit 103-3168 includes antiscalp roller, axle, & mounting hardware for Type A axles. Kit 103-7263 includes antiscalp roller, axle, & mounting hardware for Type B axles.

$23.99

$

In Stock, Qty 10

0

10

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

11

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

12

Exmark 1-603602

BUSHING-ROLLER

Note: Unit may have been built with Type A or Type B anti scalp axles. Reference illustration to determine which axles are installed on the unit.

$23.99

$

In Stock, only 3 left!

0

Exmark 103-5364

116-9981
(Superseded to 116-9981)

Note: Unit may have been built with Type A or Type B anti scalp axles. Reference illustration to determine which axles are installed on the unit.

$52.99

$

In Stock, Qty 20+

0

13

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

14

Exmark 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

15

Exmark 103-5840-01

WLD,CHUTE XP604

$166.99

$

In Stock, only 1 left!

0

16

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Exmark 1-633084-01

SHIELD,BELT

$96.99

$

In Stock, Qty 9

0

Exmark 103-1470-01

DISCONTINUED

$

$

Not available

19

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

20

Exmark 1-322110

GUIDE-BELT

$12.99

$

In Stock, Qty 8

0

21

Exmark 103-0862

SCREW-CAP

$5.99

$

In Stock, Qty 18

0

22

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

23

Exmark 1-303537

STUD-SHIELD, BELT (SHORT)

$6.49

$

In Stock, Qty 20+

0

24

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

26

Exmark 103-3330

116-6317
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 7

0

27

Exmark 103-3445-01

DISCONTINUED

$

$

Not available

28

Exmark 103-5677

SPACER

$2.99

$

In Stock, only 3 left!

0

29

Exmark 103-5693

KIT,DECK IDLER LZ/XP

Note: Includes components shown and (1) nyloc nut item 33 and (1) spring disc washer item 13.

$136.99

$

In Stock, Qty 11

0

30

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

31

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

32

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

33

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

34

Exmark 103-3504

BEARING-SPHERICAL

$25.99

$

In Stock, Qty 20+

0

35

Exmark 1-633109

126-7685
(Superseded to 126-7685)

$62.99

$

In Stock, Qty 20+

0

36

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

37

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

38

Exmark 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 3 left!

0

39

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 17

0

40

Exmark 1-603805

PULLEY-IDLER

$54.99

$

In Stock, Qty 12

0

41

Exmark 1-633127

BELT,BLADE DRIVE
(Superseded to 1-633127-SL)

$119.99

$

In Stock, Qty 20+

0

42

Exmark 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 16

0

43

Exmark 103-1898

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

44

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 13

0

45

Exmark 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 14

0

46

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

47

Exmark 103-2544

103-9746
(Superseded to 103-9746)

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$263.99

$

In Stock, only 1 left!

0

48

Exmark 103-1355-01

109-1184
(Superseded to 109-1184)

$124.99

$

In Stock, only 1 left!

0

49

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

50

Exmark 1-633029

BALLJOINT-SPHERICAL

$66.99

$

In Stock, Qty 12

0

51

Exmark 327-28

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

52

Exmark 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

53

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

54

Exmark 1-632199-01

PIN-STRUT

$35.99

$

In Stock, Qty 12

0

55

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

56

Exmark 325-4

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

57

Exmark 103-1522-01

WEIGHT BAR ASM

$225.99

$

Usually ships in 3-6 days

0

58

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

59

Exmark 103-1515-01

DISCONTINUED

$

$

Not available

60

Exmark 103-2530

103-2530-S
(Superseded to 103-2530-S)

$34.99

$

In Stock, Qty 20+

0

Exmark 103-2510

103-2510-S
(Superseded to 103-2510-S)

$38.99

$

In Stock, Qty 14

0

Exmark 103-0301

103-0301-S
(Superseded to 103-0301-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK604.

$34.99

$

In Stock, Qty 20+

0

Exmark 103-1580

103-1580-S
(Superseded to 103-1580-S)

$36.99

$

In Stock, Qty 14

0

Exmark 103-6338

116-5173-S
(Superseded to 116-5173-S)

$34.99

$

Usually ships in 3-6 days

0

61

Exmark 103-0865

WASHER-BLADE BOLT, HEAVY

$5.99

$

In Stock, Qty 18

0

62

Exmark 103-8075

ASM, CUTTER HSG COMPLETE

Note: Complete cutter housing assembly also includes items 61 & 21.

$511.99

$

Usually ships in 3-6 days

0

63

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$5.49

$

In Stock, only 2 left!

0

64

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

65

Exmark 103-1356

STRUT ASM

$318.99

$

In Stock, Qty 6

0

66

Exmark 103-8280

KIT, CUTTER HOUSING

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$254.99

$

In Stock, only 3 left!

0

67

Exmark 103-5381

SHEAVE-JACKSHAFT

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$668.99

$

Usually ships in 3-6 days

0

68

Exmark 1-643393

JACKSHAFT

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$33.99

$

Usually ships in 3-6 days

0

69

Exmark 103-0929

ASM,JACKSHAFT

$1028.99

$

Usually ships in 3-6 days

0

70

Exmark 103-1588

Complete Deck Assy

Note: Complete deck assembly does not include items 39, 42, & 43, but does include 2 belts (item 69, "Common Engine Deck Group").

$

$

Currently unavailable

71

Exmark 103-2982

KEY

$2.99

$

In Stock, Qty 12

0

72

Exmark 3217-46

NUT-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on nut Item 72.

$12.99

$

In Stock, Qty 13

0

73

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 14

0

74

Exmark 103-2794

SHEAVE,BLADE DRIVE 6.30

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$68.99

$

In Stock, only 1 left!

0

75

Exmark 103-3505

SEAL-LIP, DOUBLE

$5.49

$

In Stock, Qty 20+

0

76

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

77

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 19

0

78

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

79

Exmark 3290-357

NUT-HHF, WHIZ

Note: Unit may have been built with Type A or Type B anti scalp axles. Reference illustration to determine which axles are installed on the unit.

$0.99

$

In Stock, Qty 20+

0

Exmark 3296-39

NUT-LOCK, NI

Note: Unit may have been built with Type A or Type B anti scalp axles. Reference illustration to determine which axles are installed on the unit.

$2.99

$

In Stock, Qty 8

0

80

Exmark 98-5961

SCREW-HH

Note: Unit may have been built with Type A or Type B anti scalp axles. Reference illustration to determine which axles are installed on the unit.

$5.49

$

In Stock, Qty 20+

0

Exmark 3211-46

SCREW-HH

Note: Unit may have been built with Type A or Type B anti scalp axles. Reference illustration to determine which axles are installed on the unit.

$2.99

$

In Stock, Qty 20+

0
