LZ26KC724 - Exmark 72" Lazer Z Zero-Turn Mower, 26hp Kohler (SN: 440000 - 509999) (2004) Engine Deck Group (Cont.) Parts Diagram

72" Lazer Z Zero-Turn Mower, 26hp Kohler

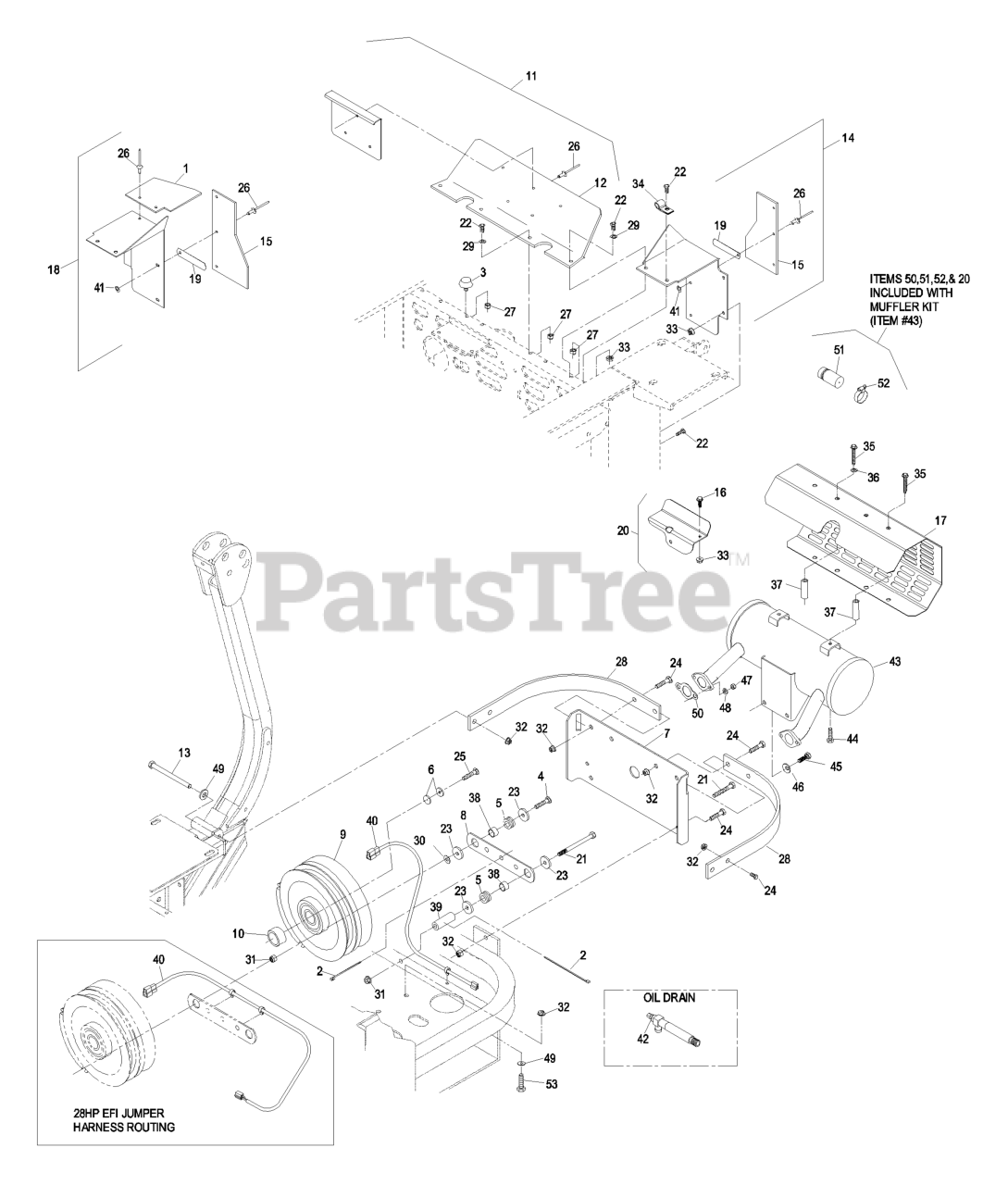

Engine Deck Group (Cont.) Parts Diagram

  • Title

1

Exmark 1-643315

BAFFLE-COOLER, ENGINE

$15.99

$

Usually ships in 3-6 days

0

2

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

3

Exmark 1-523420

109-2365

$14.99

$

Usually ships in 3-6 days

0

4

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

5

Exmark 1-633630

GROMMET

$5.99

$

In Stock, Qty 16

0

6

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

7

Exmark 1-633615-03

GUARD-CLUTCH

$91.99

$

Usually ships in 3-6 days

0

8

Exmark 1-633543-03

STRAP-CLUTCH, BRAKE

$14.99

$

In Stock, only 2 left!

0

9

Exmark 103-3245

KIT-CLUTCH

Note: Includes clutch and jumper harness kit item #40.

$568.99

$

Usually ships in 3-6 days

0

Exmark 103-3246

109-7665
(Superseded to 109-7665)

Note: Includes clutch and jumper harness kit item #40.

$719.99

$

Usually ships in 3-6 days

0

Exmark 103-5835

109-7665
(Superseded to 109-7665)

Note: Includes clutch and jumper harness kit item #40.

$719.99

$

Usually ships in 3-6 days

0

Exmark 103-3012

KIT,MS200 CLUTCH BRAKE

$153.99

$

Usually ships in 3-6 days

0

10

Exmark 1-633453

SPACER-CLUTCH

$19.99

$

In Stock, only 3 left!

0

Exmark 1-633179

SPACER-CLUTCH

$20.99

$

In Stock, only 4 left!

0

11

Exmark 103-3340

1-644276
(Superseded to 1-644276)

$117.99

$

In Stock, only 2 left!

0

12

Exmark 103-1308

SHIELD-ENGINE

$33.99

$

In Stock, only 1 left!

0

13

Exmark 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

14

Exmark 1-634796

DISCONTINUED

$

$

Not available

15

Exmark 1-633301

SHIELD-ENGINE

$17.99

$

Usually ships in 3-6 days

0

16

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Exmark 1-643313-03

GUARD-MUFFLER

$114.99

$

In Stock, only 4 left!

0

18

Exmark 1-644316

RH SHIELD ASM

$

$

Not available

19

Exmark 1-523285

CLIP-BAFFLE, REAR

$13.99

$

Usually ships in 3-6 days

0

20

Exmark 103-3535

CABLE HEAT SHIELD KIT

$106.99

$

Usually ships in 3-6 days

0

21

Exmark 322-19

SCREW-HH

$6.49

$

In Stock, only 1 left!

0

22

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Exmark 1-613235

WASHER

$1.99

$

In Stock, Qty 20+

0

24

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

25

Exmark 3212-10

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt.

$6.49

$

In Stock, Qty 11

0

26

Exmark 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

27

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

28

Exmark 1-643264-03

DISCONTINUED

$

$

Not available

29

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

30

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

32

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

33

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

34

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

35

Exmark 1-809076

SCREW

$2.99

$

In Stock, Qty 13

0

Exmark 1-809108

SCREW-HWH

$6.49

$

In Stock, only 3 left!

0

36

Exmark 1-323235

WASHER-SPRING

$5.49

$

In Stock, Qty 9

0

37

Exmark 1-323236

SPACER

$7.99

$

In Stock, Qty 12

0

38

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

39

Exmark 1-633988

SPACER-ANCHOR, CLUTCH

$11.99

$

In Stock, only 2 left!

0

40

Exmark 103-3247

KIT,CLUTCH JUMPER HARNESS

Note: Includes jumper harness, clip and 2 plastic ties item #2.

$46.99

$

In Stock, Qty 5

0

Exmark 103-5850

KIT, EFI CLUTCH HARNESS W

Note: Includes jumper harness and clips.

$152.99

$

Usually ships in 3-6 days

0

41

Exmark 3256-63

WASHER-FLAT

$1.49

$

In Stock, only 2 left!

0

42

Exmark 103-1996

VALVE-OIL DRAIN, LONG

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$

$

Not available

43

Exmark 103-2459

103-7483
(Superseded to 103-7483)

Note: The muffler for 23HP & 27HP Kohler units comes with the engine.

$332.99

$

In Stock, only 3 left!

0

44

Exmark 9266934

SCREW

$8.99

$

In Stock, only 3 left!

0

45

Exmark 324-2

SCREW-HH

$4.99

$

In Stock, only 3 left!

0

46

Exmark 325-36

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

47

Exmark 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

48

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 7

0

49

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

50

Exmark 1-653291

110-6697
(Superseded to 110-6697)

$

$

Not available

51

Exmark 103-1513

ARRESTER-SPARK

$

$

Not available

52

Exmark 103-1514

CLAMP-MUFFLER

$21.99

$

Usually ships in 3-6 days

0

53

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

$20.99

$

Usually ships in 3-6 days

0
