LZ26KC724 - Exmark 72" Lazer Z Zero-Turn Mower, 26hp Kohler (SN: 260000 - 319999) (2001) Kohler 26 HP EFI Electrical Group Parts Diagram

72" Lazer Z Zero-Turn Mower, 26hp Kohler

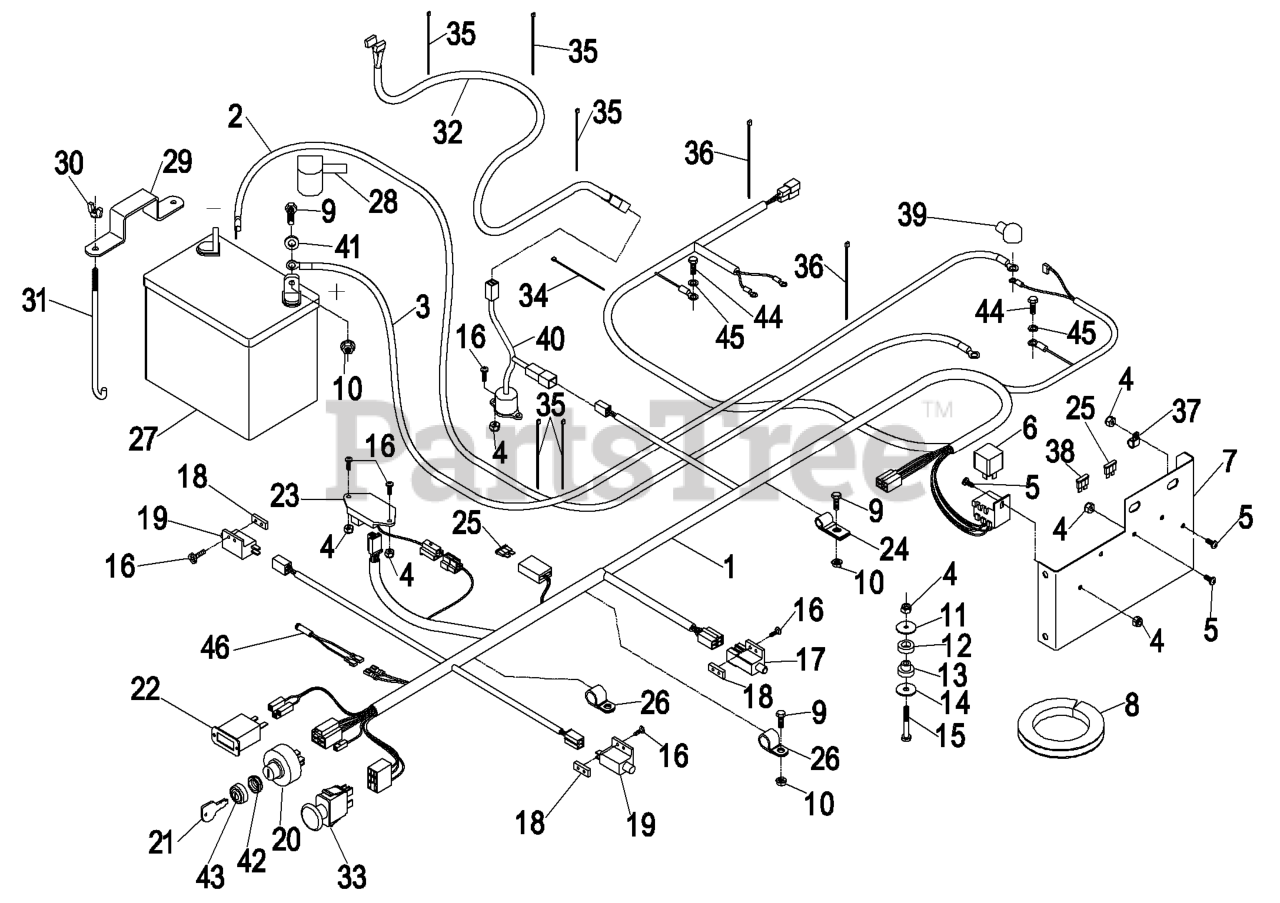

Kohler 26 HP EFI Electrical Group Parts Diagram

  • Title

1

Exmark 103-0263

DISCONTINUED

Note: Use dielectric grease on all wiring harness connectors.

$

$

Not available

2

Exmark 1-633307

WIRE-GROUND

$41.99

$

In Stock, only 3 left!

0

3

Exmark 1-523279

109-7608
(Superseded to 109-7608)

$44.99

$

Usually ships in 3-6 days

0

4

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Exmark 1-803071

SCREW

$1.49

$

In Stock, Qty 13

0

6

Exmark 1-643275

RELAY

$23.99

$

In Stock, Qty 6

0

7

Exmark 1-643257

1-643257-03
(Superseded to 1-643257-03)

$

$

Not available

8

Exmark 1-643246

TRIMLOCK

$

$

Not available

9

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

11

Exmark 1-805518

WASHER

$

$

Not available

12

Exmark 1-643325

RINGMOUNT-VIBRATION

$

$

Not available

13

Exmark 1-643326

MOUNT-BUSHING, VIBRATION

$

$

Not available

14

Exmark 1-805519

WASHER

$

$

Not available

15

Exmark 1-803074

SCREW

$

$

Not available

16

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

17

Exmark 1-633111

SWITCH

$21.99

$

In Stock, Qty 19

0

18

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

19

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

20

Exmark 103-0206

109-4736
(Superseded to 109-4736)

$42.99

$

In Stock, Qty 15

0

21

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

22

Exmark 1-513374

METER-HOUR
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

23

Exmark 100-6186

MODULE-DELAY, SEAT

$44.99

$

In Stock, only 4 left!

0

24

Exmark 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

25

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.49

$

In Stock, Qty 13

0

26

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

27

Exmark 103-0293

DISCONTINUED (EXMARK)

$

$

Not available

28

Exmark 1-543391

109-2407
(Superseded to 109-2407)

$5.49

$

In Stock, only 3 left!

0

29

Exmark 1-633652

1-633652-03
(Superseded to 1-633652-03)

$21.99

$

In Stock, only 3 left!

0

30

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 15

0

31

Exmark 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 9

0

32

Exmark 1-633840

103-1227
(Superseded to 103-1227)

$23.99

$

Usually ships in 3-6 days

0

33

Exmark 1-633673

103-5221
(Superseded to 103-5221)

$58.99

$

In Stock, Qty 20+

0

34

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

35

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

36

Exmark 1-643115

TIE-PLASTIC

$2.99

$

Usually ships in 3-6 days

0

37

Exmark 1-323229

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

38

Exmark 1-816002

1-816001
(Superseded to 1-816001)

$6.49

$

In Stock, Qty 13

0

39

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

40

Exmark 1-633782

109-4577
(Superseded to 109-4577)

$

$

Not available

41

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

42

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.49

$

In Stock, Qty 6

0

43

Exmark 103-0499

SEAL-SWITCH, IGNITION

$2.99

$

In Stock, only 2 left!

0

44

Exmark 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

45

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

46

Exmark 1-643267

INDICATOR-LED, RED

$25.99

$

In Stock, only 1 left!

0
