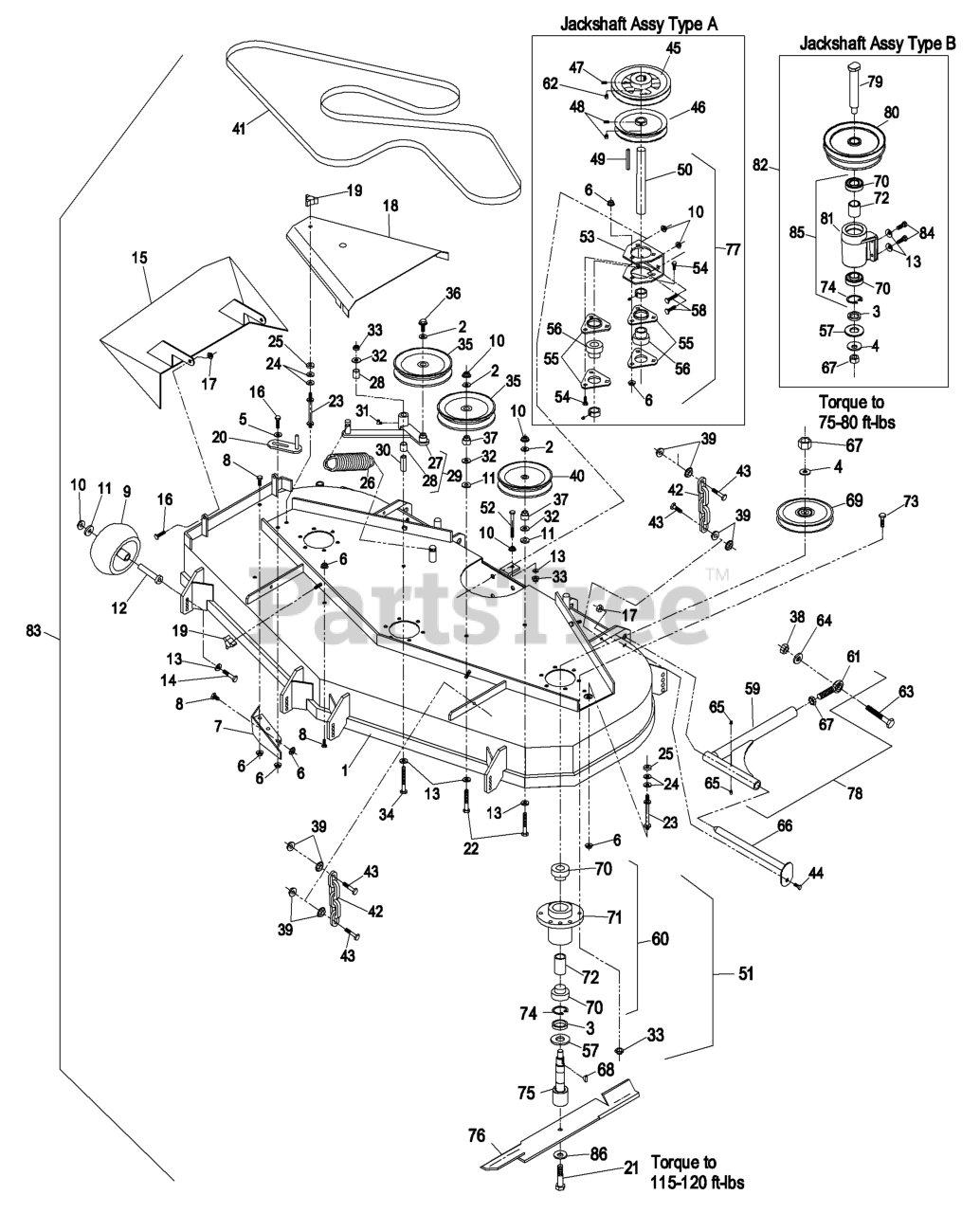

LZ26KC724 - Exmark 72" Lazer Z Zero-Turn Mower, 26hp Kohler (SN: 260000 - 319999) (2001) 52" Deck Group Parts Diagram

Exmark 103-0332-01

Exmark 103-0675

Exmark 3256-24

Exmark 1-323533

Note: Reference the picture to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A on LZ25KC524 & LZ23LKA524 units.

Exmark 1-323533

Note: Reference the picture to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B on LZ25KC524 & LZ23LKA524 units.

Exmark 1-513208

Note: Reference the picture to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A on LZ25KC524 & LZ23LKA524 units.

Exmark 1-513208

Note: Reference the picture to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B on LZ25KC524 & LZ23LKA524 units.

Exmark 1-303334

Exmark 32128-20

Exmark 1-602913-01

Exmark 322-2

Exmark 1-603299

Exmark 3290-357

Note: Reference the picture to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A on LZ25KC524 & LZ23LKA524 units.

Exmark 3290-357

Note: Reference the picture to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B on LZ25KC524 & LZ23LKA524 units.

Exmark 1-373034

Exmark 1-603602

Exmark 98-5975

Note: Reference the picture to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A on LZ25KC524 & LZ23LKA524 units.

Exmark 98-5975

Note: Reference the picture to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B on LZ25KC524 & LZ23LKA524 units.

Exmark 98-5961

Exmark 103-0345-01

Exmark 322-5

Exmark 3296-29

Exmark 1-633357-01

Exmark 1-323385

Exmark 1-322110

Exmark 103-0862

Exmark 323-11

Exmark 1-303537

Exmark 3256-3

Exmark 1-323417

Exmark 1-633151

Exmark 1-632119-03

Exmark 1-513034

Exmark 1-634244

Exmark 1-603044

Exmark 302-40

Exmark 3256-4

Exmark 3296-39

Exmark 323-13

Exmark 1-633109

Exmark 3234-11

Exmark 1-633456

Exmark 3217-11

Exmark 32128-37

Exmark 1-603805

Exmark 1-633366

Exmark 1-633447

Exmark 1-800811

Exmark 322-3

Exmark 1-403087

Note: Use antiseize on bore of sheaves and bearings. Reference the picture on to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A on LZ25KC524 & LZ23LKA524 units.

Exmark 1-633010

Note: Use antiseize on bore of sheaves and bearings. Reference the picture on to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A on LZ25KC524 & LZ23LKA524 units.

Exmark 30-1710

Note: Use Pro-lock Nut Type (P/N 1-840022 .5 ml. tube) on setscrews.

Exmark 1-803022

Note: Use Pro-lock Nut Type (P/N 1-840022 .5 ml. tube) on setscrews. Reference the picture on to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A on LZ25KC524 & LZ23LKA524 units.

Exmark 1-807264

Note: Reference the picture on to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A on LZ25KC524 & LZ23LKA524 units.

Exmark 1-633012

Note: Reference the picture on to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A on LZ25KC524 & LZ23LKA524 units.

Exmark 103-1140

Note: Cutter housing complete includes sheave, washer, and nut.

Exmark 323-20

Exmark 1-633014-01

Note: Reference the picture to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A on LZ25KC524 & LZ23LKA524 units.

Exmark 3230-1

Note: Reference the picture to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A on LZ25KC524 & LZ23LKA524 units.

Exmark 1-513013

Note: Reference the picture to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A on LZ25KC524 & LZ23LKA524 units.

Exmark 1-513012

Note: Reference the picture to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A on LZ25KC524 & LZ23LKA524 units.

Exmark 1-633573

Note: Reference the picture to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A on LZ25KC524 & LZ23LKA524 units.

Exmark 1-633573

Note: Reference the picture to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B on LZ25KC524 & LZ23LKA524 units.

Exmark 3231-22

Note: Reference the picture to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A on LZ25KC524 & LZ23LKA524 units.

Exmark 103-1072-01

Exmark 1-634619

Exmark 1-633029

Exmark 1-803050

Note: Use Pro-lock Nut Type (P/N 1-840022 .5 ml. tube) on setscrews. Reference the picture on to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A on LZ25KC524 & LZ23LKA524 units.

Exmark 327-11

Exmark 3253-8

Exmark 302-19

Exmark 1-632199-01

Exmark 3219-6

Note: Reference the picture to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A on LZ25KC524 & LZ23LKA524 units.

Exmark 3219-6

Note: Reference the picture to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B on LZ25KC524 & LZ23LKA524 units.

Exmark 3257-32

Exmark 1-633701

Note: Use antiseize on bore of sheaves and bearings.

Exmark 1-513016

Note: Use antiseize on bore of sheaves and bearings.

Exmark 1-513016

Note: Reference the picture on to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B on LZ23LKA524 units.

Exmark 1-323532

Exmark 1-323528

Exmark 1-323528

Note: Reference the picture to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B on LZ25KC524 & LZ23LKA524 units.

Exmark 323-7

Exmark 32120-8

Note: Reference the picture to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A on LZ25KC524 & LZ23LKA524 units.

Exmark 32120-8

Note: Reference the picture to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B on LZ25KC524 & LZ23LKA524 units.

Exmark 103-0584

Exmark 1-633482

Exmark 1-613251

Exmark 1-633485

Exmark 1-633484

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK524

Exmark 103-1578

Exmark 1-634546

Note: Reference the picture to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type A on LZ25KC524 & LZ23LKA524 units.

Exmark 103-1081

Note: Strut subassemblies have same components, they are assembled to different lengths from center to center. P/N 103-1081 = 15.31"; P/N 103-1106 = 15.00". Reference the picture on to determine if your unit uses Jackshaft Type A or B: A component used with Jac

Exmark 103-1106

Note: Reference the picture to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B on LZ23LKA524 units.

Exmark 1-643393

Note: Reference the picture to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B on LZ25KC524 & LZ23LKA524 units.

Exmark 103-0135

Note: Reference the picture to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B on LZ25KC524 units.

Exmark 103-0185

Note: Reference the picture to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B on LZ23LKA524 units.

Exmark 103-0280

Note: Reference the picture to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B on LZ25KC524 & LZ23LKA524 units.

Exmark 103-0698

Note: Reference the picture to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B on LZ25KC524 units.

Exmark 103-0699

Note: Reference the picture to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B on LZ23LKA524 units.

Exmark 103-0678

Note: (Model LZ25KC524)

Exmark 103-0679

Note: (Model LZ23LKA524)

Exmark 323-6

Exmark 103-1192

Note: Reference the picture to determine if your unit uses Jackshaft Type A or B: A component used with Jackshaft Type B on LZ25KC524 & LZ23LKA524 units.

Exmark 103-0865

Exmark 1-840022

Exmark 1-850337
