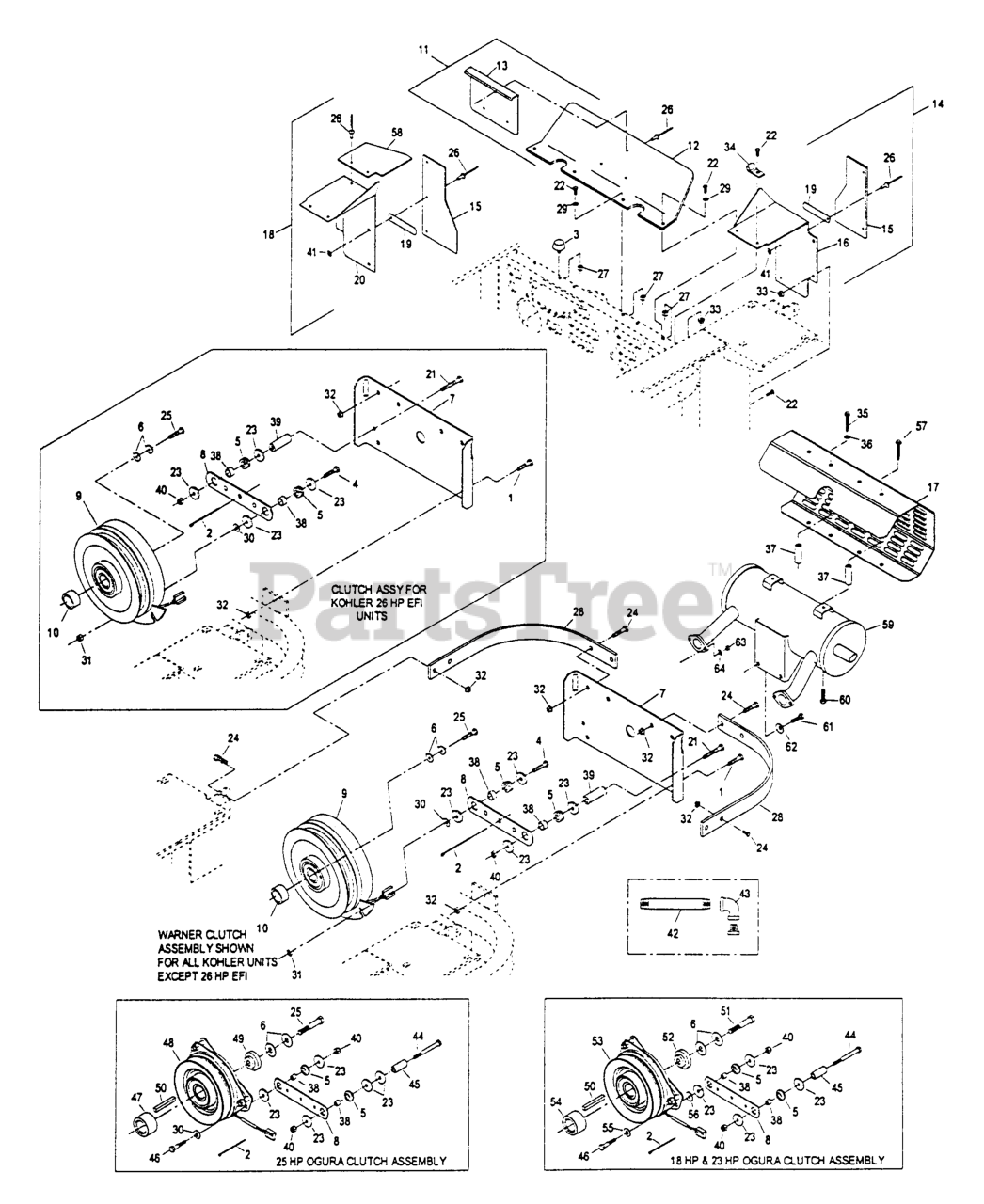

LZ26KC724 - Exmark 72" Lazer Z Zero-Turn Mower, 26hp Kohler (SN: 220000 - 259999) (2000) Kohler Air-Cooled Engine Deck Group Parts Diagram

72" Lazer Z Zero-Turn Mower, 26hp Kohler

Kohler Air-Cooled Engine Deck Group Parts Diagram

  • Title

1

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

2

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

3

Exmark 1-523420

109-2365

$14.99

$

Usually ships in 3-6 days

0

4

Exmark 1-800274

322-6
(Superseded to 322-6)

$4.49

$

In Stock, Qty 20+

0

5

Exmark 1-633630

GROMMET

$5.99

$

In Stock, Qty 16

0

6

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

7

Exmark 1-633615-03

GUARD-CLUTCH

$91.99

$

Usually ships in 3-6 days

0

8

Exmark 1-633543-03

STRAP-CLUTCH, BRAKE

$14.99

$

In Stock, only 2 left!

0

9

Exmark 1-631731

103-0662
(Superseded to 103-0662)

Note: Replacement kits are available to convert to a Warner or Ogura clutch. Reference Parts List below.

$503.99

$

In Stock, only 2 left!

0

Exmark 1-631732

103-0665
(Superseded to 103-0665)

Note: Kohler 26 HP EFI units are only available with a Warner clutch.

$487.99

$

In Stock, only 2 left!

0

10

Exmark 1-633453

SPACER-CLUTCH

$19.99

$

In Stock, only 3 left!

0

Exmark 1-633179

SPACER-CLUTCH

Note: Kohler 26 HP EFI units are only available with a Warner clutch.

$20.99

$

In Stock, only 3 left!

0

11

Exmark 1-634308

1-644276
(Superseded to 1-644276)

$117.99

$

In Stock, only 2 left!

0

12

Exmark 1-633298

103-1308
(Superseded to 103-1308)

$33.99

$

In Stock, only 1 left!

0

13

Exmark 1-633300

Shield, Lift

$

$

Currently unavailable

14

Exmark 1-634796

DISCONTINUED

$

$

Not available

15

Exmark 1-633301

SHIELD-ENGINE

$17.99

$

Usually ships in 3-6 days

0

16

Exmark 1-633795

1-634796
(Superseded to 1-634796)

$

$

Not available

17

Exmark 1-643313-01

1-643313-03
(Superseded to 1-643313-03)

$114.99

$

In Stock, only 4 left!

0

18

Exmark 1-644316

RH SHIELD ASM

$

$

Not available

19

Exmark 1-523285

CLIP-BAFFLE, REAR

$13.99

$

Usually ships in 3-6 days

0

20

Exmark 1-633794

1-644316
(Superseded to 1-644316)

$

$

Not available

21

Exmark 1-800284

322-19
(Superseded to 322-19)

$6.49

$

In Stock, only 1 left!

0

22

Exmark 1-800252

321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

23

Exmark 1-613235

WASHER

$1.99

$

In Stock, Qty 20+

0

Exmark 1-613235

WASHER

$1.99

$

In Stock, Qty 20+

0

24

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

25

Exmark 1-800819

3212-10
(Superseded to 3212-10)

Note: Use Pro-Lock, Nut Type (P/N 840022, .5ml tube) on clutch bolt.

$6.49

$

In Stock, Qty 11

0

26

Exmark 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

27

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

28

Exmark 1-643264-03

DISCONTINUED

$

$

Not available

29

Exmark 1-805256

3256-2
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

30

Exmark 1-805258

3256-3
(Superseded to 3256-3)

$0.99

$

In Stock, Qty 20+

0

31

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

32

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

33

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 20+

0

34

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

35

Exmark 1-809076

SCREW

$2.99

$

In Stock, Qty 13

0

36

Exmark 1-323235

WASHER-SPRING

$5.49

$

In Stock, Qty 9

0

37

Exmark 1-323236

SPACER

$7.99

$

In Stock, Qty 12

0

38

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

39

Exmark 1-633988

SPACER-ANCHOR, CLUTCH

$11.99

$

In Stock, only 2 left!

0

40

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

41

Exmark 1-805507

3256-63
(Superseded to 3256-63)

$1.49

$

In Stock, only 2 left!

0

42

Exmark 1-543232

NIPPLE

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$21.99

$

Usually ships in 3-6 days

0

43

Exmark 1-303428

ELBOW-90 DEG

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$

$

Not available

44

Exmark 1-800281

322-14
(Superseded to 322-14)

$2.99

$

In Stock, Qty 8

0

45

Exmark 1-633082

BUSHING-LEVER, LIFT

$11.99

$

Usually ships in 3-6 days

0

46

Exmark 1-800275

322-7
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

47

Exmark 1-643179

SPACER,CLUTCH

$

$

Not available

48

Exmark 1-641212

103-0663
(Superseded to 103-0663)

Note: Replacement kits are available to convert to a Warner or Ogura clutch. Reference below.

$638.99

$

Usually ships in 3-6 days

0

49

Exmark 1-643180

KEEPER,CLUTCH

$

$

Not available

50

Exmark 1-807261

KEY,MACH HRD

$

$

Not available

51

Exmark 1-800820

3212-12
(Superseded to 3212-12)

Note: Use Pro-Lock, Nut Type (P/N 840022, .5ml tube) on clutch bolt.

$3.49

$

In Stock, Qty 13

0

52

Exmark 1-643182

DISCONTINUED

$

$

Not available

53

Clutch W/Tie (18 & 23hp Ogura)

Note: 18 & 23 HP Ogura clutches will only be serviced with PN 641213 18 & 23 HP Warner Conversion Kit

$

$

Not available

54

Exmark 1-643183

SPACER,CLUTCH

$24.99

$

Usually ships in 3-6 days

0

55

Exmark 1-805257

3256-23
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 20+

0

56

Exmark 1-643181

DISCONTINUED

$

$

Not available

57

Exmark 1-809108

SCREW-HWH

$6.49

$

In Stock, only 3 left!

0

58

Exmark 1-643315

BAFFLE-COOLER, ENGINE

$15.99

$

Usually ships in 3-6 days

0

59

Exmark 1-643176

103-7483
(Superseded to 103-7483)

$332.99

$

In Stock, only 3 left!

0

60

Exmark 1-809102

9266934
(Superseded to 9266934)

$8.99

$

In Stock, only 3 left!

0

61

Exmark 1-800315

324-2
(Superseded to 324-2)

$4.99

$

In Stock, only 3 left!

0

62

Exmark 1-805007

3253-6
(Superseded to 3253-6)

$0.99

$

In Stock, Qty 20+

0

63

Exmark 1-809099

33014-00
(Superseded to 33014-00)

$0.99

$

In Stock, Qty 20+

0

64

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 7

0

Exmark 1-641300

103-0665
(Superseded to 103-0665)

Note: (Current 25 HP Warner)

$487.99

$

In Stock, only 2 left!

0

Exmark 1-641299

103-0663
(Superseded to 103-0663)

Note: (Current 25 HP Ogura)

$638.99

$

Usually ships in 3-6 days

0

Exmark 1-631731

103-0662
(Superseded to 103-0662)

Note: Current 18 & 23 HP Warner. No Ogura Conversion Kit available.

$503.99

$

In Stock, only 2 left!

0

Exmark 1-641213

103-0660
(Superseded to 103-0660)

Note: Current 18 & 23 HP Ogura; 18 & 23 HP Ogura clutches will only be serviced with PN 641213 18 & 23 HP Warner Conversion Kit

$555.99

$

Usually ships in 3-6 days

0

Engine Oil Filter

Note: Kohler Part No. 5205002

$

$

Not available

Air Precleaner

Note: (For 18 & 23hp Engine); Kohler Part No. 2408302

$

$

Not available

Air Precleaner

Note: (For 25hp Engine); Kohler Part No. 2408305

$

$

Not available

Air Filter

Note: (For 18 & 23hp Engine); Kohler Part No. 4708303

$

$

Not available

Air Filter

Note: (For 25hp Engine); Kohler Part No. 2408303

$

$

Not available

Air Filter

Note: (For 26hp EFI Engine); Kohler Part No. 2508301

$

$

Not available

Safety Filter

Note: (For 26hp EFI Engine); Kohler Part No. 2508304

$

$

Not available

Exmark 1-840022

PRO-LOCK,NUT TYPE

$20.99

$

Usually ships in 3-6 days

0
