LZ26KC724 - Exmark 72" Lazer Z Zero-Turn Mower, 26hp Kohler (SN: 220000 - 259999) (2000) Front Frame Group Parts Diagram

72" Lazer Z Zero-Turn Mower, 26hp Kohler

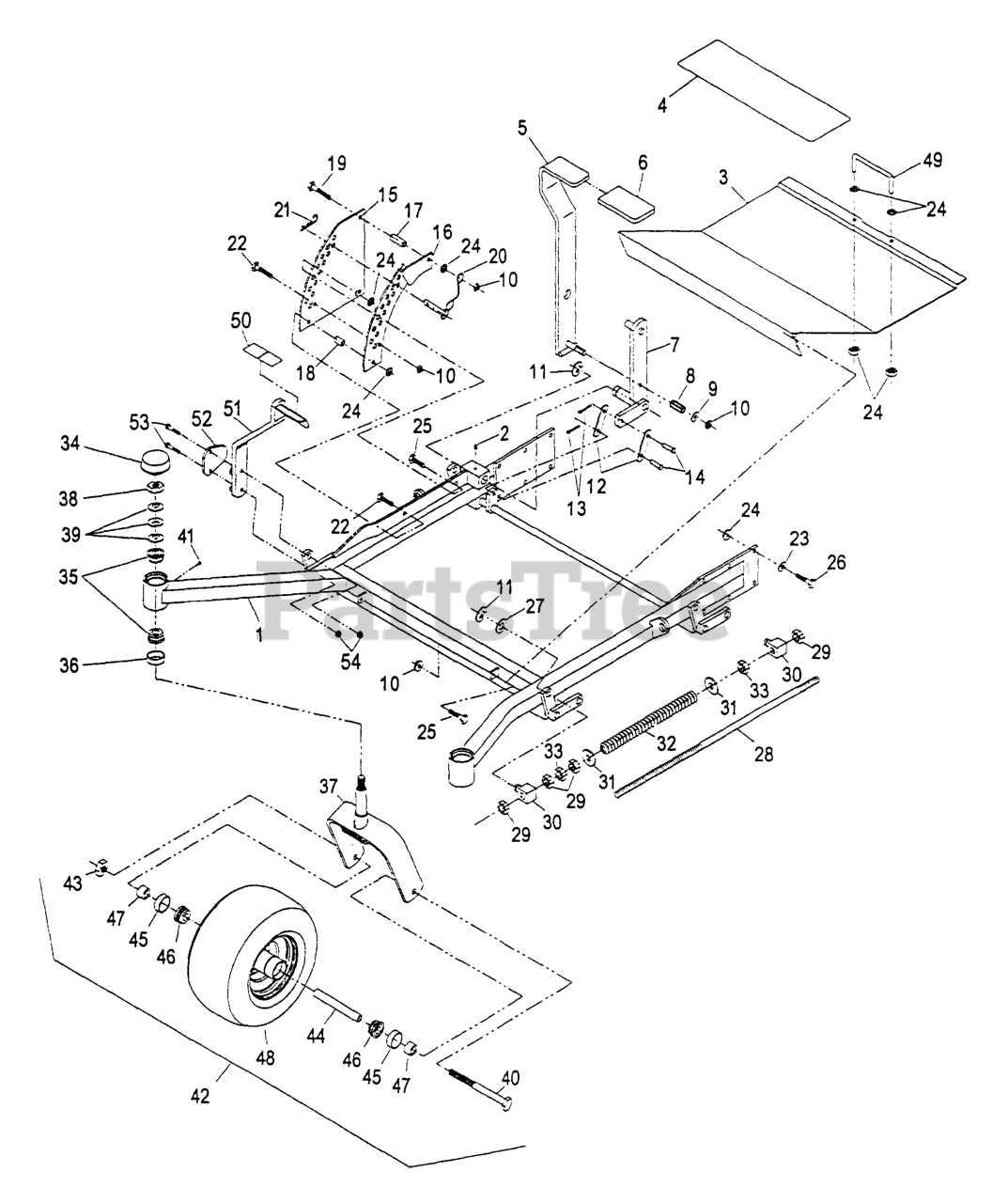

Front Frame Group Parts Diagram

  • Title

1

Exmark 1-632518-01

103-3658
(Superseded to 103-3658)

$

$

Not available

Exmark 1-632513-01

103-3659
(Superseded to 103-3659)

$3181.99

$

Usually ships in 3-6 days

0

Exmark 1-642046-01

103-3661
(Superseded to 103-3661)

$

$

Not available

2

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.49

$

In Stock, Qty 20+

0

3

Exmark 1-633556-01

103-1502
(Superseded to 103-1502)

$

$

Not available

4

Exmark 1-633553

PAD-ANTISKID

$13.99

$

In Stock, Qty 7

0

5

Exmark 1-634312

103-2084
(Superseded to 103-2084)

$77.99

$

Usually ships in 3-6 days

0

Exmark 1-632324

103-2084
(Superseded to 103-2084)

$77.99

$

Usually ships in 3-6 days

0

6

Exmark 1-633295

GRIP-LEVER, LIFT

$7.99

$

In Stock, Qty 15

0

7

Exmark 1-632219-03

109-0632
(Superseded to 109-0632)

$106.99

$

Usually ships in 3-6 days

0

8

Exmark 1-633325

SPRING-COMPRESSION

$5.49

$

Usually ships in 3-6 days

0

9

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

10

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

11

Exmark 1-808505

32151-103
(Superseded to 32151-103)

$3.49

$

In Stock, Qty 20+

0

12

Exmark 1-633068

ARM-LIFT, DECK

$11.99

$

Usually ships in 3-6 days

0

13

Exmark 1-806761

3272-10
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 11

0

14

Exmark 1-808284

PIN-CLEVIS

$3.49

$

In Stock, Qty 20+

0

15

Exmark 1-633889-01

PLATE-LIFT, DECK

$

$

Not available

16

Exmark 1-632899-01

PLATE-LIFT, DECK

$

$

Not available

17

Exmark 1-633082

BUSHING-LEVER, LIFT

$11.99

$

In Stock, only 2 left!

0

18

Exmark 1-633080

BUSHING-LEVER, LIFT

$10.99

$

Usually ships in 3-6 days

0

19

Exmark 1-800299

323-13
(Superseded to 323-13)

$3.99

$

In Stock, Qty 20+

0

20

Exmark 1-633097

PIN-HITCH (W/LANYARD)

$24.99

$

In Stock, only 2 left!

0

21

Exmark 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

22

Exmark 1-800295

323-9
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

23

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.49

$

In Stock, Qty 20+

0

24

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

25

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

26

Exmark 1-800293

323-7
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

27

Exmark 1-805271

3256-29
(Superseded to 3256-29)

$2.99

$

In Stock, only 2 left!

0

28

Exmark 1-633096

ROD-LIFT, DECK

$23.99

$

In Stock, Qty 6

0

29

Exmark 1-804522

3217-11
(Superseded to 3217-11)

$3.99

$

In Stock, Qty 20+

0

30

Exmark 1-633441

SWIVEL-DECK MOUNT, REAR

$27.99

$

Usually ships in 3-6 days

0

31

Exmark 1-805268

3256-7
(Superseded to 3256-7)

$1.99

$

In Stock, Qty 20+

0

32

Exmark 1-633064

SPRING-SUPPORT, DECK

$33.99

$

Usually ships in 3-6 days

0

Exmark 1-643015

SPRING-SUPPORT, DECK

$42.99

$

Usually ships in 3-6 days

0

33

Exmark 1-804755

3218-6
(Superseded to 3218-6)

$6.99

$

In Stock, Qty 19

0

34

Exmark 1-543513

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

35

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

0

Exmark 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 20+

0

36

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0

37

Exmark 1-632511-01

116-8883
(Superseded to 116-8883)

$155.99

$

In Stock, only 3 left!

0

Exmark 1-642111-01

116-8887
(Superseded to 116-8887)

Note: 52" Liquid cooled units and all 60" & 72" units.

$141.99

$

In Stock, only 1 left!

0

38

Exmark 1-804266

3296-51
(Superseded to 3296-51)

$6.49

$

In Stock, Qty 20+

0

39

Exmark 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

40

Exmark 1-800339

325-36
(Superseded to 325-36)

$8.99

$

In Stock, Qty 20+

0

Exmark 1-800335

325-24
(Superseded to 325-24)

$15.99

$

In Stock, only 2 left!

0

41

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

42

Exmark 1-634662

CASTER WHEEL ASM

Note: Use these components for units that have a grease zerk on the caster wheel hub.

$246.99

$

In Stock, only 1 left!

0

Exmark 103-0068

103-5189
(Superseded to 103-5189)

Note: Use these components for units that DO NOT have a grease zerk on the caster wheel hub.

$249.99

$

Usually ships in 3-6 days

0

Exmark 1-644251

CASTER WHEEL ASM

Note: Use these components for units that have a grease zerk on the caster wheel hub.

$234.99

$

In Stock, only 1 left!

0

Exmark 103-0069

103-5188
(Superseded to 103-5188)

Note: Use these components for units that DO NOT have a grease zerk on the caster wheel hub.

$232.99

$

In Stock, Qty 8

0

43

Exmark 1-804269

3296-45
(Superseded to 3296-45)

$4.49

$

In Stock, Qty 20+

0

44

Exmark 1-633579

SPACER-CASTER, FRONT

$13.99

$

Usually ships in 3-6 days

0

Exmark 1-633959

SPACER-CASTER, FRONT

$18.99

$

In Stock, Qty 7

0

45

Exmark 1-633580

SEAL-BEARING

Note: Use these components for units that have a grease zerk on the caster wheel hub.

$9.49

$

In Stock, Qty 9

0

Exmark 103-0063

SEAL-CASTER

Note: Use these components for units that DO NOT have a grease zerk on the caster wheel hub.

$8.99

$

In Stock, Qty 20+

0

46

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$21.99

$

In Stock, Qty 20+

0

47

Exmark 1-633581

SPACER-BEARING

$4.99

$

In Stock, Qty 18

0

48

Exmark 1-633582

WHEEL AND TIRE ASM

Note: Use these components for units that have a grease zerk on the caster wheel hub.

$151.99

$

In Stock, only 1 left!

0

Exmark 103-0064

103-5189
(Superseded to 103-5189)

Note: Use these components for units that DO NOT have a grease zerk on the caster wheel hub.

$249.99

$

Usually ships in 3-6 days

0

Exmark 1-633002

TIRE

$99.99

$

Usually ships in 3-6 days

0

Exmark 1-633583

WHEEL

Note: Use these components for units that have a grease zerk on the caster wheel hub.

$116.99

$

Usually ships in 3-6 days

0

Exmark 103-0070

103-5188
(Superseded to 103-5188)

Note: Use these components for units that DO NOT have a grease zerk on the caster wheel hub.

$232.99

$

In Stock, Qty 8

0

Exmark 1-633971

1-644251
(Superseded to 1-644251)

Note: Use these components for units that have a grease zerk on the caster wheel hub.

$234.99

$

In Stock, only 1 left!

0

Exmark 103-0065

117-0361
(Superseded to 117-0361)

Note: Use these components for units that DO NOT have a grease zerk on the caster wheel hub.

$232.99

$

In Stock, Qty 8

0

Exmark 1-523009

TIRE

$113.99

$

Usually ships in 3-6 days

0

Exmark 1-633987

WHEEL

Note: Use these components for units that have a grease zerk on the caster wheel hub.

$232.99

$

In Stock, only 1 left!

0

Exmark 103-0071

103-5188
(Superseded to 103-5188)

Note: Use these components for units that DO NOT have a grease zerk on the caster wheel hub.

$232.99

$

In Stock, Qty 8

0

Exmark 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 14

0

49

Exmark 1-633587

HANDLE,DECK

$

$

Not available

50

Exmark 1-543161

DISCONTINUED

Note: These components are standard on the Kohler 26 HP EFI unit, they are an optional kit for other models PN 103-0149.

$

$

Not available

51

Exmark 103-0147

103-0147-01
(Superseded to 103-0147-01)

Note: These components are standard on the Kohler 26 HP EFI unit, they are an optional kit for other models PN 103-0149.

$174.99

$

In Stock, only 2 left!

0

52

Exmark 1-643220-01

STRAP

Note: These components are standard on the Kohler 26 HP EFI unit, they are an optional kit for other models PN 103-0149.

$48.99

$

Usually ships in 3-6 days

0

53

Exmark 1-800275

322-7
(Superseded to 322-7)

Note: These components are standard on the Kohler 26 HP EFI unit, they are an optional kit for other models PN 103-0149.

$1.49

$

In Stock, Qty 20+

0

54

Exmark 1-809001

32128-20
(Superseded to 32128-20)

Note: These components are standard on the Kohler 26 HP EFI unit, they are an optional kit for other models PN 103-0149.

$1.49

$

In Stock, Qty 20+

0

Exmark 1-850337

PAINT,SPRAY RED

$33.99

$

In Stock, Qty 13
