LZ25KC724 - Exmark 72" Lazer Z Zero-Turn Mower, 25hp Kohler (SN: 220000 - 259999) (2000) Kawasaki Liquid-Cooled Engine Deck Group (Part 2) Parts Diagram

72" Lazer Z Zero-Turn Mower, 25hp Kohler

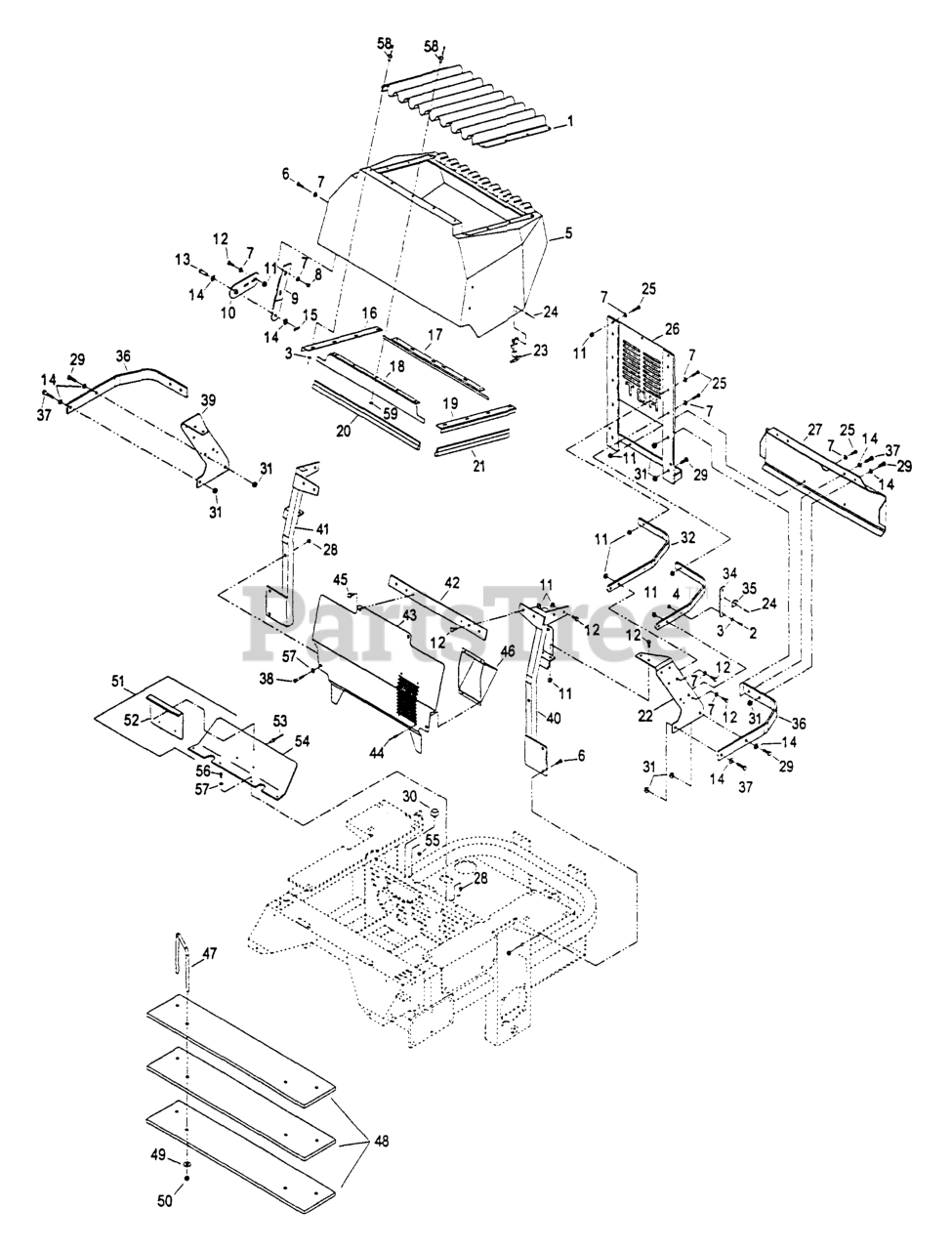

Kawasaki Liquid-Cooled Engine Deck Group (Part 2) Parts Diagram

  • Title

1

Exmark 1-633864-03

SCREEN-RADIATOR

$266.99

$

Usually ships in 3-6 days

0

2

Exmark 1-803069

1-803075
(Superseded to 1-803075)

$1.49

$

In Stock, Qty 5

0

3

Exmark 1-805252

3256-14
(Superseded to 3256-14)

$0.99

$

In Stock, Qty 20+

0

4

Exmark 1-804252

3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

5

Exmark 1-633857

DISCONTINUED

$

$

Not available

6

Exmark 1-800272

322-4
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

7

Exmark 1-805257

3256-23
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 20+

0

8

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 14

0

9

Exmark 1-633885-03

PLATE-HINGE, HOOD

$29.99

$

Usually ships in 3-6 days

0

10

Exmark 1-632986-03

SHACKLE-HINGE

$53.99

$

Usually ships in 3-6 days

0

11

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

12

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

13

Exmark 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 5

0

14

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

15

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

16

Exmark 1-643106-03

ANGLE-RADIATOR, RH

$28.99

$

Usually ships in 3-6 days

0

17

Exmark 1-643108-03

ANGLE-RADIATOR, BOTTOM

$38.99

$

Usually ships in 3-6 days

0

18

Exmark 1-643107-03

ANGLE-RADIATOR, TOP

$46.99

$

Usually ships in 3-6 days

0

19

Exmark 1-643105-03

ANGLE-RADIATOR, LH

$28.99

$

Usually ships in 3-6 days

0

20

Exmark 1-643187

SEAL-TRIM

$21.99

$

Usually ships in 3-6 days

0

21

Exmark 1-643186

SEAL-TRIM

$25.99

$

Usually ships in 3-6 days

0

22

Exmark 1-633900-03

103-0896-03
(Superseded to 103-0896-03)

$

$

Not available

23

Exmark 1-643188

LATCH-RUBBER

$21.99

$

In Stock, only 2 left!

0

24

Exmark 1-803056

3269-24
(Superseded to 3269-24)

$2.99

$

In Stock, Qty 12

0

25

Exmark 1-800273

322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

26

Exmark 1-632873-03

DISCONTINUED

$

$

Not available

27

Exmark 1-633886-03

DISCONTINUED

$

$

Not available

28

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

29

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

30

Exmark 1-523420

109-2365

$14.99

$

Usually ships in 3-6 days

0

31

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

32

Exmark 1-633897-03

RIB-TOP

$

$

Not available

33

Exmark 1-633898-03

DISCONTINUED

$

$

Not available

34

Exmark 1-633877

Bar, Latch Hook

$

$

Not available

35

Exmark 1-643189

249-40
(Superseded to 249-40)

$11.99

$

Usually ships in 3-6 days

0

36

Exmark 1-633896-03

DISCONTINUED

$

$

Not available

37

Exmark 1-800293

323-7
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

38

Exmark 1-800256

321-9
(Superseded to 321-9)

$4.99

$

In Stock, only 2 left!

0

39

Exmark 1-633901-03

103-0897-03
(Superseded to 103-0897-03)

$

$

Not available

40

Exmark 1-632984-03

BRACE-RADIATOR, LH

$169.99

$

Usually ships in 3-6 days

0

41

Exmark 1-632985-03

DISCONTINUED

$

$

Not available

42

Exmark 1-633878-03

DISCONTINUED

$

$

Not available

43

Exmark 1-643087-03

Deflector, Air
(Superseded to 103-2870-03)

$112.99

$

Usually ships in 3-6 days

0

44

Exmark 1-803010

Pop Rivet- Stl 3/16x.250
(Superseded to 3269-3)

$0.99

$

In Stock, only 4 left!

0

45

Exmark 1-809086

49-2040
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

46

Exmark 1-643096-03

PLENUM-INTAKE, AIR

$

$

Not available

47

Exmark 1-643147

DISCONTINUED (EXMARK)

$

$

Not available

48

Exmark 1-643150-01

DISCONTINUED (EXMARK)

$

$

Not available

Exmark 1-643150-01

DISCONTINUED (EXMARK)

$

$

Not available

49

Exmark 1-805260

3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

50

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

51

Exmark 1-634308

1-644276
(Superseded to 1-644276)

$102.99

$

In Stock, only 1 left!

0

52

Exmark 1-633300

Shield, Lift

$

$

Currently unavailable

53

Exmark 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

54

Exmark 1-633298

103-1308
(Superseded to 103-1308)

$29.99

$

In Stock, only 2 left!

0

55

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 6

0

56

Exmark 1-800252

321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

57

Exmark 1-805256

3256-2
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

58

Exmark 1-803072

RIVET

$2.99

$

Usually ships in 3-6 days

0

59

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 14

0
