LZ25KC724 - Exmark 72" Lazer Z Zero-Turn Mower, 25hp Kohler (SN: 190000 - 219999) (1999) Kohler 26 HP EFI Electrical Group Parts Diagram

72" Lazer Z Zero-Turn Mower, 25hp Kohler

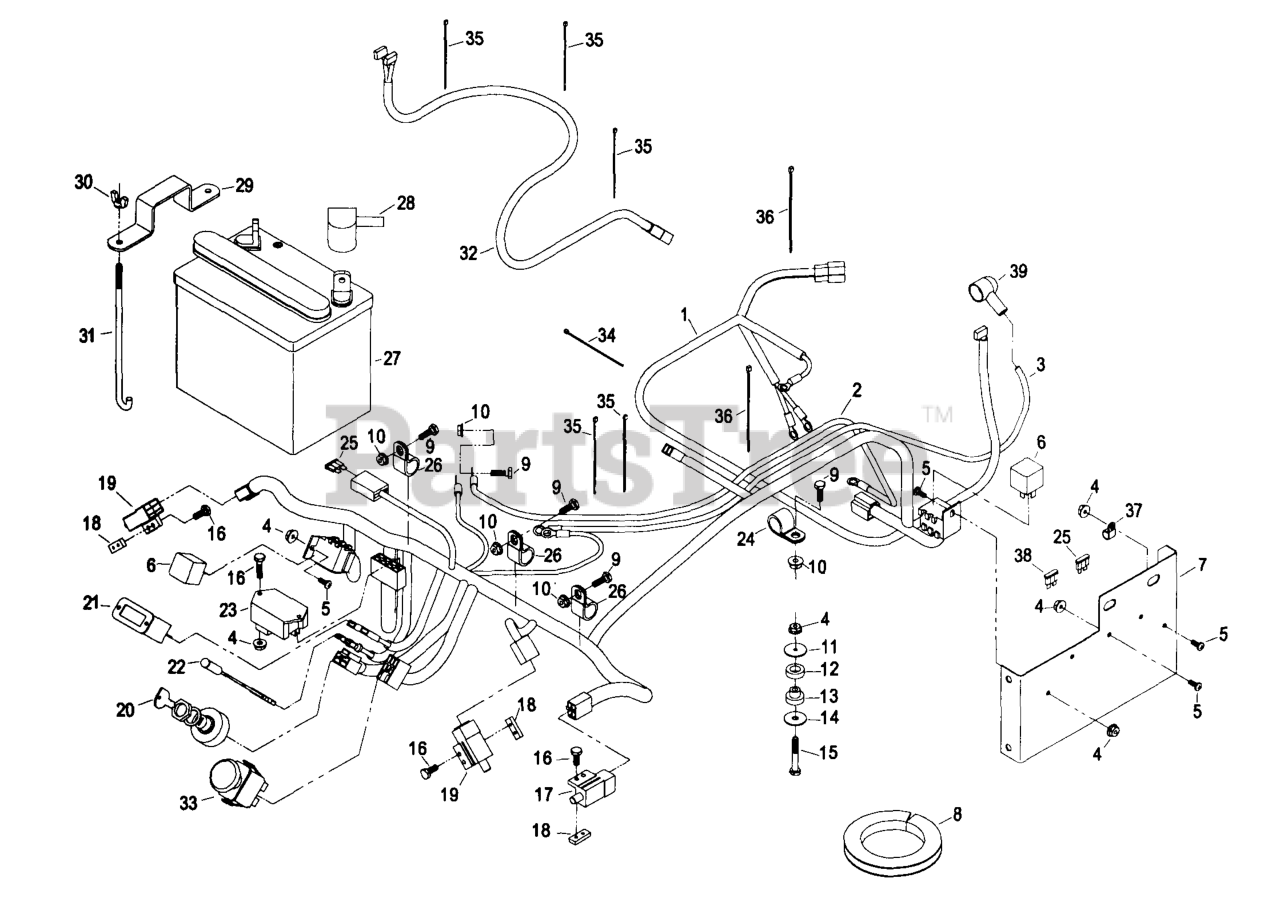

Kohler 26 HP EFI Electrical Group Parts Diagram

  • Title

1

Exmark 1-643229

HARNESS,WIRING 26KC EFI

Note: Use dielectric grease on all wiring harness connectors

$

$

Not available

2

Exmark 1-633307

WIRE-GROUND

$41.99

$

In Stock, only 3 left!

0

3

Exmark 1-523279

109-7608
(Superseded to 109-7608)

$44.99

$

Usually ships in 3-6 days

0

4

Exmark 1-804252

3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

5

Exmark 1-803071

SCREW

$1.49

$

In Stock, Qty 13

0

6

Exmark 1-643275

RELAY

$23.99

$

In Stock, Qty 6

0

7

Exmark 1-643257-03

PANEL-FUSES & RELAYS

$

$

Not available

8

Exmark 1-643245

1-643246
(Superseded to 1-643246)

$

$

Not available

9

Exmark 1-800252

321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

10

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 6

0

11

Exmark 1-805518

WASHER

$

$

Not available

12

Exmark 1-643325

RINGMOUNT-VIBRATION

$

$

Not available

13

Exmark 1-643326

MOUNT-BUSHING, VIBRATION

$

$

Not available

14

Exmark 1-805519

WASHER

$

$

Not available

15

Exmark 1-803074

SCREW

$

$

Not available

16

Exmark 1-803028

3290-500
(Superseded to 3290-500)

$1.49

$

In Stock, Qty 20+

0

17

Exmark 1-633110

SWITCH-BRAKE

$22.99

$

In Stock, only 2 left!

0

18

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

19

Exmark 1-633111

SWITCH

$21.99

$

In Stock, Qty 19

0

20

Exmark 1-543070

SWITCH,IGNITION

$44.99

$

In Stock, only 2 left!

0

21

Exmark 1-513374

METER-HOUR
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

22

Exmark 1-643267

INDICATOR-LED, RED

$25.99

$

In Stock, only 1 left!

0

23

Exmark 1-643271

MODULE,INTERLOCK

$

$

Not available

24

Exmark 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

25

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.49

$

In Stock, Qty 13

0

26

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

27

Exmark 1-603479

Battery-12v

$

$

Not available

28

Exmark 1-543391

109-2407
(Superseded to 109-2407)

$5.49

$

In Stock, only 3 left!

0

29

Exmark 1-633652-03

STRAP-HOLDDOWN

$21.99

$

In Stock, only 3 left!

0

30

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 15

0

31

Exmark 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 9

0

32

Exmark 1-633840

103-1227
(Superseded to 103-1227)

$23.99

$

Usually ships in 3-6 days

0

33

Exmark 1-633673

103-5221
(Superseded to 103-5221)

$58.99

$

In Stock, Qty 20+

0

34

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

35

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

36

Exmark 1-643115

TIE-PLASTIC

$2.99

$

Usually ships in 3-6 days

0

37

Exmark 1-323229

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

38

Exmark 1-816002

1-816001
(Superseded to 1-816001)

$6.49

$

In Stock, Qty 13

0

39

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0
