LZ25KC724 - Exmark 72" Lazer Z Zero-Turn Mower, 25hp Kohler (SN: 190000 - 219999) (1999) Kawasaki Liquid-Cooled Electrical Group Parts Diagram

72" Lazer Z Zero-Turn Mower, 25hp Kohler

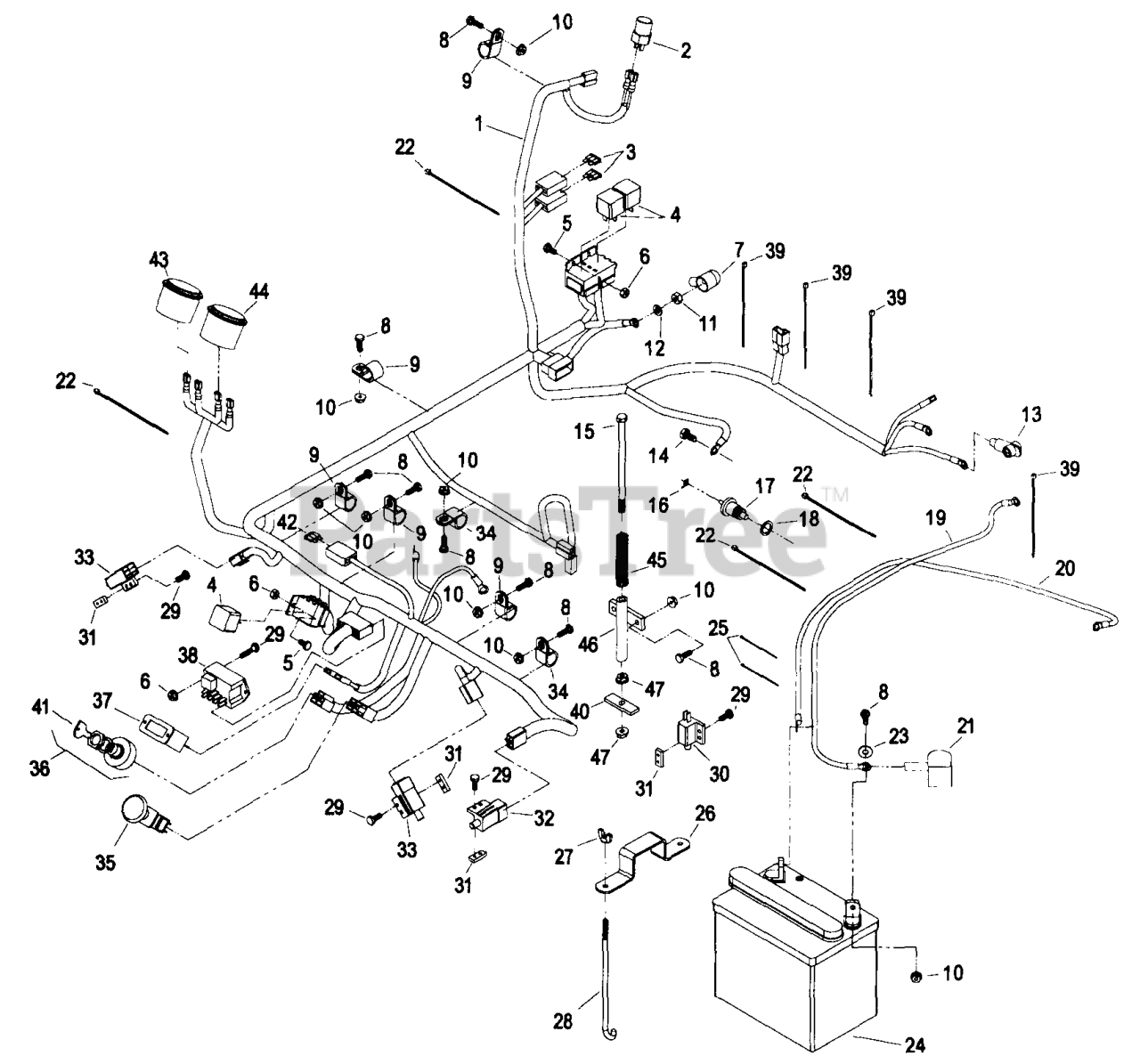

Kawasaki Liquid-Cooled Electrical Group Parts Diagram

  • Title

1

Exmark 1-643095

DISCONTINUED

Note: (Use dielectric grease on all wiring harness connectors.)

$

$

Not available

2

Exmark 1-633833

SWITCH-THERMAL, FAN

$106.99

$

Usually ships in 3-6 days

0

3

Exmark 1-816003

FUSE-BLADE TYPE, 30 AMP

$5.99

$

Usually ships in 3-6 days

0

4

Exmark 1-643275

RELAY

$23.99

$

In Stock, Qty 6

0

5

Exmark 1-803071

SCREW

$1.49

$

In Stock, Qty 13

0

6

Exmark 1-804252

3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

7

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

8

Exmark 1-800252

321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

9

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

10

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 6

0

11

Exmark 1-809099

33014-00
(Superseded to 33014-00)

$0.99

$

In Stock, Qty 20+

0

12

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

13

Exmark 1-643178

CAP-INSULATOR, RED

$5.49

$

Usually ships in 3-6 days

0

14

Exmark 1-809026

Screw, Hex M8-1.25 X 16

$

$

Not available

15

Exmark 1-800282

SCREW-HH

$5.49

$

In Stock, only 1 left!

0

16

Exmark 1-643145

TAB

$2.99

$

In Stock, Qty 5

0

17

Exmark 1-643036

SENDER UNIT-TEMPERATURE

$

$

Not available

18

Exmark 1-643153

WASHER-ALUMINUM

$5.49

$

Usually ships in 3-6 days

0

19

Exmark 1-523279

109-7608
(Superseded to 109-7608)

$44.99

$

Usually ships in 3-6 days

0

20

Exmark 1-633307

WIRE-GROUND

$41.99

$

In Stock, only 3 left!

0

21

Exmark 1-543391

109-2407
(Superseded to 109-2407)

$5.49

$

In Stock, only 3 left!

0

22

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

23

Exmark 1-805256

3256-2
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

24

Exmark 1-603479

Battery-12v

$

$

Not available

25

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

26

Exmark 1-633652-03

STRAP-HOLDDOWN

$21.99

$

In Stock, only 3 left!

0

27

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 15

0

28

Exmark 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 13

0

29

Exmark 1-803028

3290-500
(Superseded to 3290-500)

$1.49

$

In Stock, Qty 20+

0

30

Exmark 1-513152

SWITCH-CLOSED, NORMALLY

$13.99

$

In Stock, Qty 15

0

31

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

32

Exmark 1-633110

SWITCH-BRAKE

$22.99

$

In Stock, only 2 left!

0

33

Exmark 1-633111

SWITCH

$21.99

$

In Stock, Qty 19

0

34

Exmark 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

35

Exmark 1-633673

103-5221
(Superseded to 103-5221)

$58.99

$

In Stock, Qty 20+

0

36

Exmark 1-543070

SWITCH,IGNITION

$44.99

$

In Stock, only 2 left!

0

37

Exmark 1-513374

METER-HOUR
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

38

Exmark 1-633856

MODULE,IGNITION INTRLOCK

$191.99

$

Usually ships in 3-6 days

0

39

Exmark 1-643115

TIE-PLASTIC

$2.99

$

Usually ships in 3-6 days

0

40

Exmark 1-513180

PLATE-SWITCH, SEAT

$17.99

$

In Stock, only 3 left!

0

41

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

42

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.49

$

In Stock, Qty 13

0

43

Exmark 1-643037

GAUGE-VOLTMETER

$210.99

$

In Stock, only 1 left!

0

44

Exmark 1-643021

GAUGE-TEMPERATURE

$142.99

$

In Stock, only 2 left!

0

45

Exmark 1-523415

SPRING-SWITCH, SEAT

$33.99

$

In Stock, only 1 left!

0

46

Exmark 1-522424-03

MOUNT-SPRING, SEAT

$37.99

$

Usually ships in 3-6 days

0

47

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0
