LZ25KC604 - Exmark 60" Lazer Z Zero-Turn Mower, 25hp Kohler (SN: 320000 - 369999) (2002) 72" Deck Group Parts Diagram

60" Lazer Z Zero-Turn Mower, 25hp Kohler

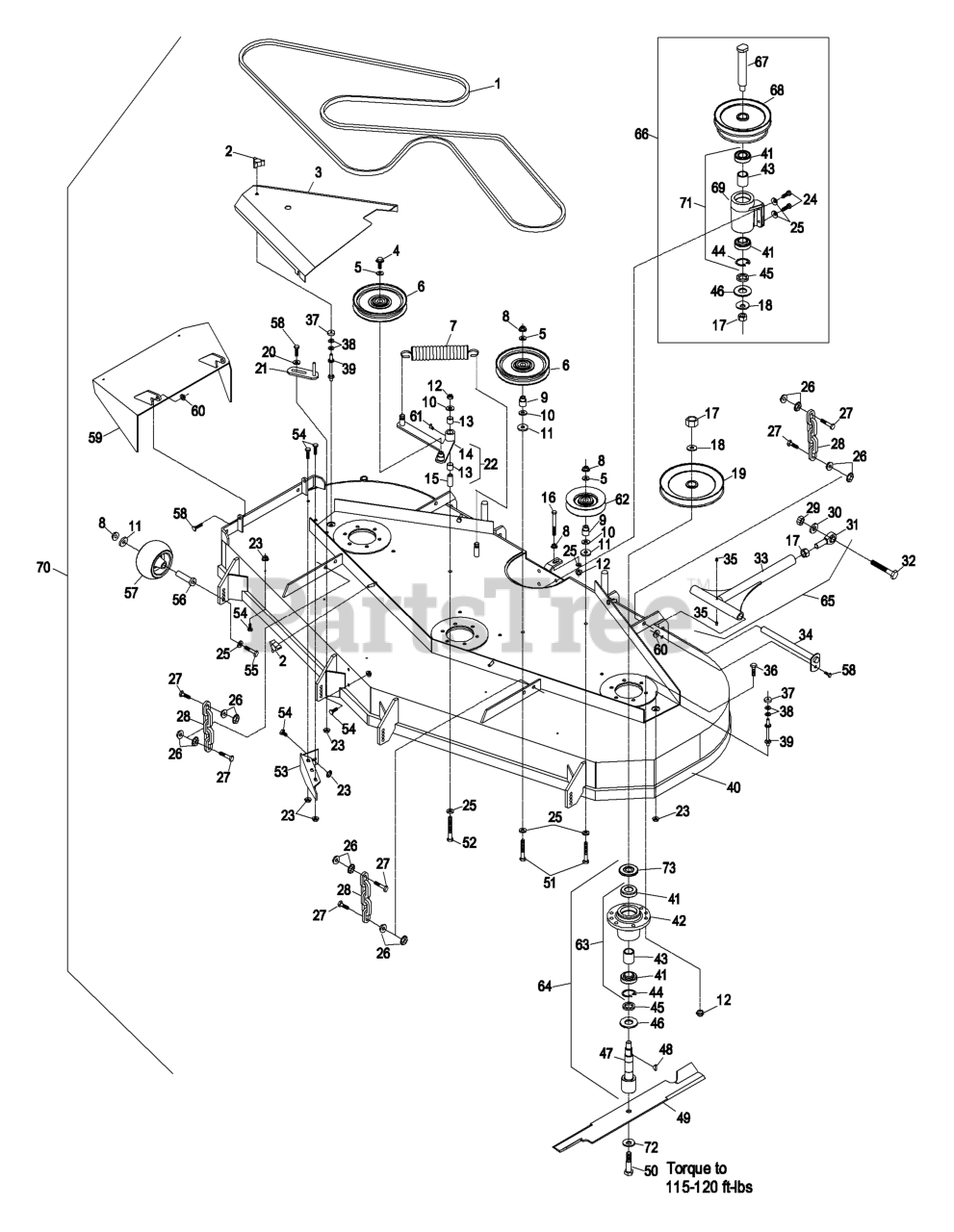

72" Deck Group Parts Diagram

  • Title

1

Exmark 1-643052

BELT-V
(Superseded to 1-643052-SL)

$212.99

$

In Stock, Qty 10

0

2

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

3

Exmark 1-643076-01

SHIELD,BELT RH

Note: (Shown)

$125.99

$

In Stock, only 1 left!

0

Exmark 1-643075-01

SHIELD,BELT LH

$134.99

$

In Stock, only 3 left!

0

4

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

5

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

6

Exmark 1-633109

126-7685
(Superseded to 126-7685)

$62.99

$

In Stock, Qty 20+

0

7

Exmark 1-633151

116-6317
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 7

0

8

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

9

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

10

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

11

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

12

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

13

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

14

Exmark 1-632119-03

103-5693
(Superseded to 103-5693)

$136.99

$

In Stock, Qty 11

0

15

Exmark 1-603044

BUSHING

$14.99

$

In Stock, only 4 left!

0

16

Exmark 323-20

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

17

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

18

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

19

Exmark 1-643269

SHEAVE,BLADE DRIVE7.5EOD

$102.99

$

Usually ships in 3-6 days

0

20

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

21

Exmark 1-322110

GUIDE-BELT

$12.99

$

In Stock, Qty 8

0

22

Exmark 1-634244

103-5693
(Superseded to 103-5693)

$136.99

$

In Stock, Qty 11

0

23

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

24

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

25

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

26

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 17

0

27

Exmark 103-1898

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

28

Exmark 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 16

0

29

Exmark 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 14

0

30

Exmark 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

31

Exmark 1-633029

BALLJOINT-SPHERICAL

$66.99

$

In Stock, Qty 12

0

32

Exmark 327-11

SCREW-HH

$11.99

$

In Stock, Qty 11

0

33

Exmark 103-1073-01

109-1182
(Superseded to 109-1182)

$249.99

$

Usually ships in 3-6 days

0

34

Exmark 1-632199-01

PIN-STRUT

$35.99

$

In Stock, Qty 12

0

35

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

36

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

37

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

38

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

39

Exmark 1-303537

STUD-SHIELD, BELT (SHORT)

$6.49

$

In Stock, Qty 20+

0

40

Exmark 103-0588-01

103-1591
(Superseded to 103-1591)

$5605.99

$

Usually ships in 3-6 days

0

Exmark 1-644149

103-1591
(Superseded to 103-1591)

$5605.99

$

Usually ships in 3-6 days

0

41

Exmark 1-513016

BEARING

$82.99

$

In Stock, Qty 20+

0

42

Exmark 1-323532

103-8280
(Superseded to 103-8280)

$254.99

$

In Stock, only 3 left!

0

43

Exmark 1-323528

SPACER-BEARING

$9.49

$

In Stock, Qty 13

0

44

Exmark 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 16

0

45

Exmark 1-323533

SPACER-PULLEY/BEARING

$5.49

$

In Stock, Qty 11

0

46

Exmark 1-633573

GUARD-BEARING, BOTTOM

$5.49

$

In Stock, Qty 8

0

47

Exmark 103-0584

103-2532
(Superseded to 103-2532)

Note: This component is required if the keyway on the spindle for your unit is for a woodruff key.

$130.99

$

In Stock, only 2 left!

0

Exmark 103-2326

SPINDLE,SHORT

Note: This component is required if the keyway on the spindle for your unit is for a square key.

$121.99

$

Usually ships in 3-6 days

0

48

Exmark 3257-32

KEY-WOODRUFF

Note: This component is required if the keyway on the spindle for your unit is for a woodruff key.

$2.99

$

In Stock, Qty 11

0

Exmark 10-8040

KEY-SQUARE

Note: This component is required if the keyway on the spindle for your unit is for a square key.

$2.99

$

In Stock, Qty 17

0

49

Exmark 1-643006

103-2531-S
(Superseded to 103-2531-S)

$44.99

$

In Stock, Qty 12

0

Exmark 1-643097

103-2521-S
(Superseded to 103-2521-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK724

$43.99

$

In Stock, Qty 18

0

Exmark 1-643428

103-2511-S
(Superseded to 103-2511-S)

$43.99

$

Usually ships in 3-6 days

0

Exmark 1-643429

103-1581-S
(Superseded to 103-1581-S)

$45.99

$

In Stock, Qty 17

0

Exmark 103-1581

103-1581-S
(Superseded to 103-1581-S)

$45.99

$

In Stock, Qty 17

0

50

Exmark 103-0862

SCREW-CAP

$5.99

$

In Stock, Qty 18

0

51

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

52

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

53

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$46.99

$

In Stock, only 4 left!

0

54

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

55

Exmark 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

56

Exmark 1-603602

BUSHING-ROLLER

$23.99

$

In Stock, only 3 left!

0

57

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

58

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

59

Exmark 1-642071-01

WLD,CHUTE 72

$168.99

$

Usually ships in 3-6 days

0

60

Exmark 329-29

Nut, 5/16-18 Nyloc

$

$

Currently unavailable

61

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

62

Exmark 1-603805

PULLEY-IDLER

$54.99

$

In Stock, Qty 12

0

63

Exmark 1-634619

103-8280
(Superseded to 103-8280)

$254.99

$

In Stock, only 3 left!

0

64

Exmark 1-644092

SPINDLE HSG ASSYCOMP72

Note: Also includes items 17, 18, 19, 50 and 72.

$542.99

$

In Stock, only 1 left!

0

65

Exmark 103-1082

ASM,STRUT SHORT

$

$

Not available

66

Exmark 103-0701

ASM,J-SHFTKIT60,72 3750

$609.99

$

In Stock, only 1 left!

0

67

Exmark 1-643393

JACKSHAFT

$33.99

$

Usually ships in 3-6 days

0

68

Exmark 103-0137

SHEAVE,JACKSHAFT-DOUBLE

$161.99

$

Usually ships in 3-6 days

0

69

Exmark 103-0280

103-9746
(Superseded to 103-9746)

$263.99

$

In Stock, only 1 left!

0

70

Exmark 103-0683

Complete Deck Assembly

$

$

Currently unavailable

71

Exmark 103-1192

103-2571
(Superseded to 103-2571)

$331.99

$

Usually ships in 3-6 days

0

72

Exmark 103-0865

WASHER-BLADE BOLT, HEAVY

$5.99

$

In Stock, Qty 18

0

73

Exmark 103-1331

GUARD,BEARING TOP .880

$5.99

$

In Stock, only 1 left!

0

Exmark 1-850337

PAINT,SPRAY RED

$27.99

$

In Stock, Qty 16

0

Exmark MK724

Mulch Kit

$

$

Currently unavailable
