LZ25KC604 - Exmark 60" Lazer Z Zero-Turn Mower, 25hp Kohler (SN: 190000 - 219999) (1999) 60" Deck Group Parts Diagram

60" Lazer Z Zero-Turn Mower, 25hp Kohler

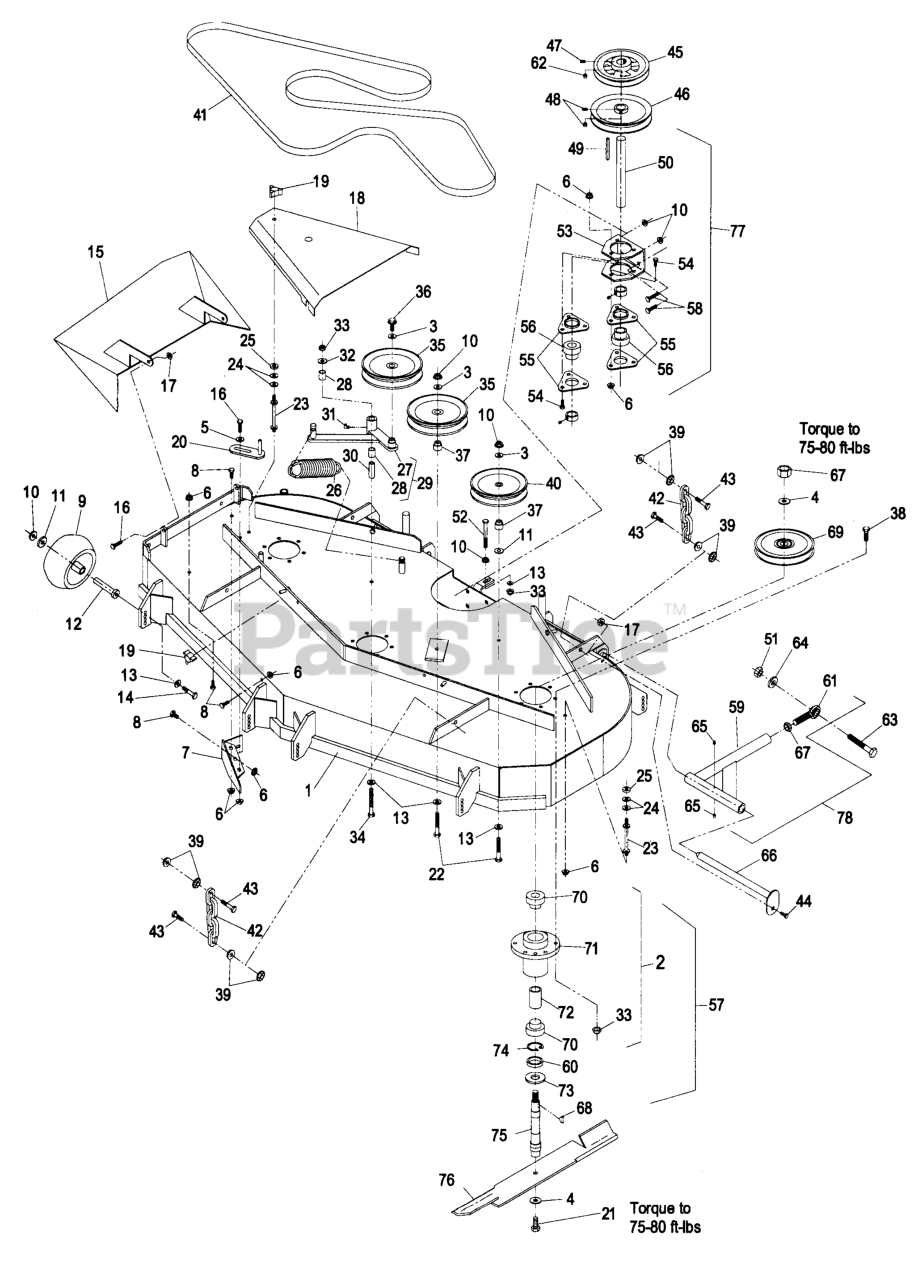

60" Deck Group Parts Diagram

  • Title

1

Exmark 1-632958

103-0702
(Superseded to 103-0702)

$4616.99

$

Usually ships in 3-6 days

0

Exmark 1-634983

103-0702
(Superseded to 103-0702)

$4616.99

$

Usually ships in 3-6 days

0

2

Exmark 1-634619

103-8280
(Superseded to 103-8280)

$254.99

$

In Stock, only 3 left!

0

3

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 16

0

4

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

5

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

6

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

7

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$46.99

$

In Stock, only 4 left!

0

8

Exmark 1-800270

322-2
(Superseded to 322-2)

$2.49

$

In Stock, Qty 13

0

9

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

10

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

11

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

12

Exmark 1-603602

BUSHING-ROLLER

$23.99

$

In Stock, only 3 left!

0

13

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.49

$

In Stock, Qty 20+

0

14

Exmark 1-800807

98-5961
(Superseded to 98-5961)

$5.49

$

In Stock, Qty 20+

0

15

Exmark 1-632939-01

103-5830-01
(Superseded to 103-5830-01)

$151.99

$

Usually ships in 3-6 days

0

16

Exmark 1-800273

322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

17

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

18

Exmark 1-633084-01

SHIELD,BELT

$96.99

$

In Stock, Qty 9

0

19

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

20

Exmark 1-322110

GUIDE-BELT

$12.99

$

In Stock, Qty 8

0

21

Exmark 1-800848

103-1026
(Superseded to 103-1026)

$5.49

$

In Stock, Qty 13

0

22

Exmark 1-800297

323-11
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

23

Exmark 1-303537

STUD-SHIELD, BELT (SHORT)

$6.49

$

In Stock, Qty 20+

0

24

Exmark 1-805258

3256-3
(Superseded to 3256-3)

$0.99

$

In Stock, Qty 20+

0

25

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

26

Exmark 1-633151

116-6317
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 7

0

27

Exmark 1-632119

103-5693
(Superseded to 103-5693)

$136.99

$

In Stock, only 3 left!

0

28

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

29

Exmark 1-634244

103-5693
(Superseded to 103-5693)

$136.99

$

In Stock, only 3 left!

0

30

Exmark 1-603044

BUSHING

$14.99

$

In Stock, only 4 left!

0

31

Exmark 1-811008

302-40
(Superseded to 302-40)

$3.49

$

In Stock, Qty 20+

0

32

Exmark 1-805260

3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

33

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

34

Exmark 1-800299

323-13
(Superseded to 323-13)

$3.99

$

In Stock, only 4 left!

0

35

Exmark 1-633109

126-7685
(Superseded to 126-7685)

$62.99

$

In Stock, Qty 7

0

36

Exmark 1-803016

3234-11
(Superseded to 3234-11)

$4.49

$

In Stock, Qty 20+

0

37

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

38

Exmark 1-800293

323-7
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

39

Exmark 1-809073

32128-37
(Superseded to 32128-37)

$4.49

$

In Stock, Qty 17

0

40

Exmark 1-603805

PULLEY-IDLER

$54.99

$

In Stock, Qty 12

0

41

Exmark 1-633127

BELT,BLADE DRIVE
(Superseded to 1-633127-SL)

$119.99

$

In Stock, Qty 20+

0

42

Exmark 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 16

0

43

Exmark 1-800811

SCREW-CAP, HH

$11.99

$

In Stock, only 3 left!

0

44

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

45

Exmark 1-303498

SHEAVE,BLADE DRIVE

Note: Use antiseize on bore of sheaves.

$145.99

$

In Stock, only 2 left!

0

46

Exmark 1-633010

SHEAVE,SPLIT STEEL

Note: (23hp&25hp) Use antiseize on bore of sheaves.

$72.99

$

In Stock, only 1 left!

0

46

Exmark 1-643292

SHEAVE-SPLIT

Note: (26hp Koh) Use antiseize on bore of sheaves.

$92.99

$

In Stock, only 1 left!

0

47

Exmark 1-803046

30-1710
(Superseded to 30-1710)

Note: Use Pro-lock Nut Type (P/N 840022 .5 ml. tube) on setscrews.

$10.99

$

In Stock, only 2 left!

0

48

Exmark 1-803022

SCREW-SET

Note: Use Pro-lock Nut Type (P/N 840022 .5 ml. tube) on setscrews.

$2.99

$

In Stock, Qty 20+

0

49

Exmark 1-807264

KEY,MACH 1/4X1/4X2-5/8

$5.49

$

In Stock, Qty 7

0

50

Exmark 1-633012

JACKSHAFT,DECK DRIVE

$71.99

$

In Stock, only 1 left!

0

51

Exmark 1-804522

3217-11
(Superseded to 3217-11)

$3.49

$

In Stock, Qty 14

0

52

Exmark 1-800304

323-20
(Superseded to 323-20)

$3.49

$

In Stock, only 2 left!

0

53

Exmark 1-633014-01

BRACKET,JACKSHAFT

$51.99

$

In Stock, only 1 left!

0

54

Exmark 1-807503

3230-1
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

55

Exmark 1-513013

HOUSING-FLANGE

$5.49

$

Usually ships in 3-6 days

0

56

Exmark 1-513012

BEARING,W/COLLAR

$121.99

$

In Stock, Qty 9

0

57

Exmark 1-634972

SPINDLE HSG.ASSY.COMP.

Note: Cutter housing complete includes sheave, washer, and nut.

$416.99

$

In Stock, only 2 left!

0

58

Exmark 1-807507

3231-22
(Superseded to 3231-22)

$3.49

$

In Stock, Qty 20+

0

59

Exmark 1-632690-01

109-1181
(Superseded to 109-1181)

$103.99

$

In Stock, Qty 9

0

60

Exmark 1-323533

SPACER-PULLEY/BEARING

$5.49

$

In Stock, Qty 11

0

61

Exmark 1-633029

BALLJOINT-SPHERICAL

$66.99

$

In Stock, Qty 12

0

62

Exmark 1-803050

SCREW-SET

Note: Use Pro-lock Nut Type (P/N 840022 .5 ml. tube) on setscrews.

$2.99

$

In Stock, Qty 8

0

63

Exmark 1-800343

327-11
(Superseded to 327-11)

$11.99

$

In Stock, Qty 11

0

64

Exmark 1-805010

3253-8
(Superseded to 3253-8)

$0.99

$

In Stock, Qty 20+

0

65

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.49

$

In Stock, Qty 8

0

66

Exmark 1-632199-01

PIN-STRUT

$35.99

$

In Stock, Qty 12

0

67

Exmark 1-804510

3219-6
(Superseded to 3219-6)

$3.99

$

In Stock, Qty 20+

0

68

Exmark 1-807006

3257-32
(Superseded to 3257-32)

$2.99

$

In Stock, Qty 11

0

69

Exmark 1-633701

SHEAVE,BLADE DRIVE

Note: Use antiseize on bore of sheaves

$81.99

$

In Stock, only 1 left!

0

70

Exmark 1-513016

BEARING

$82.99

$

In Stock, Qty 20+

0

71

Exmark 1-323532

103-8280
(Superseded to 103-8280)

$254.99

$

In Stock, only 3 left!

0

72

Exmark 1-323528

SPACER-BEARING

$9.49

$

In Stock, Qty 13

0

73

Exmark 1-633573

GUARD-BEARING, BOTTOM

$5.49

$

In Stock, Qty 8

0

74

Exmark 1-808502

32120-8
(Superseded to 32120-8)

$2.99

$

In Stock, Qty 16

0

75

Exmark 1-633942

SHAFT,SPINDLE 604

$80.99

$

In Stock, only 1 left!

0

76

Exmark 1-633483

103-2530-S
(Superseded to 103-2530-S)

$34.99

$

In Stock, Qty 20+

0

Exmark 1-613250

103-1580-S
(Superseded to 103-1580-S)

$36.99

$

In Stock, Qty 14

0

Exmark 1-613111

103-2510-S
(Superseded to 103-2510-S)

$38.99

$

In Stock, Qty 14

0

Exmark 1-613112

Blade, Mulching
(Superseded to 103-0301-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch Kit P/N MK604

$34.99

$

In Stock, Qty 20+

0

77

Exmark 1-634546

DK DR. BRG. ASSY

$512.99

$

Usually ships in 3-6 days

0

78

Exmark 1-634726

103-1081
(Superseded to 103-1081)

$264.99

$

In Stock, only 1 left!

0

Exmark 1-634772

103-1106
(Superseded to 103-1106)

Note: (26hp Koh)

$354.99

$

Usually ships in 3-6 days

0

Exmark MK604

Micro-Mulch Accessory

$

$

Currently unavailable

Exmark 1-850337

PAINT,SPRAY RED

$27.99

$

In Stock, Qty 16

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

$18.99

$

Usually ships in 3-6 days

0
