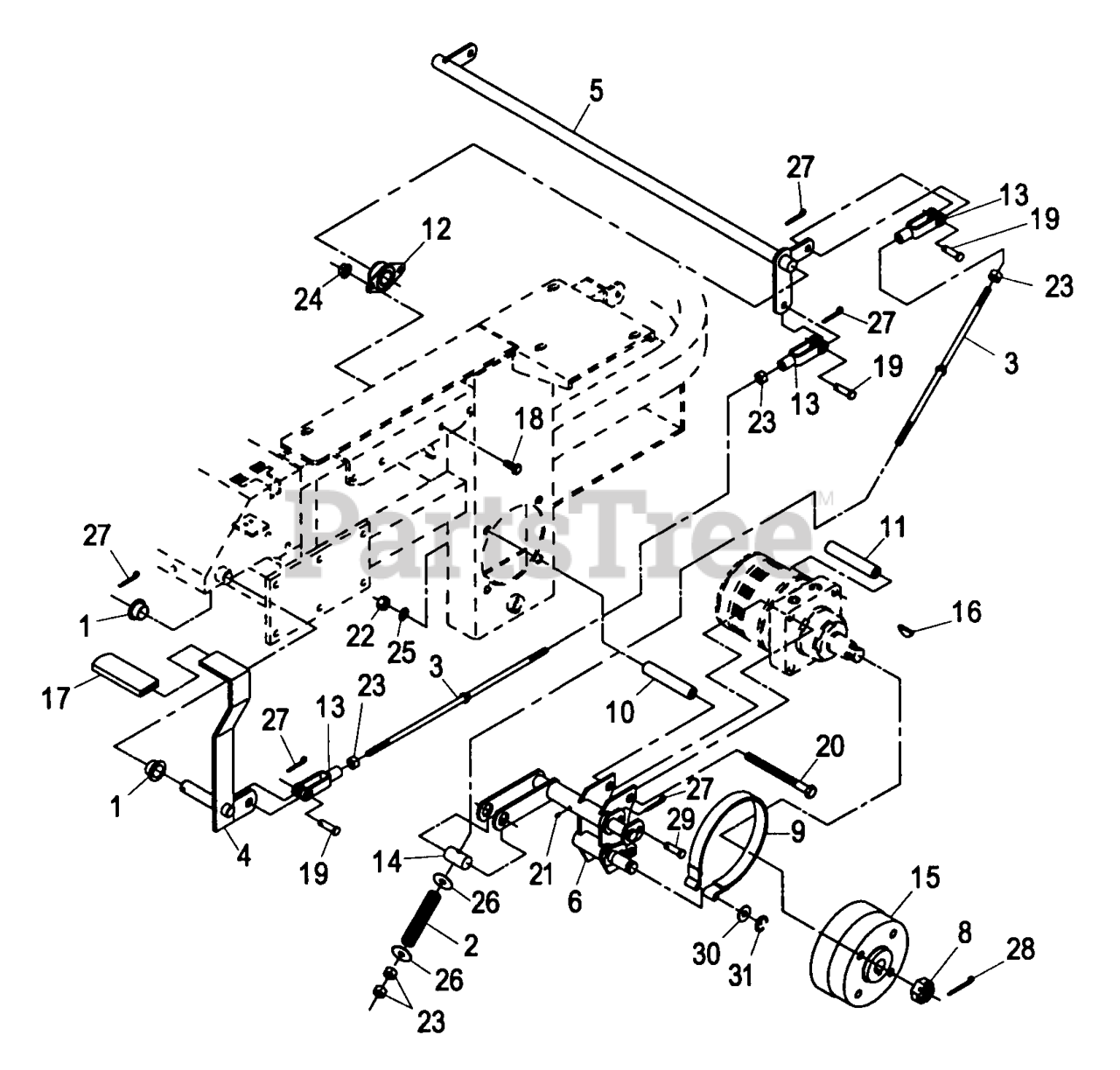

LZ25KC603 - Exmark 60" Lazer Z Zero-Turn Mower, 25hp Kohler (SN: 150000 - 189999) (1998) Park Brake Group Parts Diagram

60" Lazer Z Zero-Turn Mower, 25hp Kohler

Park Brake Group Parts Diagram

  • Title

1

Exmark 1-513140

BEARING-CONTROL

$6.49

$

In Stock, Qty 8

0

2

Exmark 1-633454

SPRING-BRAKE

$10.99

$

In Stock, only 1 left!

0

3

Exmark 1-633477

ROD-BRAKE

$19.99

$

In Stock, only 1 left!

0

4

Exmark 1-634500

BRAKE LEVER ASM

$74.99

$

Usually ships in 3-6 days

0

Exmark 1-632489-03

1-634500
(Superseded to 1-634500)

$74.99

$

Usually ships in 3-6 days

0

5

Exmark 1-632217-03

SHAFT-BRAKE

$169.99

$

Usually ships in 3-6 days

0

6

Exmark 1-632712-03

DISCONTINUED

$

$

Not available

Exmark 1-632714-03

WLD,BRACKET LH 52

$

$

Not available

7

Exmark 1-632713-03

WLD,BRACKET RH 60

Note: Not Illustrated

$

$

Not available

Exmark 1-632715-03

DISCONTINUED

$

$

Not available

8

Exmark 1-809036

NUT-HH

$37.99

$

In Stock, Qty 5

0

9

Exmark 1-633693

BAND,BRAKE

$76.99

$

Usually ships in 3-6 days

0

10

Exmark 1-633060

SPACER-WHEEL, SHORT

$14.99

$

Usually ships in 3-6 days

0

Exmark 1-633380

SPACER-WHEEL, SHORT

$8.49

$

Usually ships in 3-6 days

0

11

Exmark 1-633062

109-5012
(Superseded to 109-5012)

$28.99

$

Usually ships in 3-6 days

0

Exmark 1-633382

SPACER-WHEEL, LONG

$9.49

$

Usually ships in 3-6 days

0

12

Exmark 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

13

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 8

0

14

Exmark 1-633144

PIN-TRUNION

$13.99

$

Usually ships in 3-6 days

0

15

Exmark 1-633548

1-641337
(Superseded to 1-641337)

Note: Use anti-seize on hub bore.

$253.99

$

In Stock, only 1 left!

0

16

Exmark 1-807020

3257-42
(Superseded to 3257-42)

$6.49

$

In Stock, Qty 12

0

17

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, Qty 5

0

18

Exmark 1-800290

323-4
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

19

Exmark 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 5

0

20

Exmark 1-800334

325-20
(Superseded to 325-20)

$7.99

$

In Stock, Qty 20+

0

Exmark 1-800347

325-17
(Superseded to 325-17)

$5.99

$

In Stock, Qty 5

0

21

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.49

$

In Stock, Qty 8

0

Exmark 1-811007

1481
(Superseded to 1481)

$6.49

$

Usually ships in 3-6 days

0

22

Exmark 1-804509

3217-9
(Superseded to 3217-9)

$0.99

$

In Stock, Qty 19

0

23

Exmark 1-804525

3219-3
(Superseded to 3219-3)

$1.99

$

In Stock, Qty 20+

0

24

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

25

Exmark 1-805008

3253-7
(Superseded to 3253-7)

$1.49

$

In Stock, Qty 20+

0

26

Exmark 1-805260

3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

27

Exmark 1-806761

3272-10
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

28

Exmark 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 19

0

29

Exmark 1-808283

PIN,CLEVIS 3/8X2

$

$

Not available

30

Exmark 1-805269

3256-28
(Superseded to 3256-28)

$3.49

$

In Stock, Qty 20+

0

31

Exmark 1-808514

32151-48
(Superseded to 32151-48)

$1.99

$

In Stock, Qty 14

0
